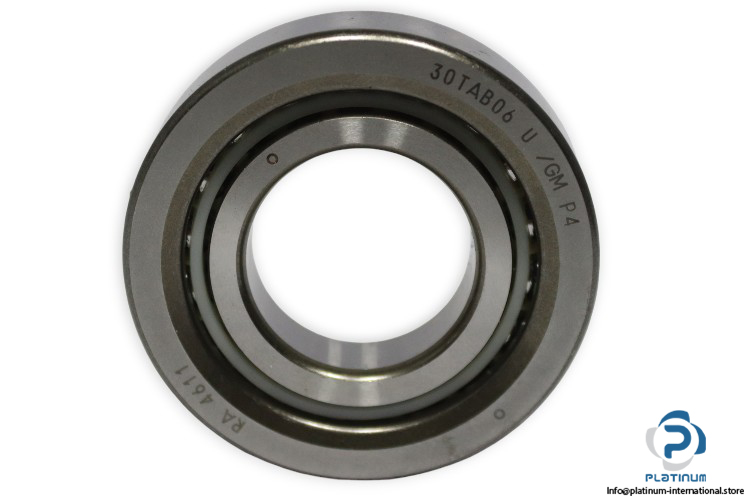

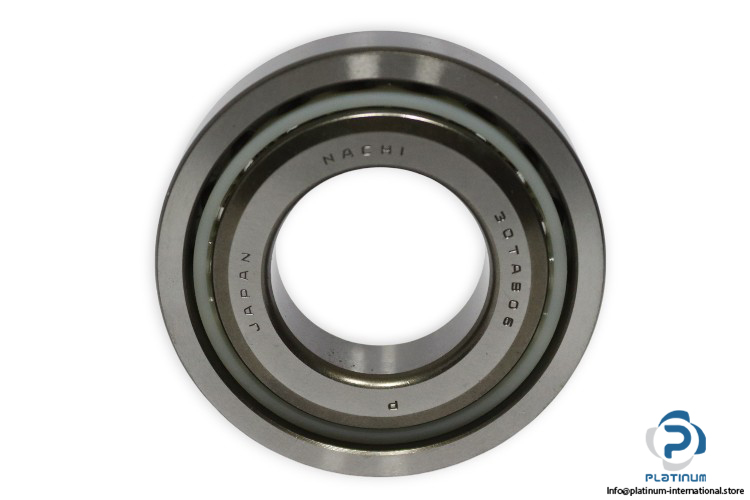

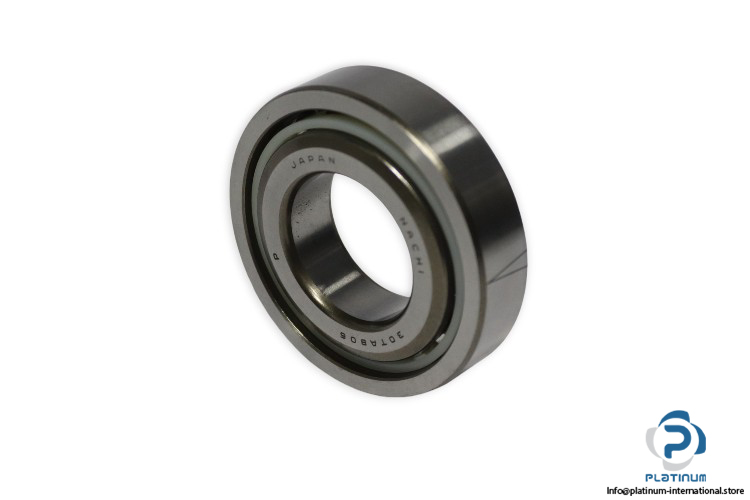

Nachi 30TAB06U/GM Angular Contact Ball Bearing

Name: NACHI 30TAB06U/GM ANGULAR CONTACT BALL BEARING
SKU: 1057399
Availability: LimitedAvailability

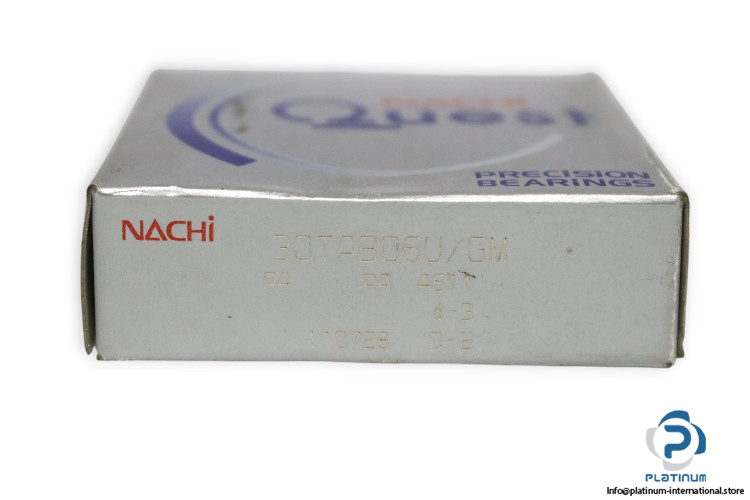

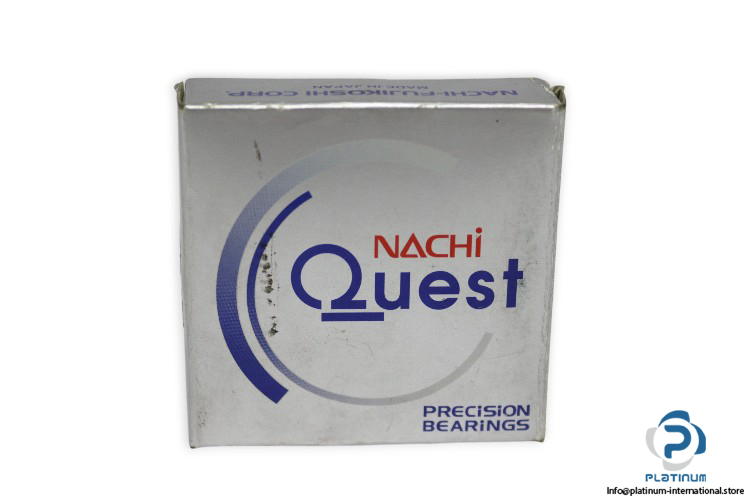

nachi-30TAB06U_GM-angular-contact-ball-bearing-(new)-carton

nachi-30TAB06U_GM-angular-contact-ball-bearing-(new)-carton-1

nachi-30TAB06U_GM-angular-contact-ball-bearing-(new)-carton-2

nachi-30TAB06U_GM-angular-contact-ball-bearing-(new)-carton-3

nachi-30TAB06U_GM-angular-contact-ball-bearing-(new)-carton-4

New

Available on request

Model: 30TAB06U-GM

Manufacturer:

NACHI

Type:

ANGULAR CONTACT BALL BEARING

Manufacturer

NACHI

SKU

1057399

Category

Angular Contact

Condition

New

30 Angular Ball bearing bearings mm Nachi

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: NACHI
Type: ANGULAR CONTACT BALL BEARING
Model: 30TAB06U-GM

Dimensions:
Bore Diameter d: 30 mm
Outer Diameter D: 62 mm
Total Width T: 15 mm
Dynamic Load Rating: 29 900 N
Static Load Rating: 38000 N
Permissible Axial load: 46400 N
Limiting Rotation Speed grease: 4650 1/min
Bearing type: TAP
Mounting code: U, Flush ground (single)
Preload code: GM, Medium preload (standard specifications)
Seal code: None, Open type
