Nadella LR 26 Lock NUT
New
Available on request
44,44$
Lock Nut
The Nadella LR26 Lock Nut features a 120 mm outside diameter, 750 Nm unlocking torque, and a maximum axial load of 308800 N, providing secure and efficient locking for industrial applications.120308800750AxialCapacityHighIndustrialLoadLocklockingLR26MechanicalmmNNadellaNmnutThreadedTorqueunlocking
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

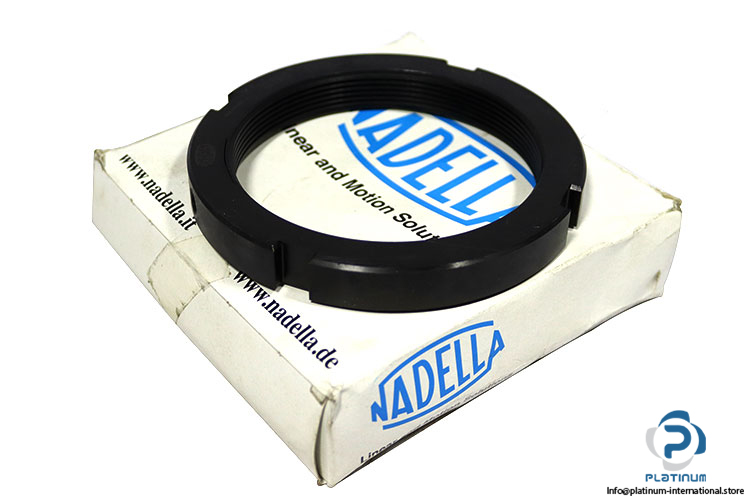

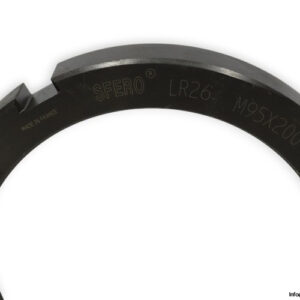

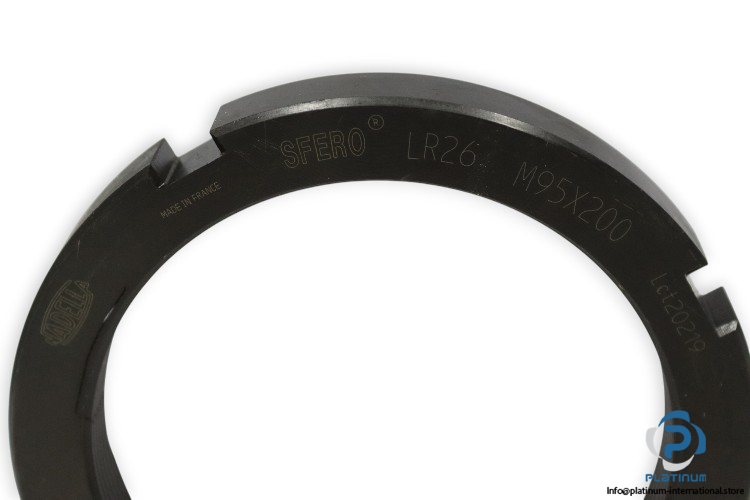

Nadella LR26 Lock Nut
The Nadella LR26 Lock Nut is designed for secure locking in industrial applications, offering a high axial load capacity and reliable performance under heavy-duty conditions. With its durable material and precise dimensions, this lock nut ensures efficient locking and stability in mechanical systems.
Manufacturer: Nadella
Type: LOCK NUT
Model: LR26
This Nadella LR26 Lock Nut is built for applications requiring high axial load resistance and secure locking capabilities. Its robust construction and precise fit make it an ideal choice for mechanical and industrial systems.

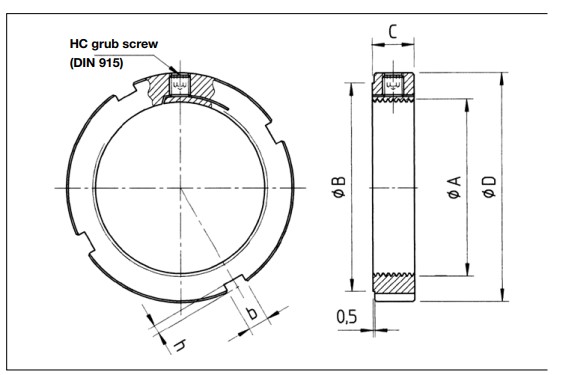

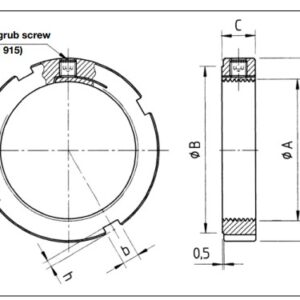

| Outside Diameter (D) | 120 mm |
| Bore Diameter (B) | 111 mm |
| Width (C) | 15 mm |
| bxh | 10x4 mm |
| Unlocking Torque | 750 Nm |
| Max Axial Load | 308800 N |
| Thread Designation | 95 x 2.00 |
