In stock1 unitReady to ship

111,11$

Lock Nut

The Nadella LR 26 Lock Nut provides secure fastening with a 95 x 2 thread designation, 750 Nm unlocking torque, and a maximum axial load capacity of 308,800 N, ensuring stability in mechanical applications.

Manufacturer
NADELLA
SKU
1057328
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

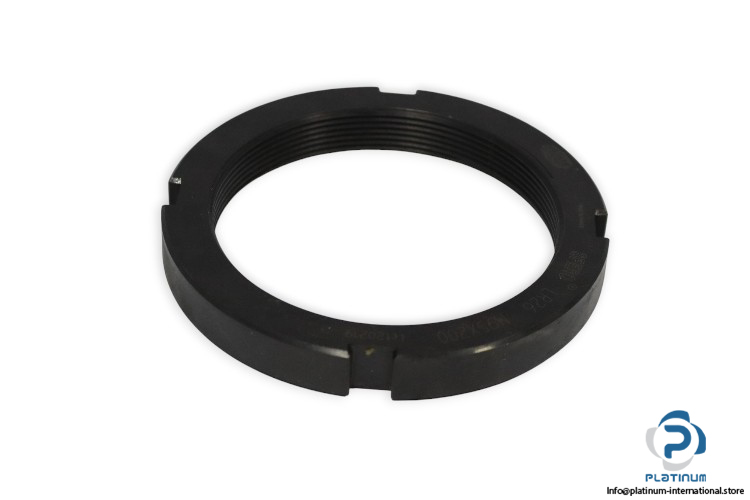

Nadella LR 26 Lock Nut

The Nadella LR 26 Lock Nut is a high-precision component designed for secure fastening in mechanical and bearing applications. With a robust thread designation of 95 x 2 and a maximum axial load capacity of 308,800 N, this lock nut ensures stability and reliable performance in high-torque conditions.

Manufacturer: Nadella

Type: Lock Nut

Model: LR 26

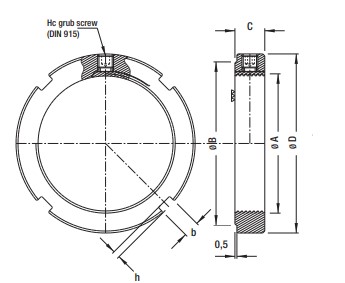

Outside Diameter (D)120 mm
Bore Diameter (B)111 mm
Width (C)15 mm
bxh10 x 4 mm
Unlocking Torque750 Nm
Max Axial Load308,800 N
Thread Designation95 x 2
Items Per Set2
