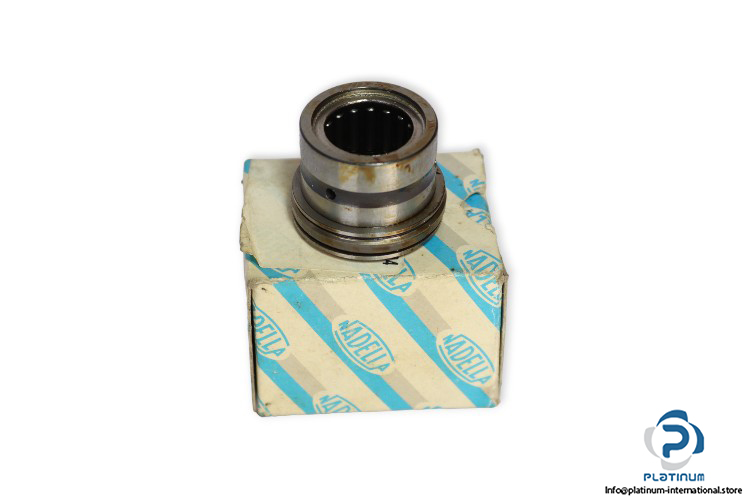

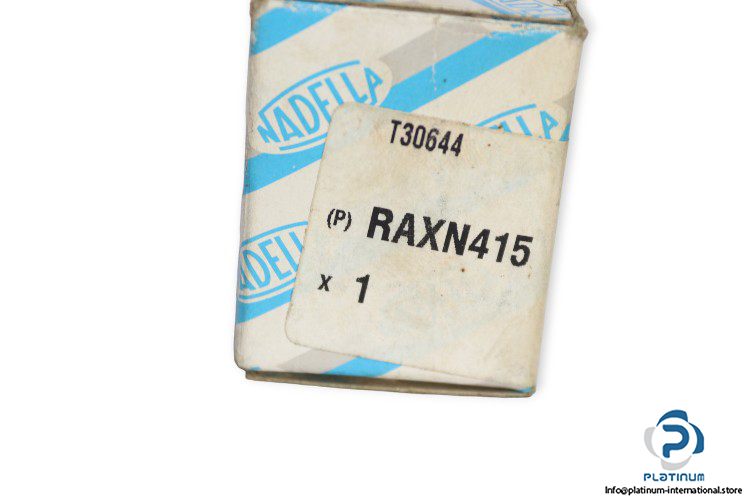

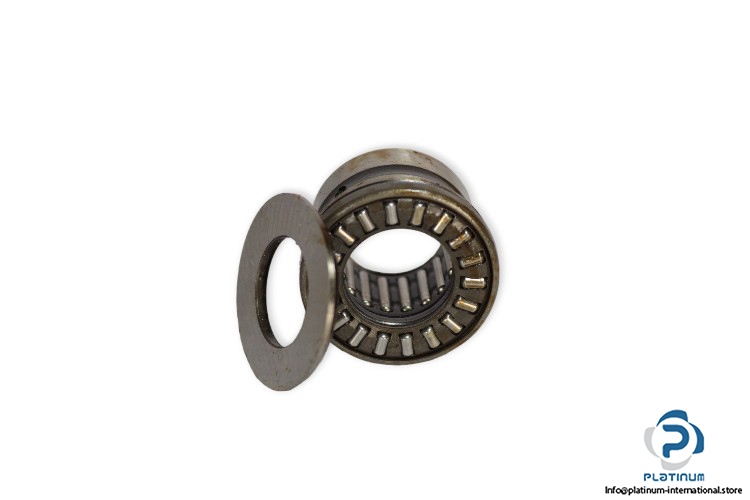

Nadella RAXN415 Needle Roller Bearing
Manufacturer: NADELLA
Type: Combined needle bearings
Model: RAXN 415

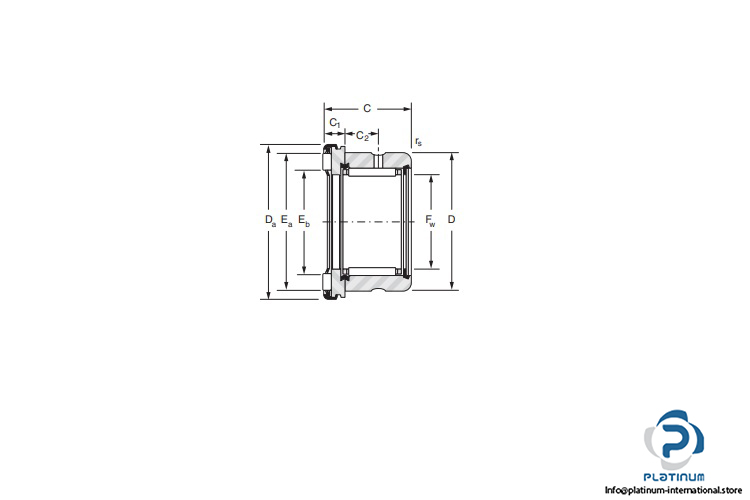

Dimensions
Diameter under rollers Fw: 15 mm
Outer diameter D: 24 mm
Width outer ring C: 19 mm
Da: 28 mm
Eb: 17 mm
Ea: 24.6 mm
C1: 5 mm
C2: 6 mm
rs min: 0.35 mm
Load Ratings (Radial):
Dynamic C: 9660 N
Static Co: 12600 N
Load Ratings (Axial):
Dynamic C: 7600 N
Static Co: 20800 N
Speed Rating: 11500 N
Inner ring: 4 JR 12x15x16
Thrust plate:
Thin: CP 15 28
Thick: CP 2 15 28
