Nagano Keiki CB13-043 Pressure Switch
New
In stock1 unitReady to ship
Pressure Switch
NAGANO KEIKI CB13-043 pressure switch with 5“50 kgf/cm² range, G1/2 threaded connection, and dual N.O./N.C. contact functions for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

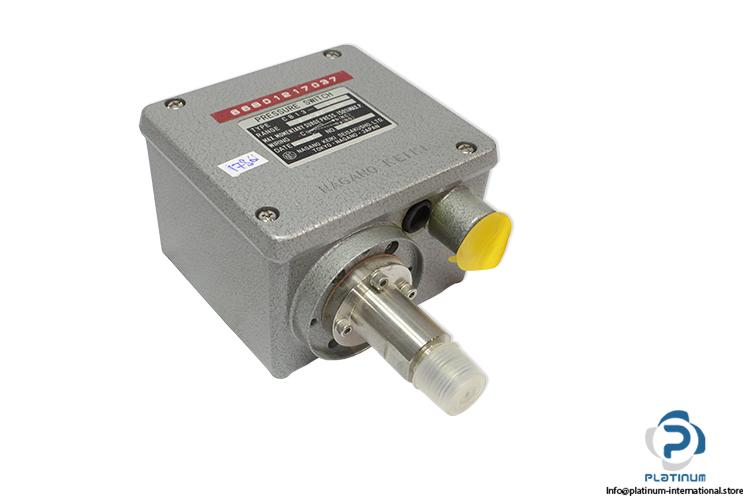

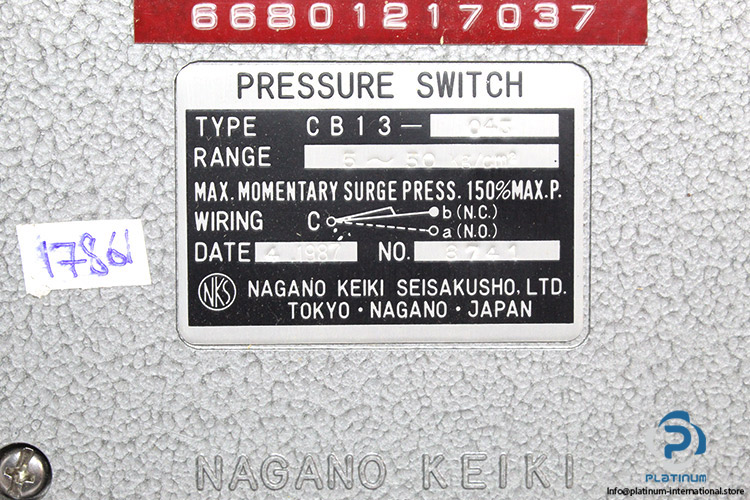

NAGANO KEIKI CB13-043 Pressure Switch
The NAGANO KEIKI CB13-043 is a robust industrial pressure switch designed for accurate pressure monitoring and reliable switching performance. Built for demanding environments, it supports both normally open and normally closed contact functions and offers stable operation across a wide temperature range.
Manufacturer: NAGANO KEIKI
Type: Pressure Switch
Model: CB13-043
Part No.: 6741
Code: 66801217037
Series: CB13
Contact Function:

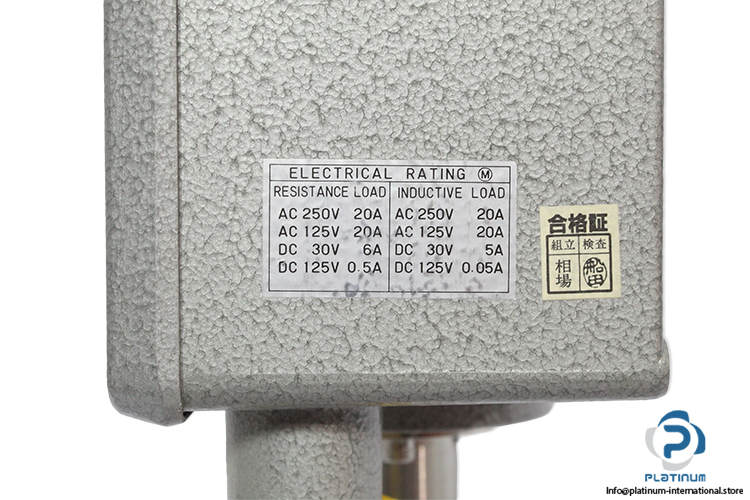

Electrical Ratings “ Resistance Load:
AC 250 V “ 20 A
AC 125 V “ 20 A
DC 30 V “ 6 A
DC 125 V “ 0.5 A
Electrical Ratings “ Inductive Load:
AC 250 V “ 20 A
AC 125 V “ 20 A
DC 30 V “ 5 A
DC 125 V “ 0.05 A
| Pressure Range | 5 “ 50 kgf/cm² |
| Maximum Momentary Surge Pressure | 150% of Max. Pressure |
| Positive Pressure Gauge | 0.04 “ 0.4 MPa |
| Connection | Threaded G1/2 |
| Temperature Range | -30 to 100 °C |
| b | Normally Closed (N.C.) |
| a | Normally Open (N.O.) |
