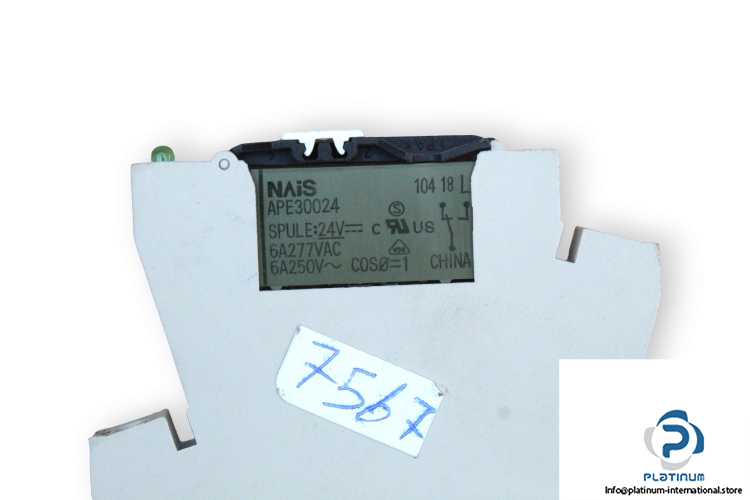

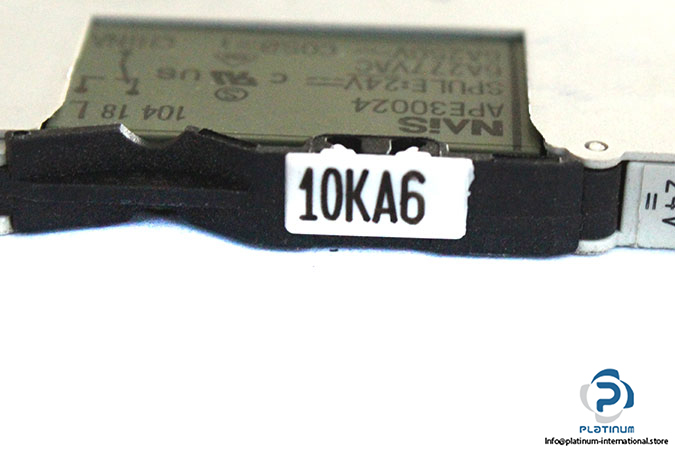

Nais APE30024 Slim Power Relay
Manufacturer: NAIS
Type: SLIM POWER RELAY
Model: APE30024
Voltage: 24 V DC
Contact Configuration: 1 Changeover
contact Voltage: 250 V AC
Contact Current: 6 A
Switching Power: 1500 VA
Operating temperature: -40 … 85 °C
Dimension: 28 X 5 X 15 mm

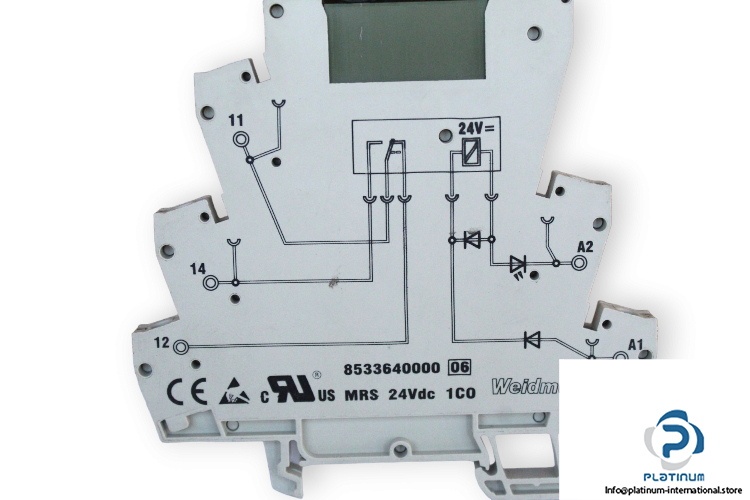

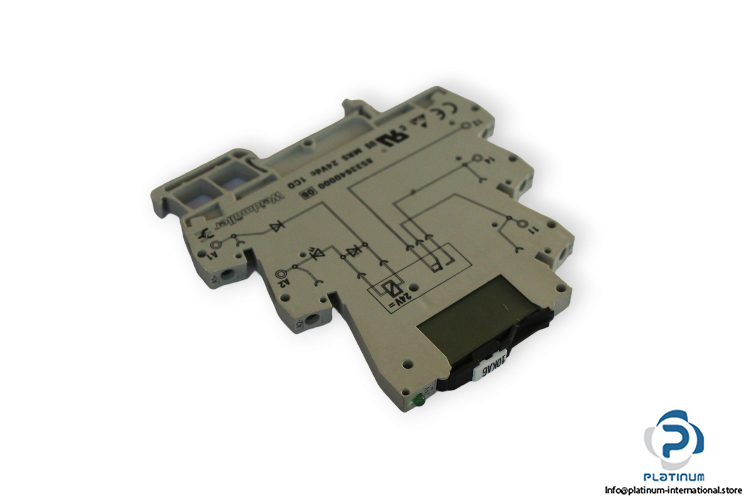

WEIDMULLER MRS 24VDC 1CO MICRORELAY MODULE
Manufacturer: Weidmuller
Type: MicroRelay Module
Model: MRS 24VDC 1CO
Order No: 8533640000
Rated Control Voltage: 24 V DC
Current: 6 A
Power: 160 mW
Contact Configuration: 1 Changeover (CO)
Contact Voltage: 250 V AC/DC
Switching Capacity: 1500 VA
Switch on Delay: 6.6 ms
Operating Temperature: -25 … 55 °C
Degree of protection: IP20
Dimensions: 94 X 93 X 6.1 mm
