Nash-Elmo G200 2BH1500-7AH16 Side Channel Blower
Used
Available on request
1 399,99$
Side Channel Blower
NASH-ELMO G 200 2BH1500-7AH16 Side Channel Blower is a high-performance industrial blower designed for applications requiring reliable vacuum and pressure capabilities. With multi-frequency operation, high-speed performance, and robust insulation, it ensures efficiency in demanding environments.1.32.128005000ANDblowerC2channelHigh-EfficiencyHigh-SpeedIndustrialIP55kWMidPreloadPressurepumprpmsidevacuum
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

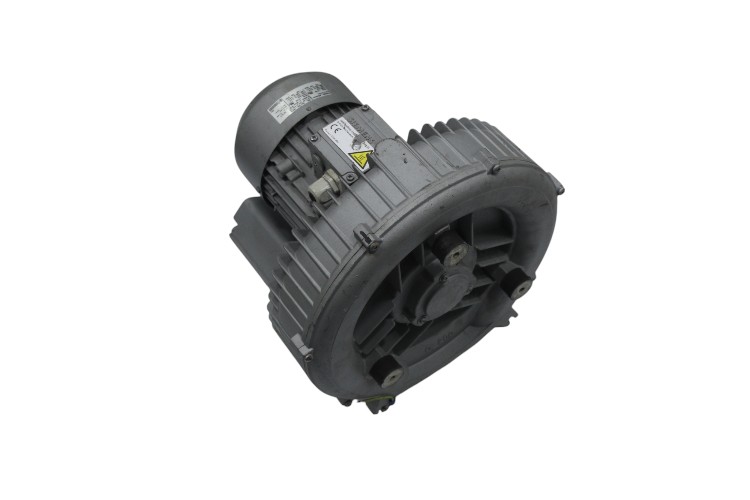

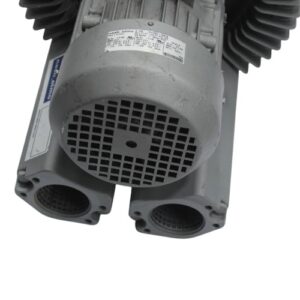

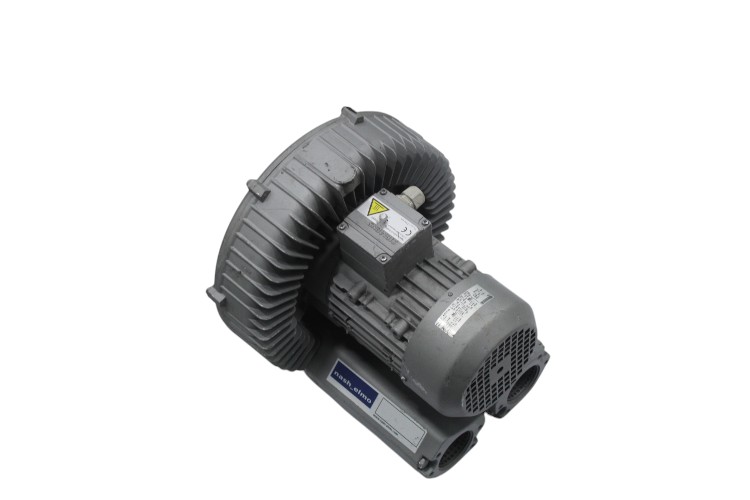

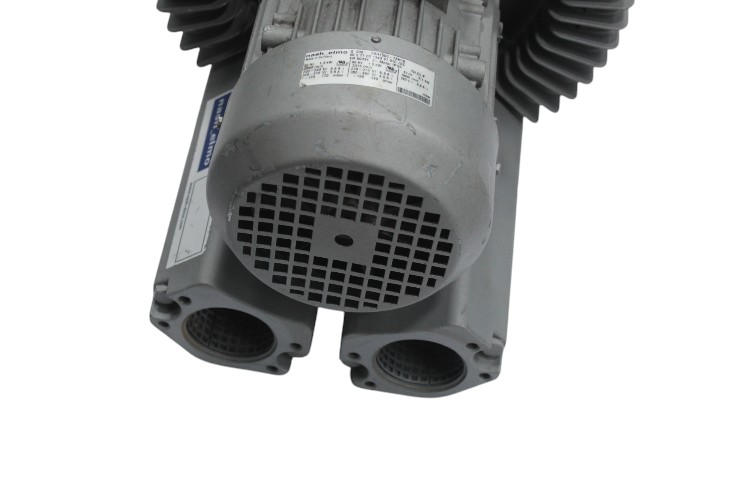

NASH-ELMO G 200 2BH1500-7AH16 Side Channel Blower
The NASH-ELMO G 200 2BH1500-7AH16 Side Channel Blower is a high-performance industrial blower designed for applications requiring reliable vacuum and pressure capabilities. Engineered for efficiency and durability, this unit delivers consistent performance across various frequencies with high-speed operation and robust protection features.
- Manufacturer: NASH-ELMO
- Type: Side Channel Blower
- Model: G 200 2BH1500-7AH16
- Part No: T700 1343 91 010 /05

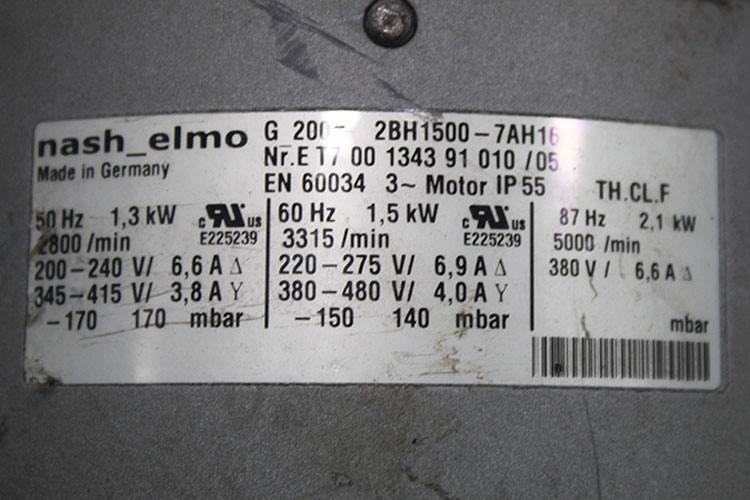

Technical Specifications
At 50 Hz:
- Rated Voltage: 220 “ 240 V Delta / 345 “ 415 V Star
- Rated Speed: 2800 RPM
- Pressure Range: -170 “ 170 mbar
- Rated Power: 1.3 kW
- Rated Current: 6.6 / 3.8 A
At 60 Hz:
- Rated Voltage: 220 “ 275 V Delta / 380 “ 480 V Star
- Rated Speed: 3315 RPM
- Pressure Range: -150 “ 140 mbar
- Rated Power: 1.5 kW
- Rated Current: 6.9 / 4 A
At 87 Hz:
- Rated Voltage: 380 V
- Rated Speed: 5000 RPM
- Rated Power: 2.1 kW
- Rated Current: 6.6 A
- Insulation Class: F
- Protection Class: IP55
