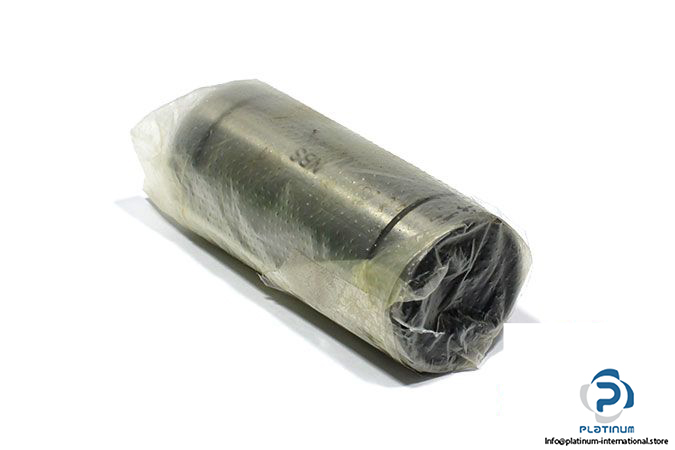

NBS KBL2080PP Closed Linear Ball Bushing

Manufacturer: NBS

Type: Linear Ball Bushing

Model: KBL 20 80 PP

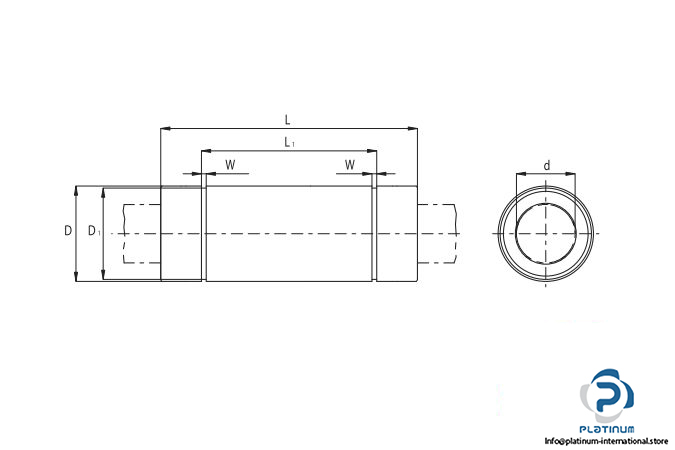

Dimensions:

Inner diameter d: 20 mm

Outer diameter D: 32 mm

Length L: 80 mm

L₁: 61 mm

Design type: Closed

Rows of Balls: 5

Dynamic load rating C: 1400 N

Static load rating: 2750 N

Cage material: polyamide cage

Seals: PP, seals on both sides

Weight: 0.18 kg
