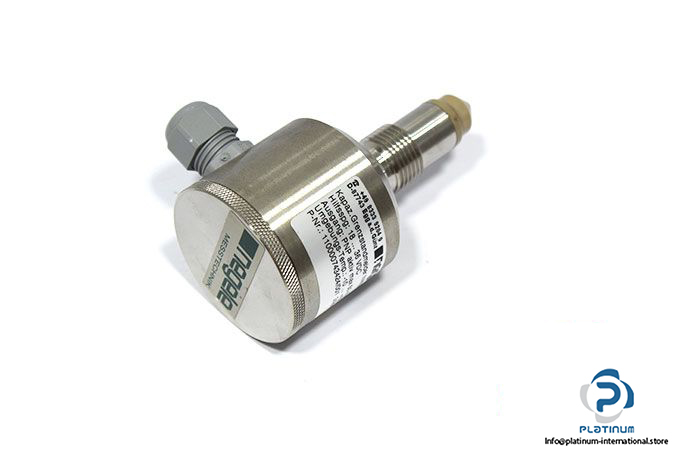

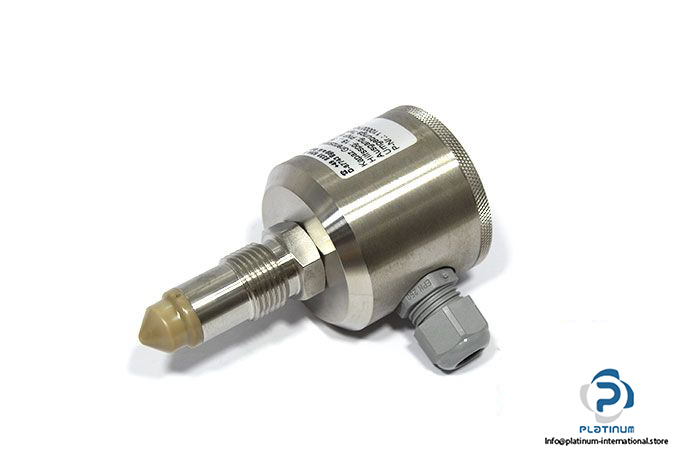

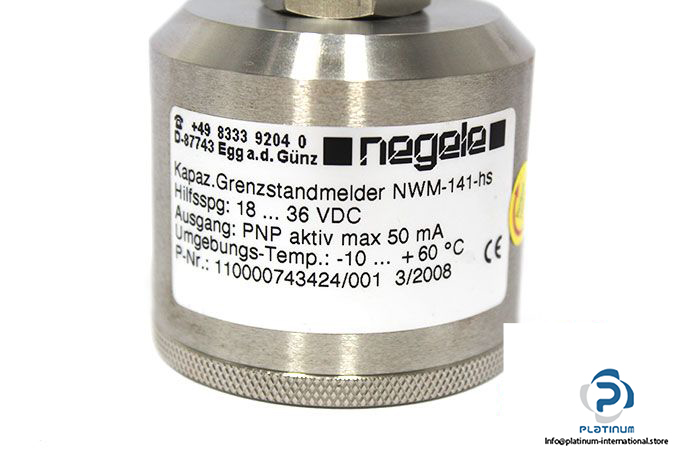

Negele NWM-141-HS Capacitive Level Monitor

Manufacturer: Negele ‎

Type: Capacitive Level Monitor Vibration switch adapter

Model: NWM-141-HS

Application Examples • Detection of the filling level of liquids in vessels or pipes

• Full / empty monitoring in vessels

• Product monitoring in pipes

• Pump / dry running protection

• Detection of syrup and fruit concentrate in fruit preparation

Function: full / empty signal

Time delay: 0,1s

Auxiliary voltage: 18…36VDC (<_20mA)
Operating pressure: max. 10bar

Output: PNP (active 50mA)

– Optional: NPN (max. 50mA)*** Short circuit-proof

Transmission power: Measuring signal <_1mW
Process connection: G1/2”

Materials:

– Connecting head SS (1.4305)

– Connecting piece SS (1.4305)

– Coupling pc. nwm-141 PEEK

Weight: kg
