Neles Controls NE724/S1 Electro-Pneumatic Positioner
Used
In stock2 unitsReady to ship
599,99$
Electro-Pneumatic Positioner
High-performance electro-pneumatic positioner with 4“20 mA or 0“20 mA input, IP54 protection, and 800 kPa supply capability. Designed for precise valve control, stable operation, and reliable performance in demanding industrial environments.accessoryActuatorAutomationControlDeviceElectroEquipmentIndustrialNelesPneumaticPositionerProcessValmetValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Neles Valmet NE724/S1 Electro-Pneumatic Positioner
The NE724/S1 Electro-Pneumatic Positioner from Neles Controls / Valmet is a high-precision control device designed for accurate valve positioning in demanding industrial automation environments. Engineered to deliver stable performance, fast response, and long operational life, it ensures optimized control in process systems requiring precise actuator movement and reliable feedback.
Manufacturer: Neles Controls / Valmet
Type: Electro-Pneumatic Positioner
Model: NE724/S1
Series: NE

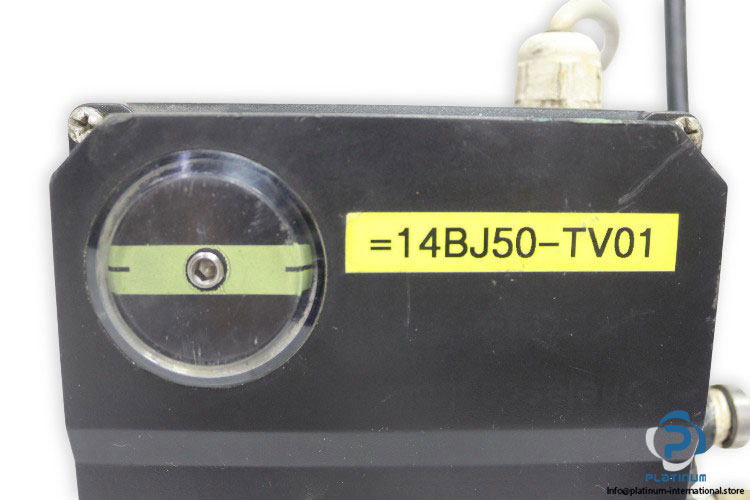

Code: 14BJ50-TV01
Construction Materials

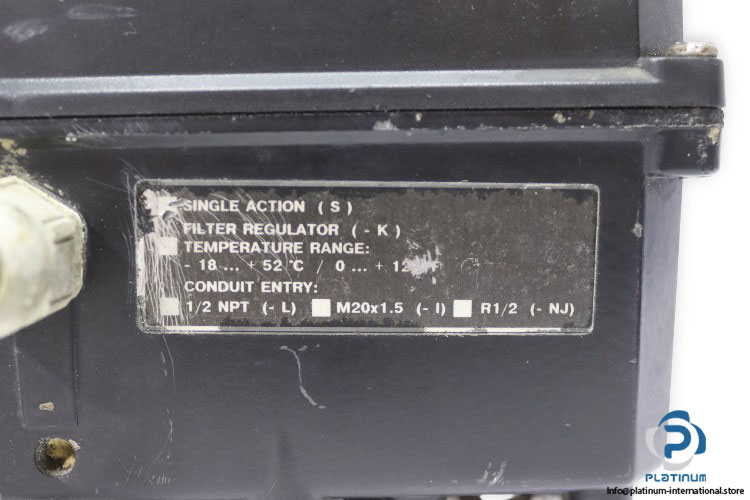

Conduit Entry Options
1/2 NPT (-L)
M20x1.5 (-I)
R1/2 (-NJ)

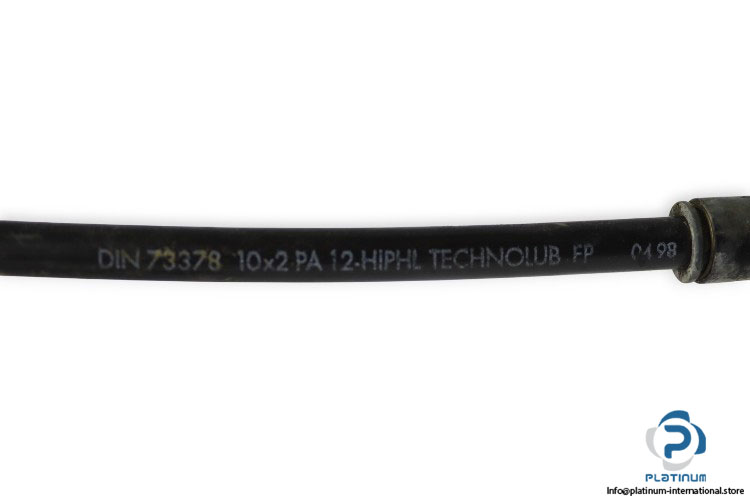

Cable Marking
DIN 73378
10×2 PA 12-HIPHL TECHNOLUB FP
04 98
| Electrical Input Signal | 4 to 20 mA DC / 0 to 20 mA DC |
| Resistance | 190 ohm |
| Max. Supply Pressure | 800 kPa / 115 psig |
| Enclosure Protection | IP54 / ENCL. 3R |
| Ambient Temperature | -25 to +85°C |
| Filter Regulator Temperature Range | -25°C to +85°C |
| Action Type | Single Action (S) |
| Actuator Stroke Volume | 1.0 to 8.0 liter |
| Air Consumption | 0.9 / 0.5 nm3/h / scfm |
| Case | anodized Al alloy |
| Cover | polycarbonate |
| Internal Parts | stainless steel, aluminum alloy, stainless spring steel |
| Diaphragms and Seals | nitrile rubber |
