Netter Vibration NTS 250 NF Pneumatic Linear Vibrator
New
In stock1 unitReady to ship
Pneumatic Linear Vibrator
NETTER VIBRATION NTS 250 NF Pneumatic Linear Vibrator ensures efficient material flow, compaction, and conveying with a nominal frequency of 2,328 to 3,894 min»¹. Designed for industrial applications, it delivers a centrifugal force of 119 to 251 N while operating within 2 to 6 bar pressure. Built from aluminium for durability, it features G 1/8 & G 1/4 ports for easy pneumatic connection.1/8250air-drivenAluminiumCompactingconnectionEquipmentflowGhigh-frequencyIndustrialLinearmaterialNetterNFNTSPneumaticSystemVibratingVibrationVibrator
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

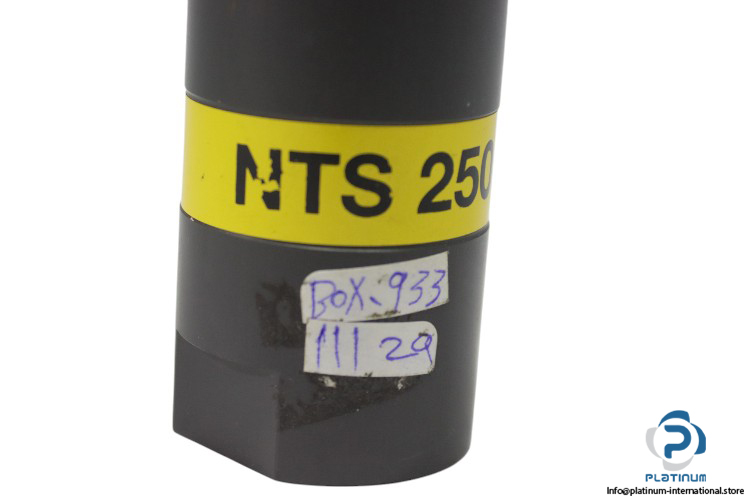

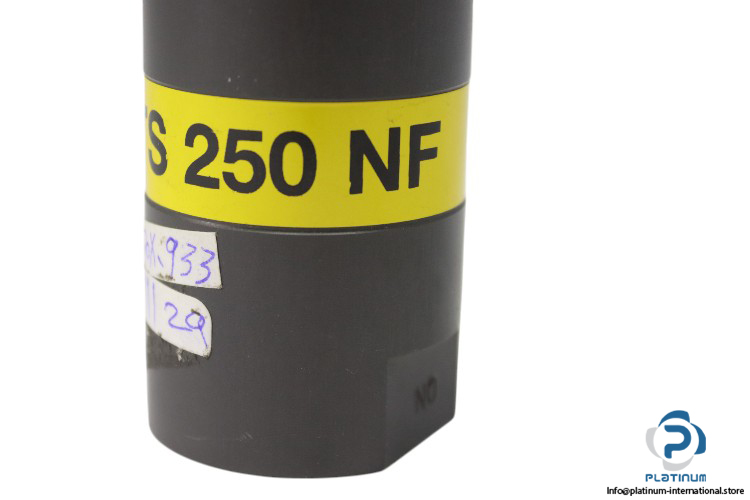

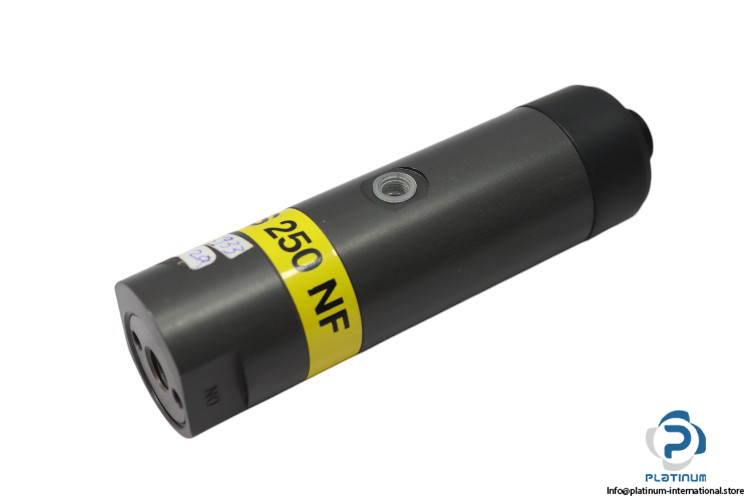

NETTER VIBRATION NTS 250 NF Pneumatic Linear Vibrator
The NETTER VIBRATION NTS 250 NF Pneumatic Linear Vibrator is designed for precise and efficient material flow, compacting, and conveying applications. Built for high performance and reliability, this vibrator operates with compressed air, making it ideal for industrial settings requiring consistent vibration output.
Manufacturer: NETTER VIBRATION
Type: Pneumatic Linear Vibrator
Model: NTS 250 NF
| Pressure Max. | 2 / 6 bar |
| Nominal Frequency | 2,328 / 3,894 min»¹ |
| Centrifugal Force | 119 / 251 N |
| Unbalance | 0.402 / 0.542 cm/kg |
| Air Consumption | 20 / 99 l/min |
| Sound Level | 68 / 72 dB (A) |
| Material | Aluminium (AL) |
| Port Size | G 1/8 & G 1/4 |
| Dimensions (L × D) | 141 × 41.5 mm |
