Neugart PLE040-005-SSSB3AB-E9/20/40/63/B5/M5 Planetary Gearbox

Name: NEUGART PLE040-005-SSSB3AB-E9/20/40/63/B5/M5 PLANETARY GEARBOX
SKU: 1096936
Availability: LimitedAvailability

neugart-PLE040-005-SSSB3AB-E9204063B5M5-right-angle-gearbox(new)

neugart-PLE040-005-SSSB3AB-E9204063B5M5-right-angle-gearbox(new)-1

neugart-PLE040-005-SSSB3AB-E9204063B5M5-right-angle-gearbox(new)-2

neugart-PLE040-005-SSSB3AB-E9204063B5M5-right-angle-gearbox(new)-3

neugart-PLE040-005-SSSB3AB-E9204063B5M5-right-angle-gearbox(new)-4

neugart-PLE040-005-SSSB3AB-E9204063B5M5-right-angle-gearbox(new)-5

New

In stock6 unitsReady to ship

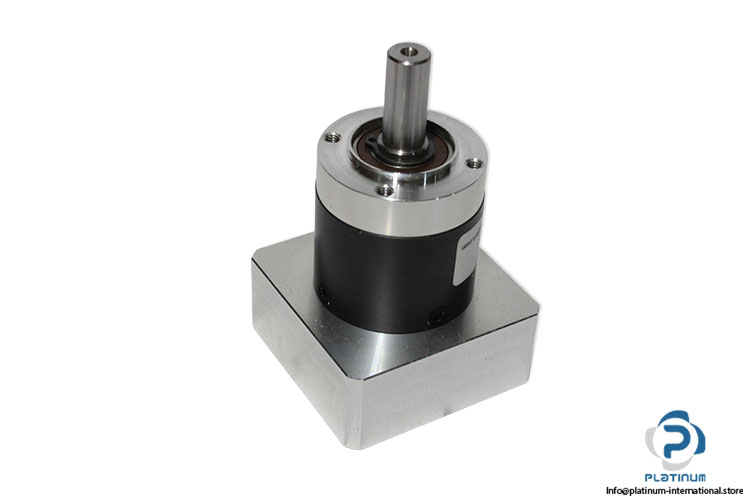

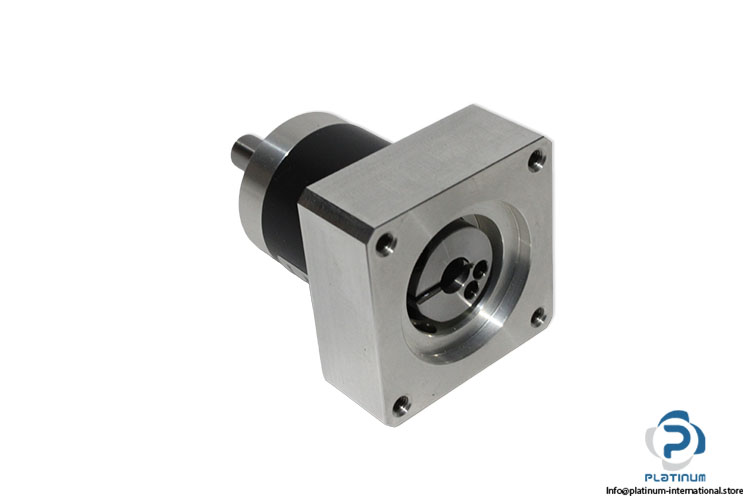

NEUGART Planetary Gearbox NEUGART PLE040-005-SSSB3AB-E9/20/40/63/B5/M5 precision planetary gearbox featuring 5:1 ratio, single-stage design, low backlash, IP54 protection, 40 mm frame size, and quiet operation for motion control and industrial automation systems. Frame Size: 40 Ratio: 5 Single Stage Planetary Gearbox Standard Backlash: 15 – 22 arcmin Protection Class: IP54 Running Noise: 58 dB(A)

Manufacturer

NEUGART

SKU

1096936

Category

Servo Gearboxes

Condition

New

Automation Backlash Control G Gear Gearbox Industrial low Motion Neugart Planetary PLE Precision Reducer Series Servo Single Stage Transmission

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Series	PLE
Art-No.	100341202
F-No.	2445455-1-006
Frame Size	40
Number of Stage	1
Ratio	5
Shaft [mm]	10
Hollow Shaft [mm]	9
Flange Diameter [mm]	55
operating temperature	-25 / 90 °C
Protection class	IP54
Standard backlash	15 - 22 arcmin
Torsional stiffness	0.7 - 1.0 Nm /arcmin
Gearbox weight	0.4 - 0.5 kg
Running noise	58 dB(A)
Stock Key	JO-004
Condition	New
SKU	1096936
Weight	0,5
