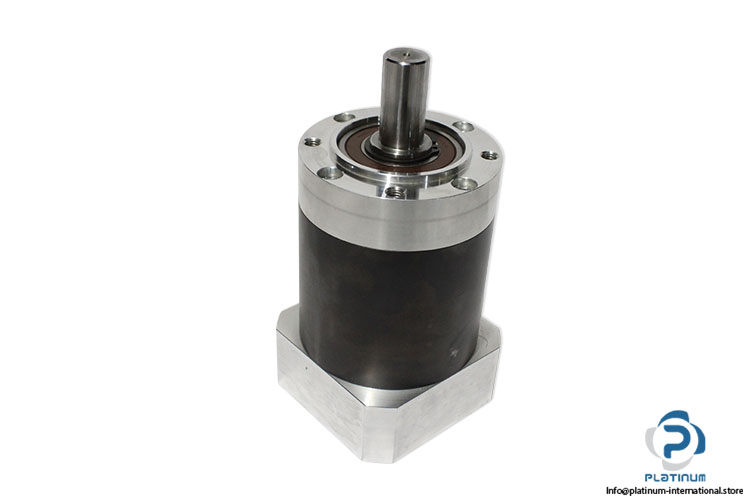

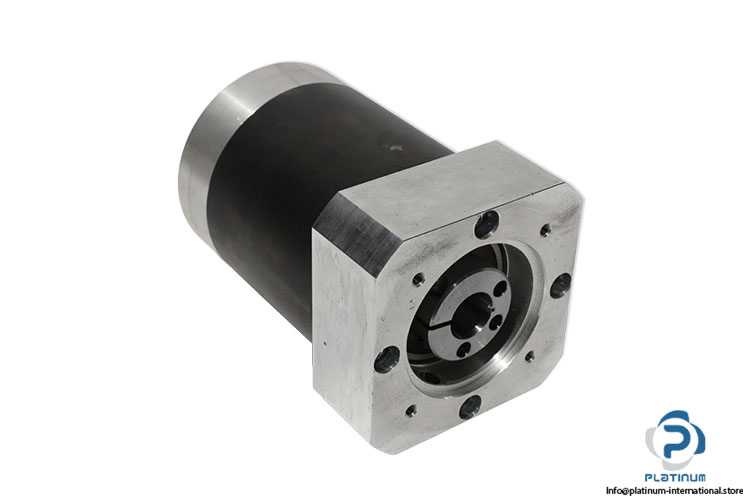

Neugart PLE120-060-SSSB3AF-E19/40/80/100/B5/M6 Planetary Gearbox
New
In stock1 unitReady to ship
NEUGART Planetary Gearbox NEUGART PLE120-060-SSSB3AF-E19/40/80/100/B5/M6 precision planetary gearbox featuring 60:1 ratio, two-stage design, 9 arcmin backlash, IP54 protection, 120 frame size, and high torsional stiffness for demanding industrial automation and servo applications.
Frame Size:
120
Ratio:
60
Stages:
2
Protection:
IP54
Backlash:
9 arcmin
Running Noise:
65 dB(A)
AutomationBacklashComponentsControlDriveGearGearboxGearboxesIIndustrialInlinelowMotionmotorNeugartPlanetaryPLEPrecisionReducerSeriesServoTransmission
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | PLE |

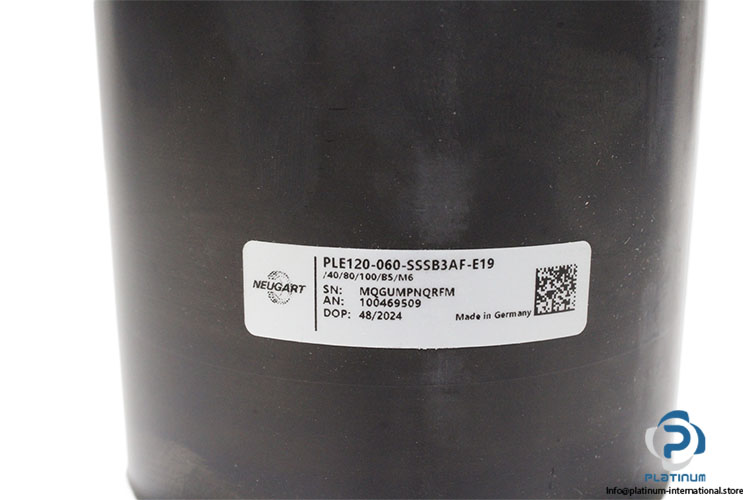

| SN | MQGUMPNQRFM |
| AN | 100469509 |
| Frame Size | 120 |
| Number of Stage | 2 |
| Ratio | 60 |
| Shaft [mm] | 25 |
| Hollow Shaft [mm] | 24 |
| Flange Diameter [mm] | 115 |
| operating temperature | -25 / 90 °C |
| Protection class | IP54 |
| Standard backlash | 9 arcmin |
| Torsional stiffness | 17.5 - 22.0 Nm /arcmin |
| Gearbox weight | 7.3 - 7.5 kg |
| Running noise | 65 dB(A) |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1096967 |
| Weight | 9,25 |
