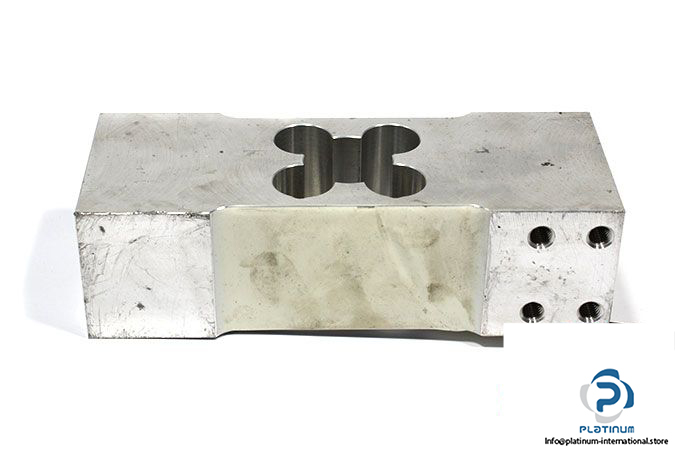

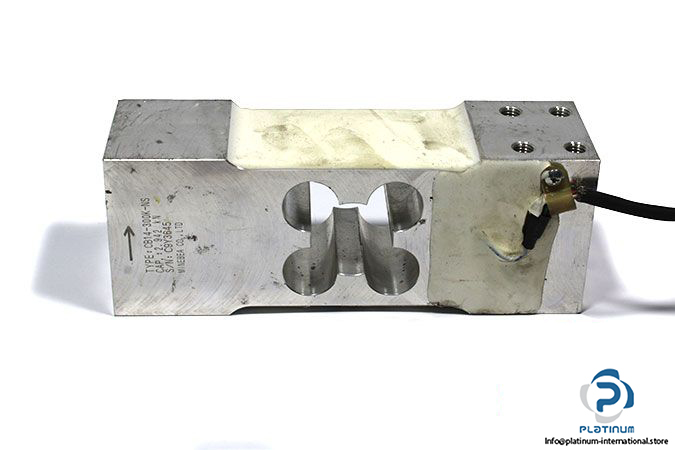

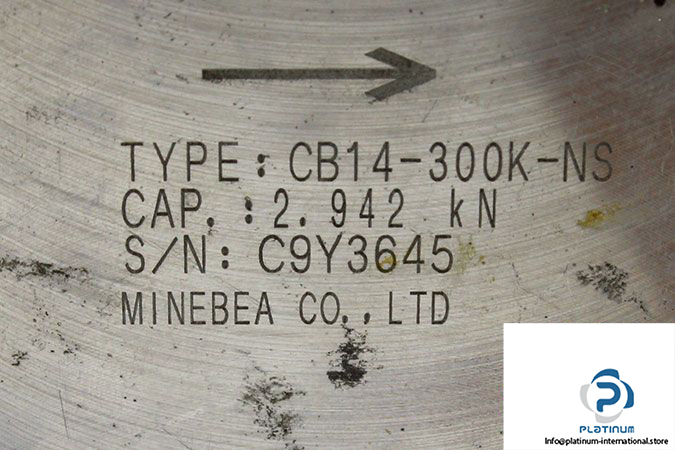

NMB CB14-300K-NS MAX 300 KG Single Point Load Cell

Manufacturer: Minebea

Type: Single Point Load Cell

Model: CB14-300K-NS

Maximum weight limit (E max): 300 kg (2.942 N)

Rated Output: 2.2 mV/V

Recommended Excitation: 12 V or less

Max. Excitation: 16 V

Input Terminal Resistance: 405 Ω± 10 Ω

Output Terminal Resistance: 350 Ω± 5 Ω

Temperature: -10…50 °C

Protection Class: IP64

Weight: 1.24 kg
