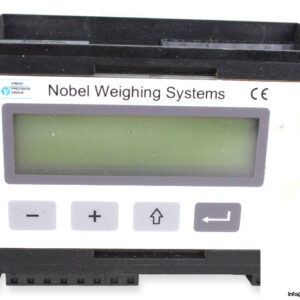

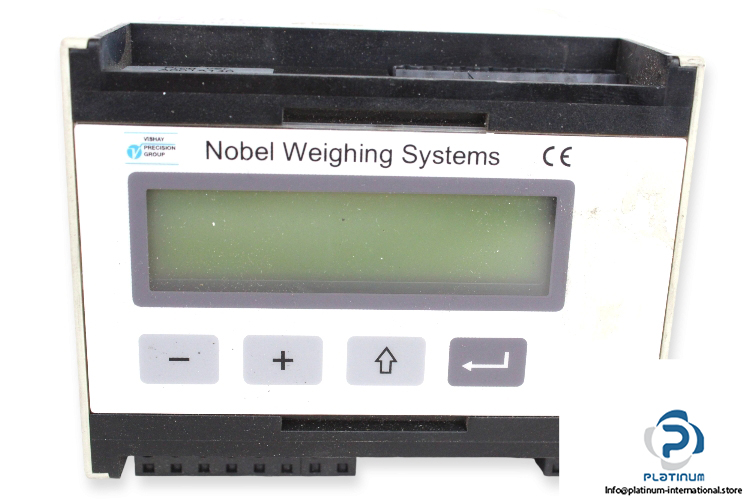

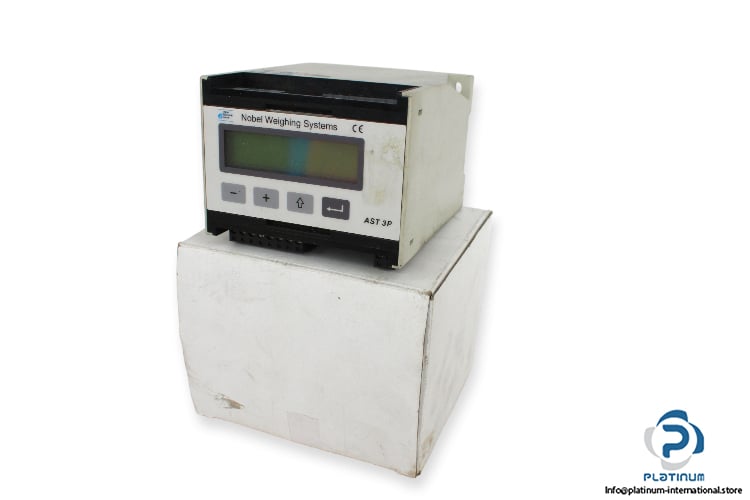

Nobel Weighing AST 3P Transmitter

Manufacturer: Nobel Weighing

Type: Transmitter

Model: AST 3P

Art. No.: 110170

Supply voltage: 24 V DC ± 20%

Power Consumption: 7 W

Interface: RS-485

No. of Digital Inputs (DI): 2

Analog Output: 16-bit, 0 … 10 or ±1 0 V DC

Input load: 24 VDC, 6 mA

Outputs: 2 Relay, max. 1 A, 30 V AC

Resolution: 8,300,000 counts

Display Type and Size: 2× 6-character LCD display with backlight

Protection degree: IP20

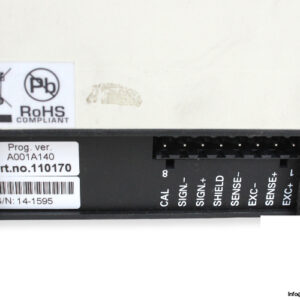

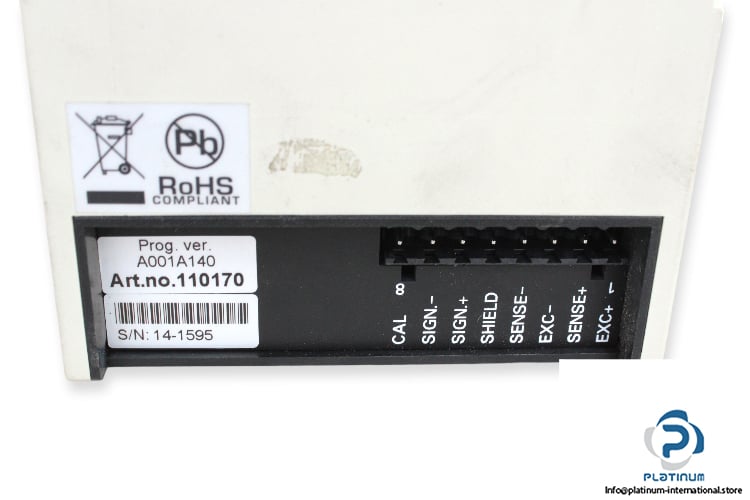

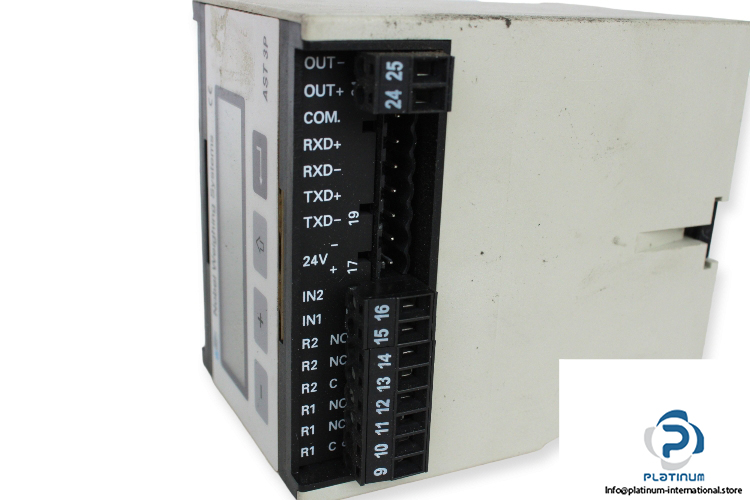

Connector Type: Plug-in screw terminals

Operating Temperature: -10 … +50°C

Dimensions: 75 × 100 × 110 mm
