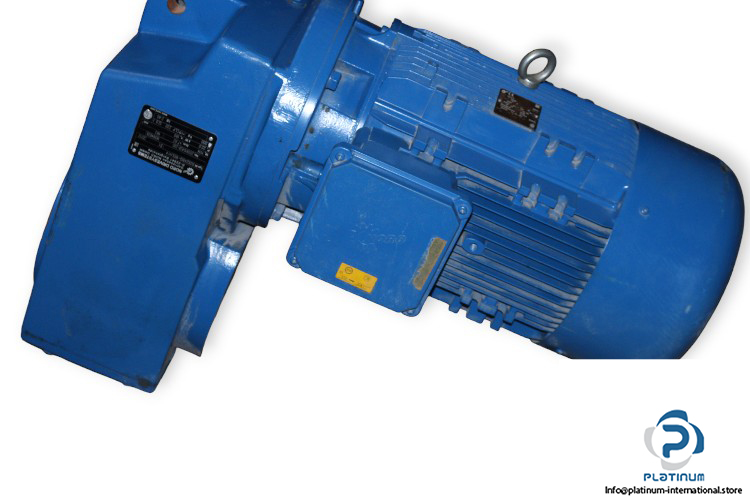

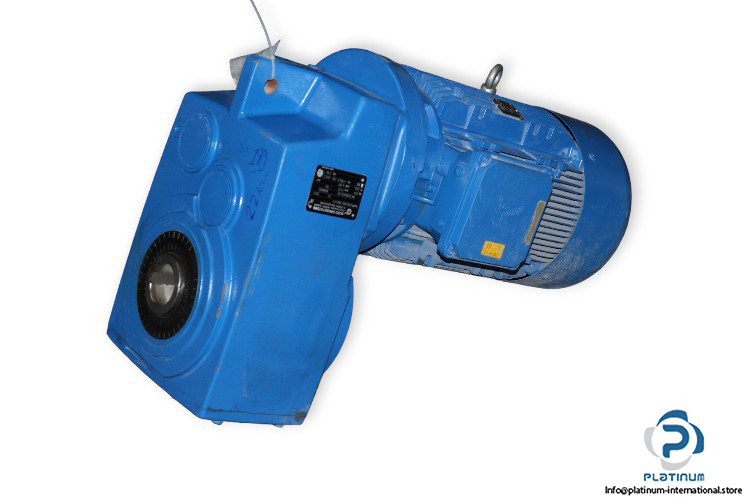

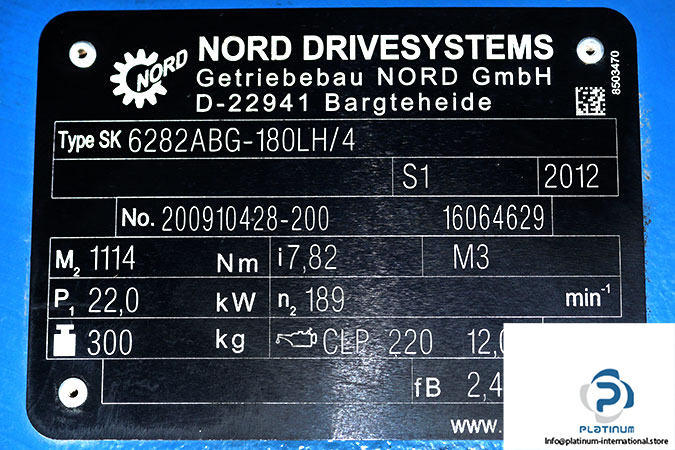

Nord SK 6282ABG-180LH/4 Gear Motor

Manufacturer: Nord
Type: Gear Motors
Model: SK6282ABG-180LH/4

Ratio [i]: 7.82
Output Speed [rpm]: 189
Rated Power [kW]: 22.0
Rated Torque [Nm]: 1114
Mounting Position [IM]: M3
Duty: S1
Oil: CLP 220
Quantity [L]: 12.0

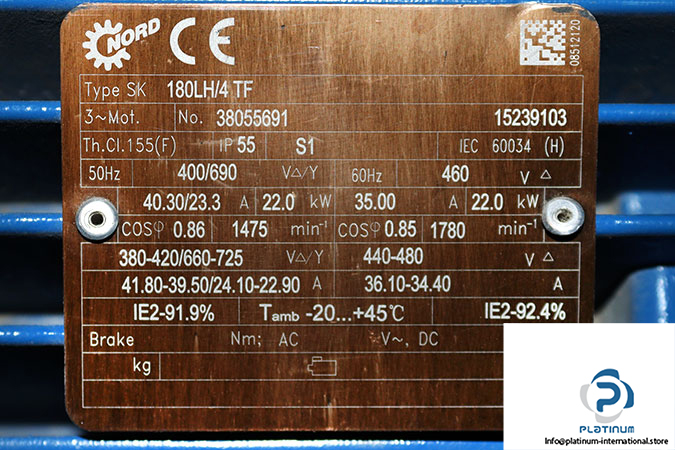

Attachment: Nord SK 180LH/4 TF 3 Phase Electric Motor
Manufacturer: Nord
Type: 3 Phase Electric Motor
Model: SK 180LH/4 TF
Rated Voltage [V]: 400-690/460 Delta-Star
Rated Power [kW]: 22.0/22.0
Rated Current [A]: 40.3-23.3/35.0
Rated Speed [rpm]: 1475/1780
Power Factor: 0.86/0.85
Frequency [Hz]: 50/60
Protection Class [IP]: 55
Temperature [C°]: -20…+45
Duty: S1
Insulation Class: F
