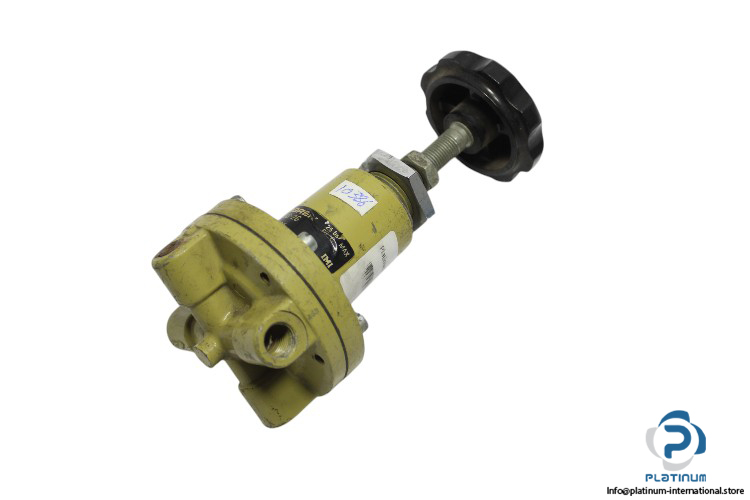

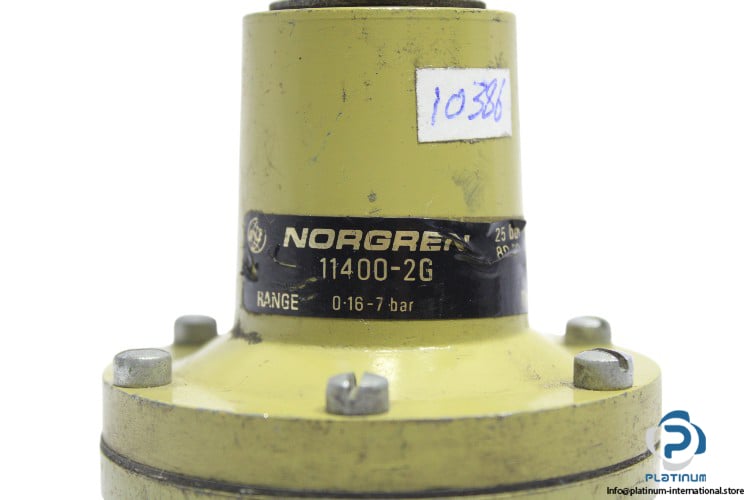

Norgren 11400-2G Pressure Regulator

NORGREN Pressure Regulator 11400-2G

The NORGREN Pressure Regulator 114002G is designed for precise pressure control in pneumatic systems. It is suitable for use with compressed air that has been filtered to 5 microns and neutral gas. The regulator features an inlet pressure max. of 25 bar and allows outlet pressure adjustment between 0.16 to 7 bar (2.3 to 101 PSI). With a flow rate of 2 dm3/sec, it ensures efficient operation in a wide range of applications. The regulator is built from durable zinc alloy and has an operating temperature range of -20 to 80°C, making it ideal for various industrial environments.

Manufacturer: NORGREN

Type: Pressure Regulator

Model: 11400-2G

Technical Specifications

• Fluid: Compressed Air Filtered to 5 µm, Neutral Gas
• Inlet Pressure Max.: 25 bar
• Outlet Pressure Adjustment: 0.16 / 7 bar (2.3 / 101 PSI)
• Flow Rate: 2 dm3/sec
• Operating Temperature: -20 / 80 °C
• Pneumatic Connection: G 1/4
• Material: Zinc Alloy
