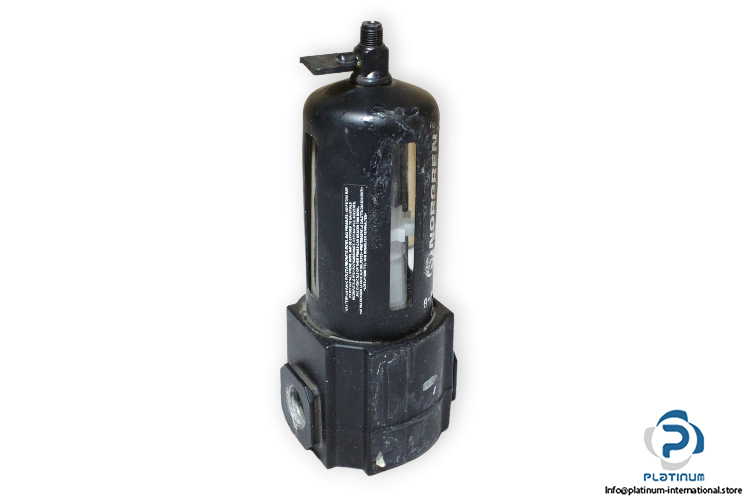

Norgren F74G-4GN-QP3 General Purpose Filter

Manufacturer: NORGREN
Type: general purpose filter

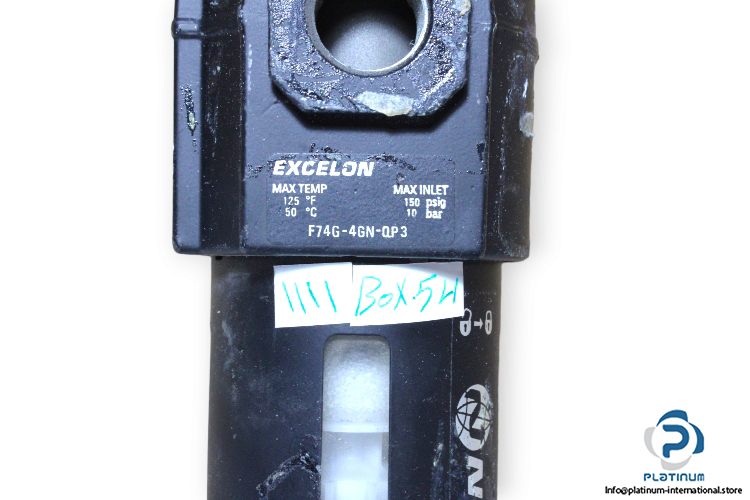

Model: F74G-4GN-QP3

Medium: Compressed Air
Operating Temperature: -34 … 50 °C
Port Size: G1/2
Drain Type: Manual
Filter Element: 40 μm
Maximum Inlet Pressure: 10 bar
Materials – Body: Aluminium
Materials – Bowl: Polycarbonate with metal bowl guard
Materials – Elastomers: Neoprene
Materials – Filter Element: Sintered polypropylene
Dimensions – Height: 74 mm
Dimensions – Length: 202 mm
Dimensions – Width: 80 mm
