Norgren M/1764/6123/ND89J Double Solenoid Valve
Used
In stock1 unitReady to ship
Double Solenoid Valve
Norgren M/1764/6123/ND89J 5/2-way double solenoid valve with G1/2 connection and aluminium body, supplied with 89J coil (220/240 V AC, IP65).220-2405/289JAirAluminiumBodycoilcontrDoubleg1/2IndustrialIP65M/1764/6123/ND89JNorgrenPneumaticsolenoidVValveWay
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

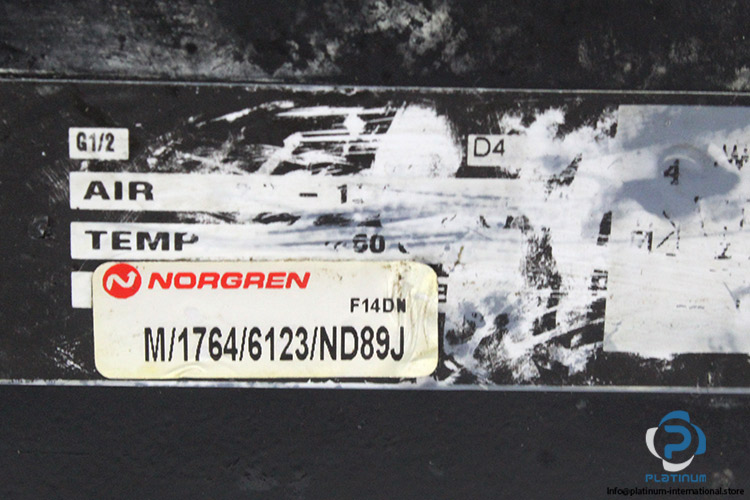

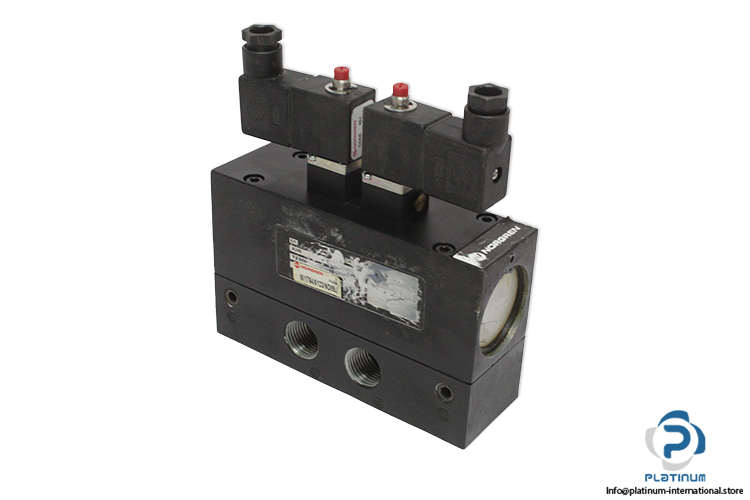

Norgren M/1764/6123/ND89J Double Solenoid Valve
The Norgren M/1764/6123/ND89J is a double solenoid valve designed for pneumatic control applications using air as the working fluid. It provides reliable electrically actuated 5/2-way valve operation and is constructed from wrought aluminium alloy for durability.
Manufacturer: Norgren
Type: Double Solenoid Valve
Model: M/1764/6123/ND89J
Part No.: 25983

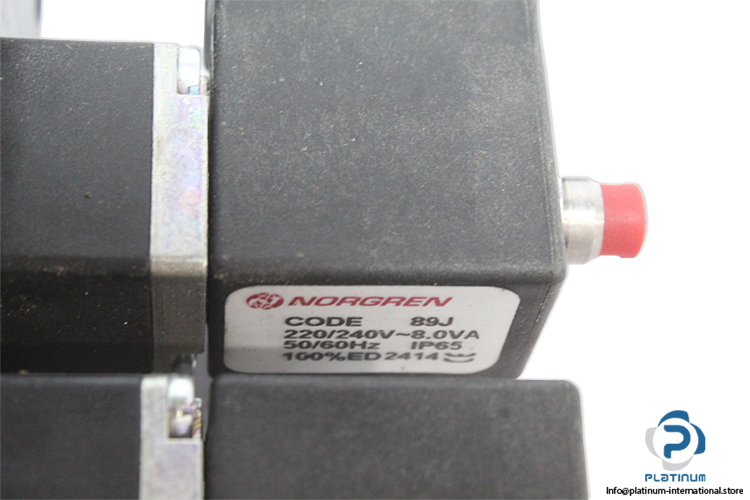

Attachment “ Norgren 89J Solenoid Coil
| Fluid | Air |
| Function | 5/2-Way |
| Type Of Actuation | Electrically |
| Operating Pressure | 1.5 / 8 bar |
| Pneumatic Connection | G1/2 |
| Material | Wrought Aluminium Alloy |
| Part No. | 2414 |
| Supply Voltage | 220/240 V AC |
| Frequency | 50 / 60 Hz |
| Power Consumption | 8.0 VA |
| Protection Class | IP65 |
