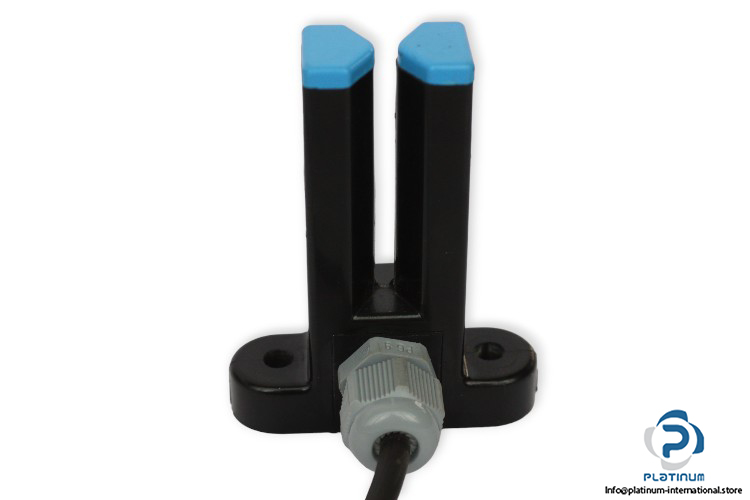

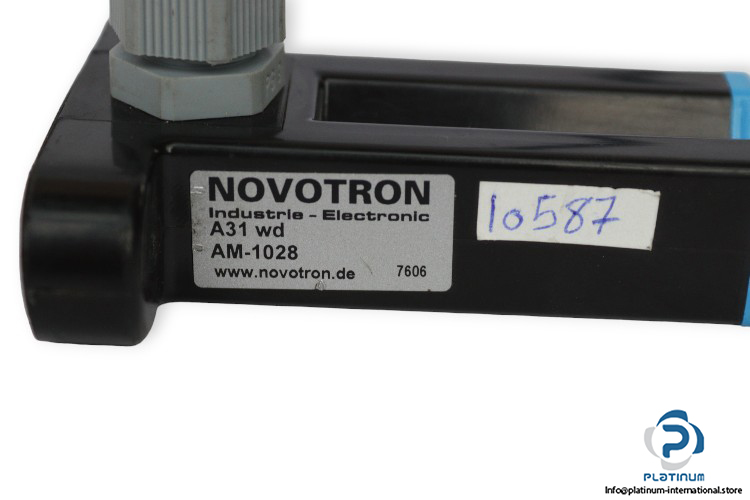

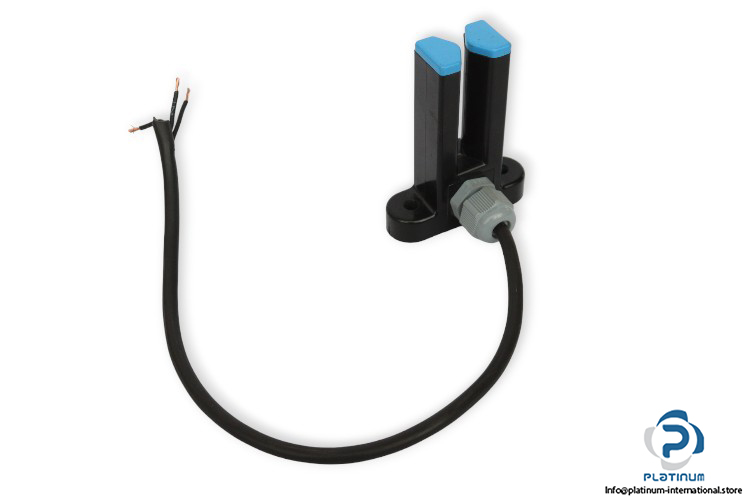

Novotron A31 WD Magnetic Fork Sensor
Manufacture: Novotron
Type: Magnetic Fork Sensor
Model: A31 WD
Art. No.: AM-1028
No. of wires: 3 wires
Type of contact: change-over contact
Switching power max.: 60 W / 80 VA
Switching voltage max.: 230 V AC
Switching current max.: 1 A
Switching time: <4,0 ms
Contact bouncing time: <0,5 ms
Switching frequency max.: 100 Hz
Switching accuracy: <0,2 mm
Switching hysteresis: ca. 4 mm
Fork Width: 4 mm
Fork Depth: 54 mm
Mechanical contact lifetime: 10 sw.
Electrical contact lifetime: depending on electrical load, up to mechanical lifetime
Connection cable length: 300 mm
Ambient temperature: -40 … 60°C
Protection degree: IP60
Dimensions: 84 x 22 x 32 mm
