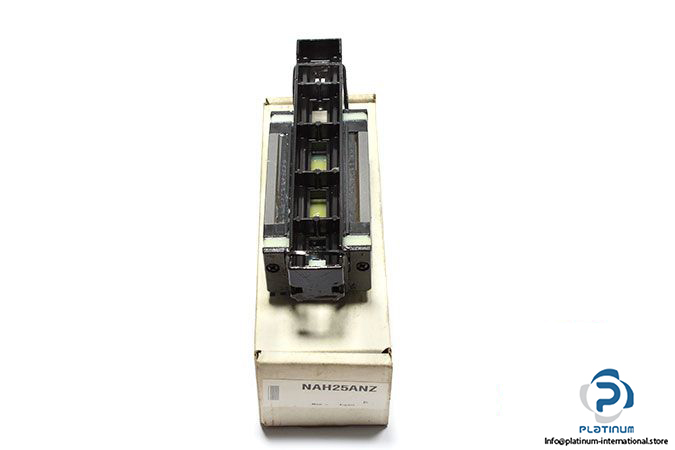

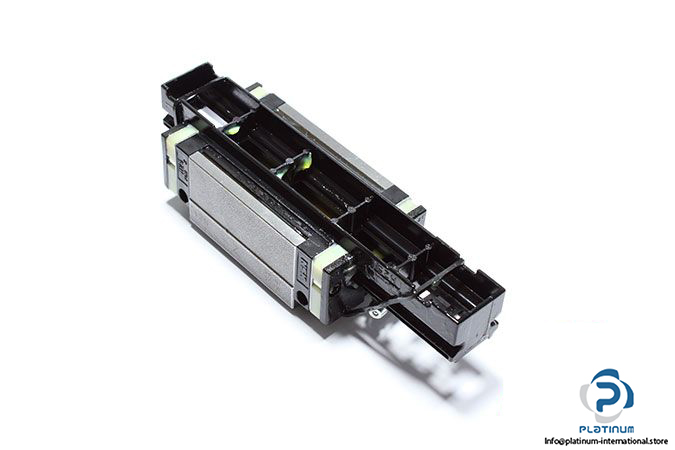

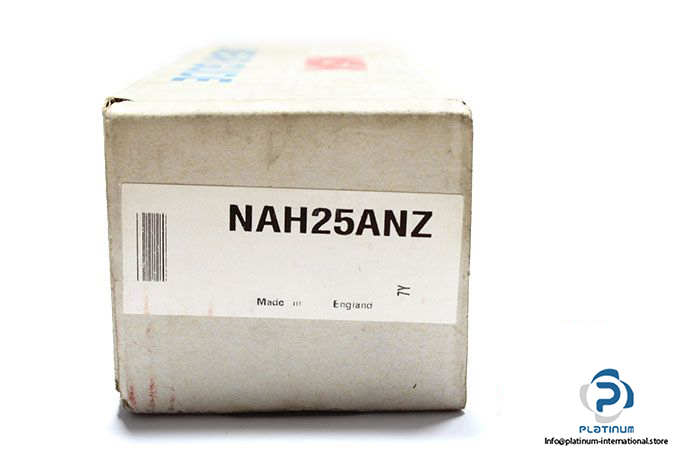

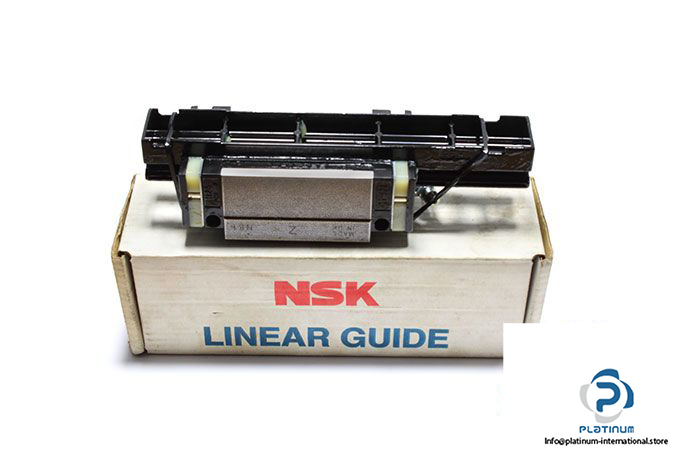

NSK NAH25ANZ Linear Guideway Block

Manufacturer: NSK

Type: Linear Guideway Block NAH

Model: NAH25 ANZ

Size: 25 mm

Block Type: Square Standard Type

Load Type: High Load

Basic Load Ratings:

Dynamic C: 33500 N

Static C₀: 46000 N

Allowable Static Moment:

X axis M_RO: 360 Nm

Y axis M_YO: 267 Nm

Z axis M_PO: 320 Nm

Preload Class: Z -Light

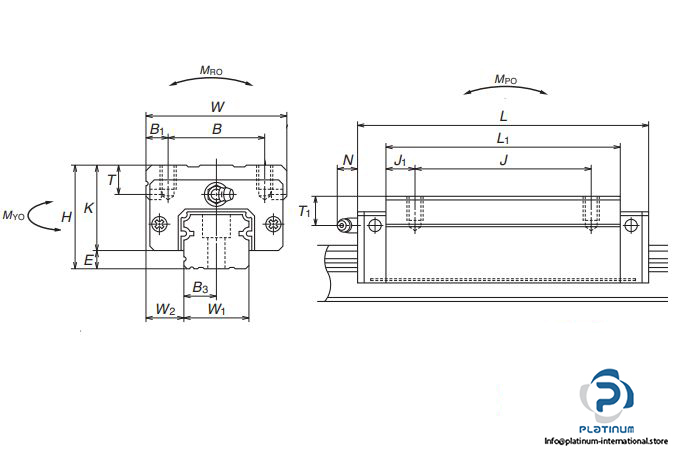

Dimensions

Total Height H: 40 mm

Block Width W: 48 mm

Block Length L with Double lubrication units: 90.6 mm

Weight: 0.61 kg
