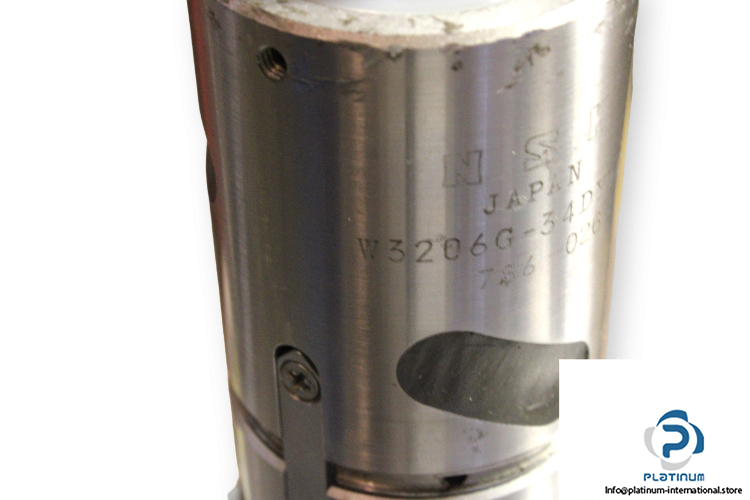

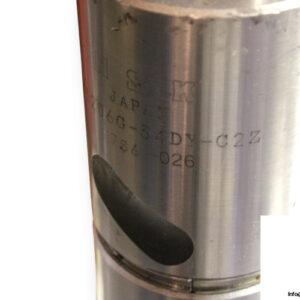

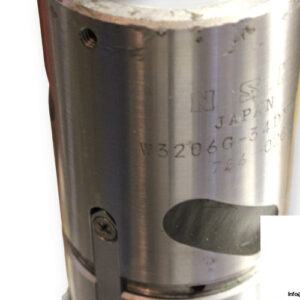

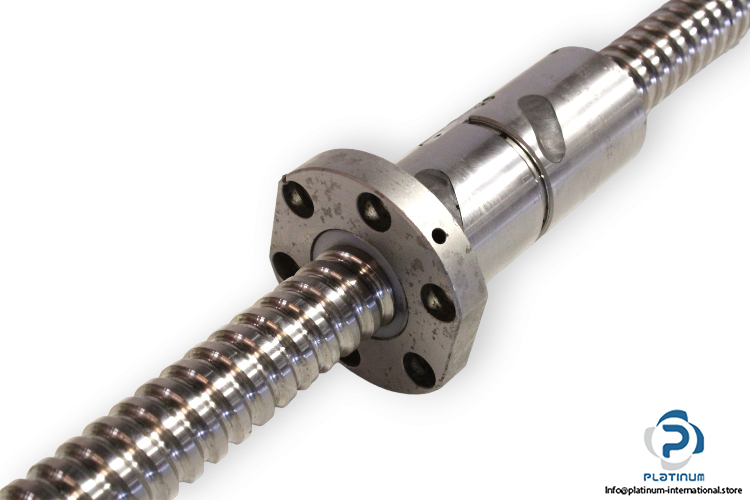

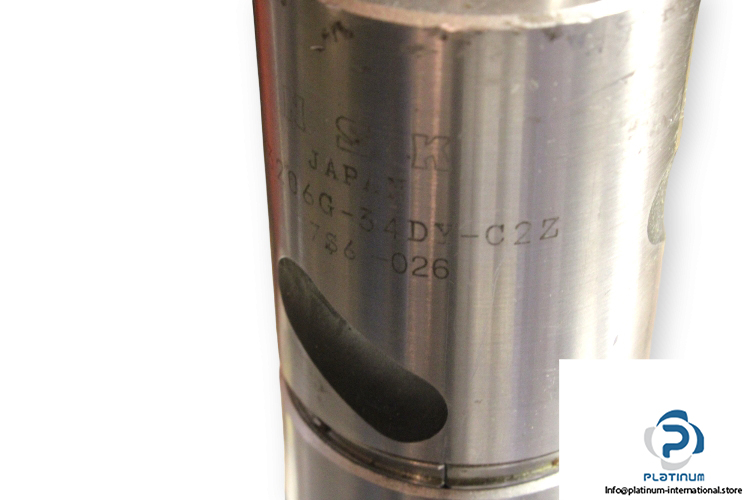

NSK W3206G-34DY-C2Z Ball Screw

Manufacturer: NSK
Type: Double nut ball screw
Model: W3206G-34DY-C2Z-7S6-026

Size: 32
Nominal Diameter d: 32 mm
Lead: 10 mm

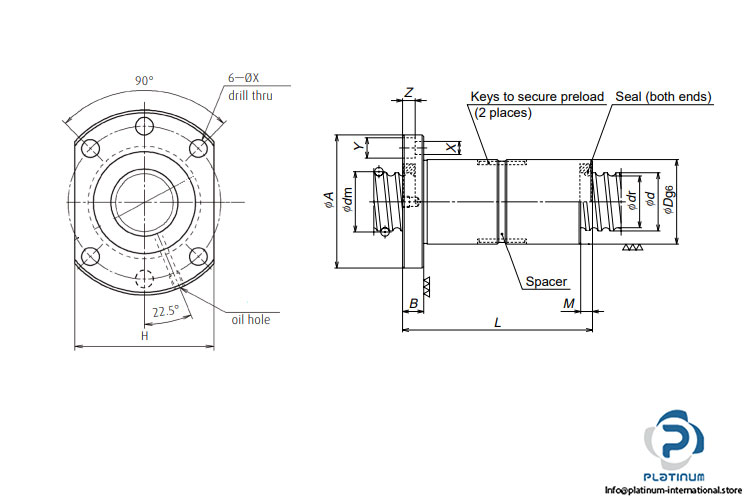

Dimensions:
A: 88 mm
D: 54 mm
L : 140 mm
H: 80 mm
B: 15 mm
Preload Type: D; Double Nut
Recirculation Code: Y; Deflector
Accuracy Grade Code: C2
Axial Clearance Code: Z; No Axial Clearance (preload)
Direction of Lead: Right-Hand Thread
Effective threaded length (in units of 100 mm): 06
Total screw length: 720 mm
