NSK WBK20-11 Support Unit

Name: NSK WBK20-11 SUPPORT UNIT
SKU: 1089692
Availability: LimitedAvailability

nsk-WBK20-11-support-unit-(new)-(carton)

nsk-WBK20-11-support-unit-(new)-(carton)-1

nsk-WBK20-11-support-unit-(new)-(carton)-2

nsk-WBK20-11-support-unit-(new)-(carton)-5

nsk-WBK20-11-support-unit-(new)-(carton)-6

nsk-WBK20-11-support-unit-(new)-(carton)-3

nsk-WBK20-11-support-unit-(new)-(carton)-4

New

In stock3 unitsReady to ship

Support Unit

NSK WBK20-11 round support unit with integrated deep groove ball bearing, designed for precise shaft and ball screw support in industrial motion systems.

Manufacturer

NSK

SKU

1089692

Category

Other Rolling Bearings

Condition

New

6204ZZCM Ball bearing Component Deep Groove Industrial Motion NSK Precision Round screw Support Unit WBK20-11

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

NSK WBK20-11 Support Unit (Round)

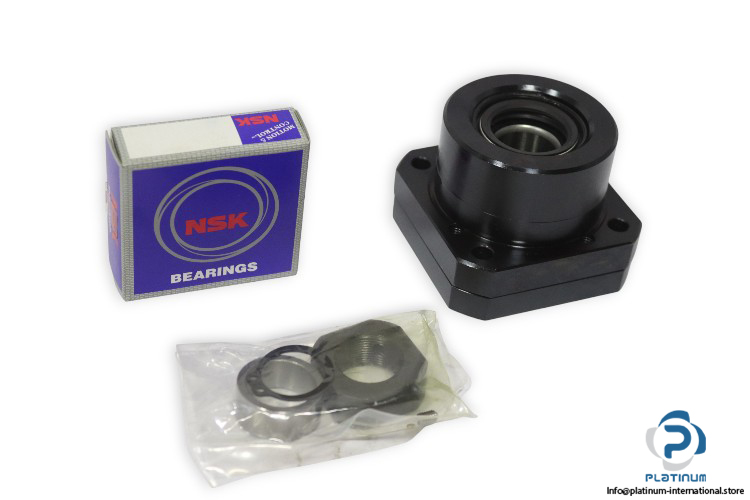

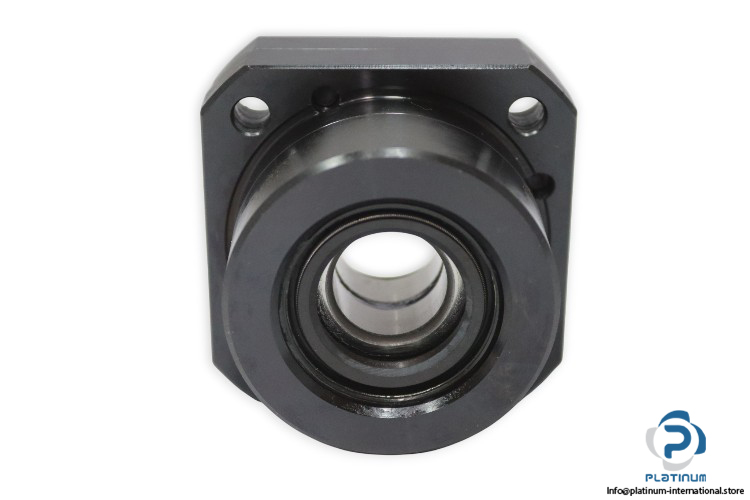

The NSK WBK20-11 is a round-type support unit designed to provide precise axial and radial support for ball screw and motion systems. It features a compact design with high load capacity and stable performance for industrial applications.

Manufacturer: NSK

Type: Support Unit (Round)

Model: WBK20-11

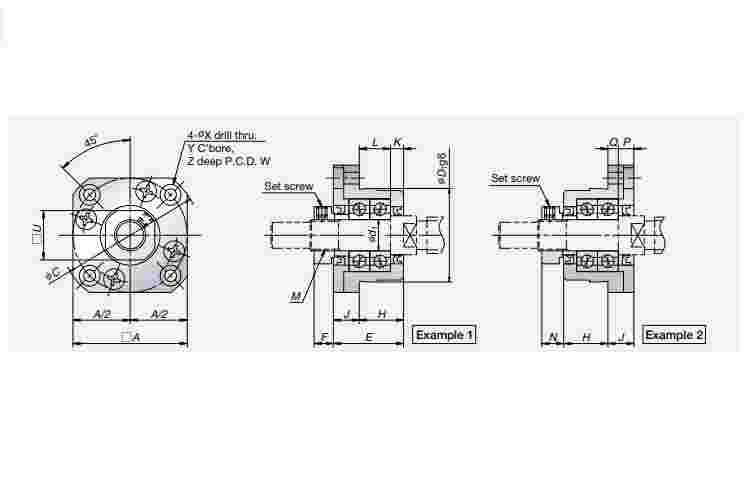

Bearing Attachment

d1	20 mm
D1	57 mm
H	30 mm
J	22 mm
A	68 mm
E	52 mm
F	10 mm
Thread Size (M)	M20 x 1
Starting Torque	Max. 5.4 N·cm
Radial Dynamic Load	17,900 N
Bearing Type	Deep Groove Ball Bearing

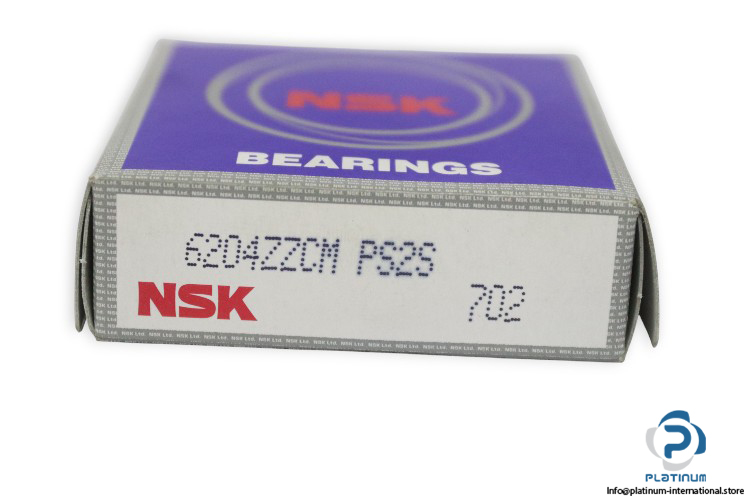

Bearing Model	NSK 6204ZZCM
Bore Diameter (d)	20 mm
Outer Diameter (D)	47 mm
Width (B)	14 mm
