NTN 22228BKD1C3 Spherical Roller Bearing
Manufacturer: NTN
Type: Spherical Roller Bearing
Model: 22228 BKD1C3
Dimensions:
Bore Diameter d: 140 mm
Outer diameter D: 250 mm
Width B: 68 mm
Basic load ratings:
Dynamic Cr: 685 kN
Static C0r: 975 kN
Radial internal clearance: C3
Lubrication: D1; Lubrication groove and lubrication holes on outer ring

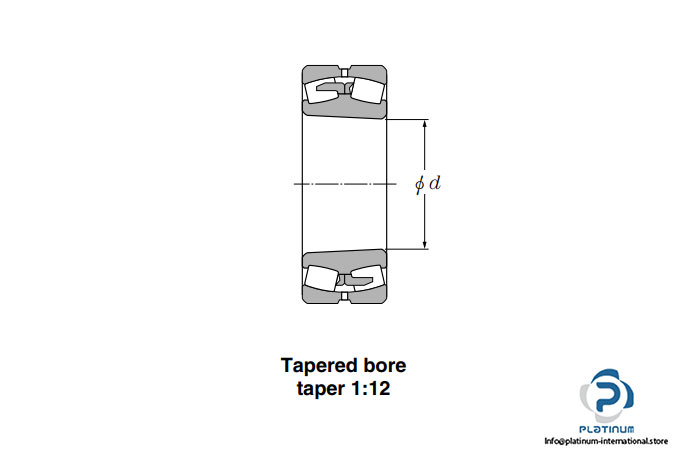

Bore type: Tapered bore (taper 1:12)
