NTN 24034 BD1 Spherical Roller Bearing
New
In stock1 unitReady to ship
Spherical Roller Bearing
The NTN 24034 BD1 bearing offers high radial and axial load capacity with a 170 mm bore, brass cage, and internal B design. Its D1 modification includes an oil groove and holes for effective lubrication in industrial environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

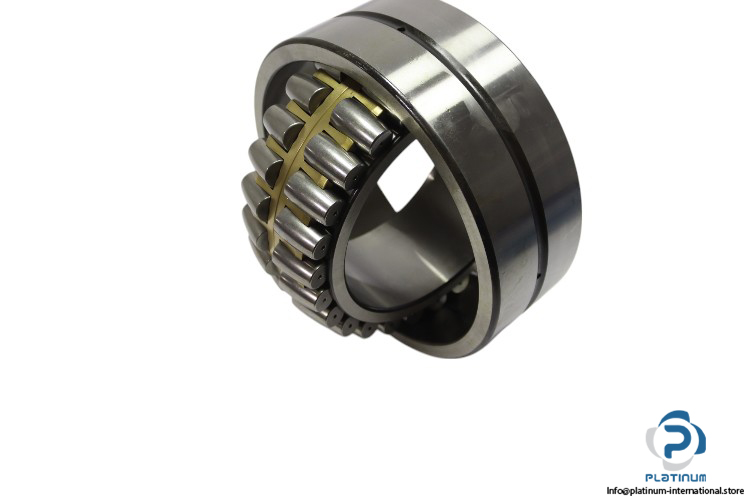

NTN 24034 BD1 Spherical Roller Bearing
The NTN 24034 BD1 is a high-performance spherical roller bearing engineered for heavy-duty industrial applications. It features an advanced internal design with asymmetrical rollers, a center-guided brass cage, and a ribbed inner ring for superior load handling and alignment.
Manufacturer: NTN
Type: Spherical Roller Bearing
Model: 24034 BD1
| Bore Diameter (d) | 170 mm |
| Outer Diameter (D) | 260 mm |
| Width (B) | 90 mm |
| Dynamic Load Rating (Cr) | 180000 N |
| Static Load Rating (C0r) | 330000 N |
| Internal Design | B “ Ribbed inner ring, asymmetrical rollers, center-guided retainer |
| Ring Modification | D1 “ Oil groove and holes |
| Cage Material | Brass |
