NTN 3302 Double ROW Angular Contact Ball Bearing

Manufacturer: NTN

Type: Double Row Angular Contact Ball Bearing

Model: 3302

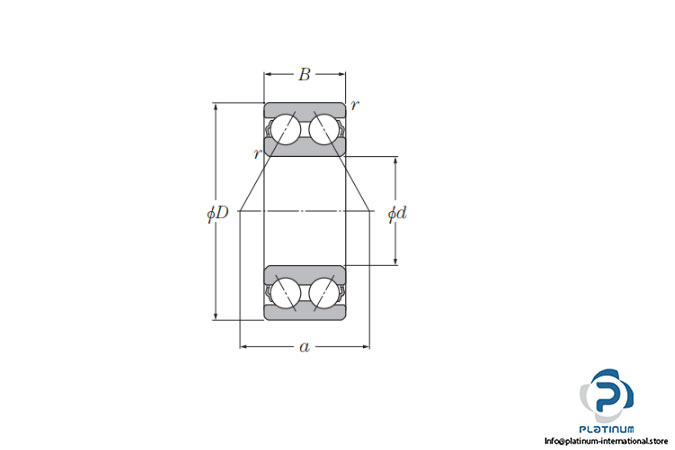

Dimensions

Bore Diameter d: 15 mm

Outer diameter D: 42 mm

Width B: 19 mm

Contact angle: 32 °

Basic load ratings, radial:

Dynamic C_r: 13900 N

Static C_0r: 11600 N

Material: High Carbon Chrome Steel

Operating temperature: -40 … +120 °C
