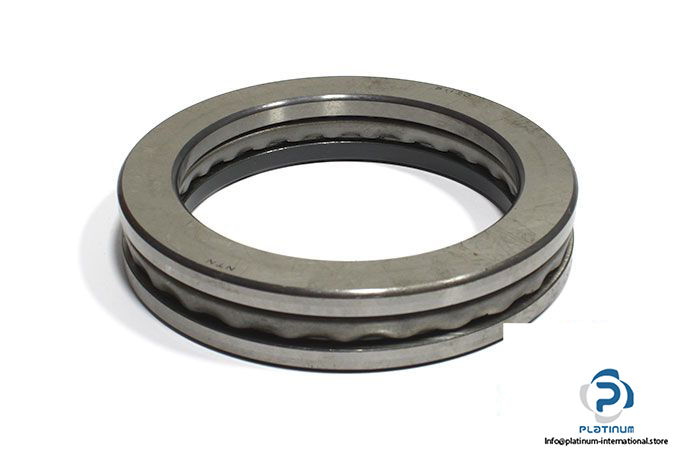

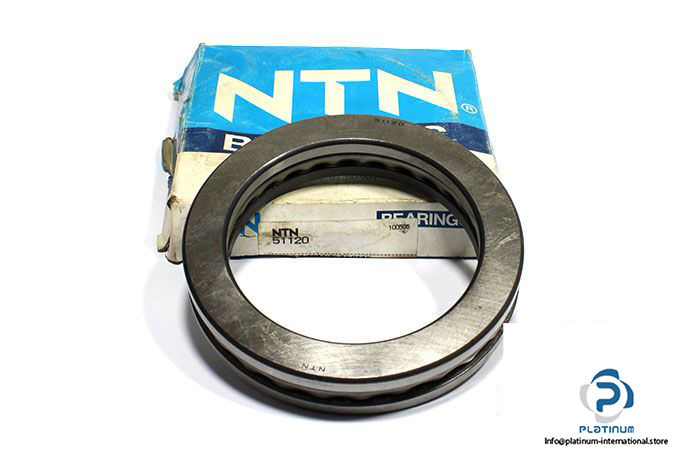

NTN 51120 Thrust Ball Bearing

Manufacturer: NTN

Type: Thrust ball bearings single direction

Model: 51120

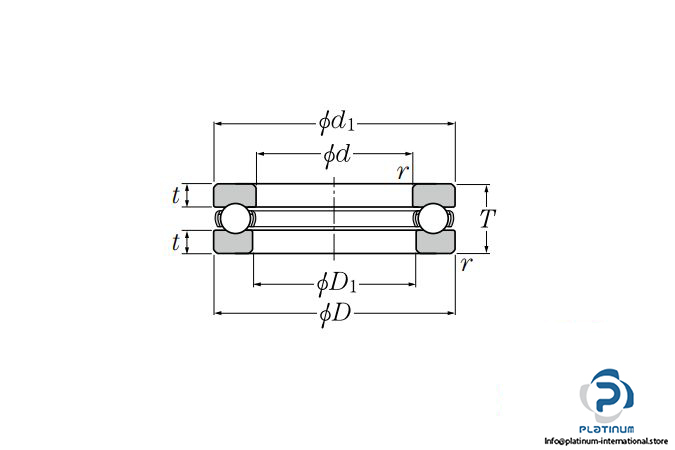

Dimensions

Bore diameter d: 100 mm

Outer diameter D: 135 mm

Height T: 25 mm

Minimum chamfer dimension r_{s min}: 1 mm

Basic load ratings:

Dynamic C_a: 85 kN

Static C_0a: 268 kN

Fatigue load rating C_u: 11.2 kN

Allowable speed:

Grease lubrication: 1700 rpm

Oil lubrication: 2400 rpm

Cage: Steel Pressed cage

Weight: 0.98 kg
