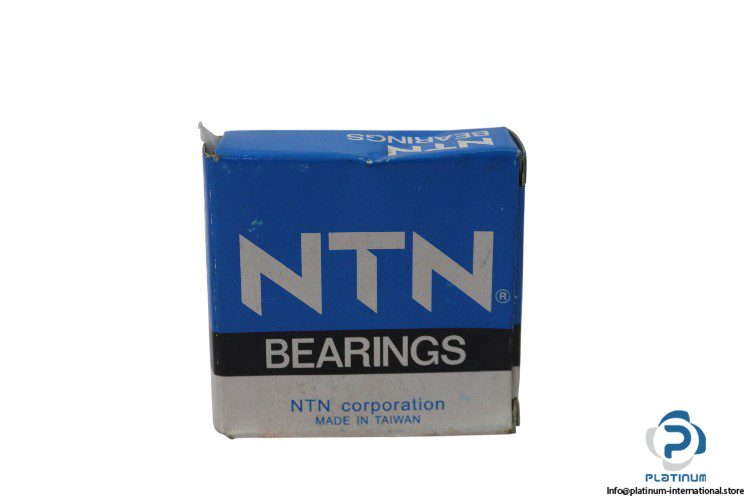

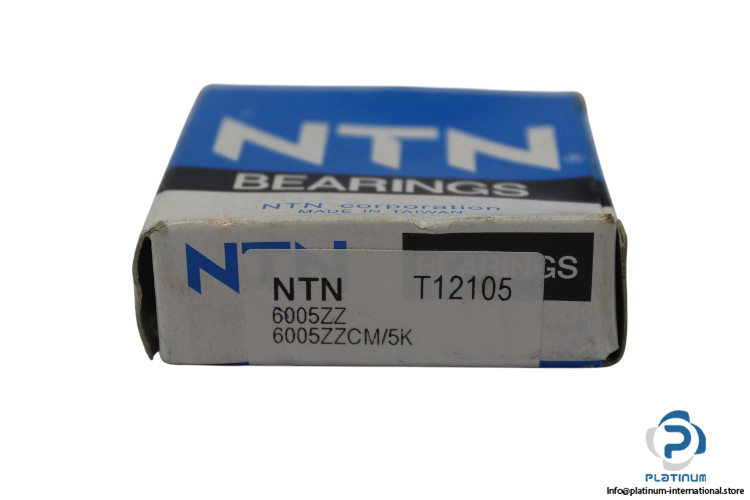

NTN 6005ZZCM/5K Deep Groove Ball Bearing
New
In stock2 unitsReady to ship
Single Row Deep Groove Ball Bearing
The NTN 6005ZZCM 5K deep groove ball bearing features a 25 mm bore, 47 mm outer diameter, and 12 mm width. It offers high load capacity, shielded sealing, and a wide operating temperature range, making it ideal for industrial applications.25380475k6005ZZCMBallbearingboreDeepdiameterfatigueGrooveHighIndustrialLimitLoadmmNNTNOuterRowShieldedSingle
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
NTN 6005ZZCM 5K “ Single Row Deep Groove Ball Bearing
The NTN 6005ZZCM 5K single row deep groove ball bearing is designed for high-performance applications requiring precision and durability. It features a high load capacity, low friction, and an extended temperature operating range. Ideal for a wide range of industrial uses, it ensures long-lasting performance with a grease lubrication limit of 15,000 rpm.
Manufacturer: NTN
Type: Single Row Deep Groove Ball Bearing
Model: 6005ZZCM 5K
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 47 mm |
| Width (B) | 12 mm |
| Min Fillet Radius (rs) | 0.6 mm |
| Dynamic Load Rating (Cr) | 11200 N |
| Static Load Rating (C0r) | 5850 N |
| Fatigue Load Limit | 380 N |
| Grease Lubrication Limit Speed (Nlim) | 15000 tr/min |
| Pre-lubricant | 5K, Kyodo Yushi Multemp SRL |
| Sealing | ZZ, Shielded on both sides |
| Clearance | CM |
| Operating Temperature | -40 to 150°C |
