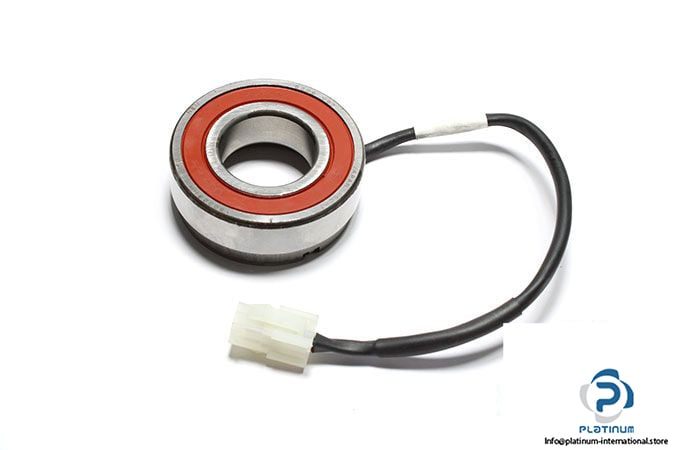

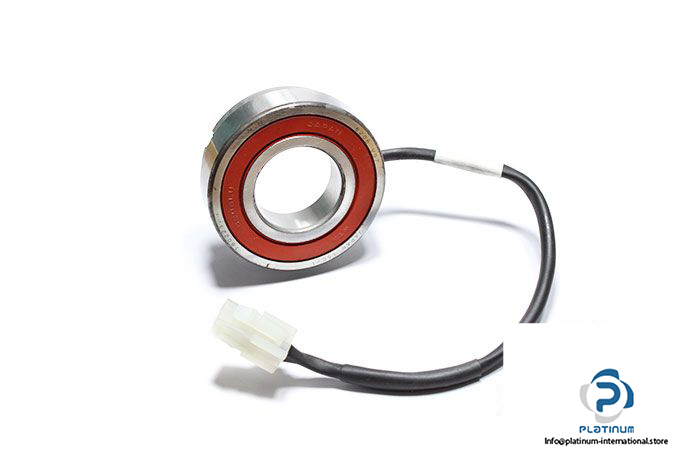

NTN 6206 V97 15C-1 Integrated Rotation Sensor Bearing
Used
Available on request
160,00$
INTEGRATED ROTATION SENSOR BEARING
NTN 6206 V97 15C-1 is a compact integrated bearing and sensor unit combining 30 mm bore support with 64-pulse rotation output, ideal for precise industrial motion monitoring.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
NTN 6206 V97 15C-1 INTEGRATED ROTATION SENSOR BEARING
The NTN 6206 V97 15C-1 is a precision-engineered integrated rotation sensor bearing designed to combine mechanical support with rotational sensing capabilities. This unit offers high accuracy, durable load handling, and compact design”ideal for modern industrial and automation systems.
Manufacturer: NTN
Type: Integrated Rotation Sensor Bearing

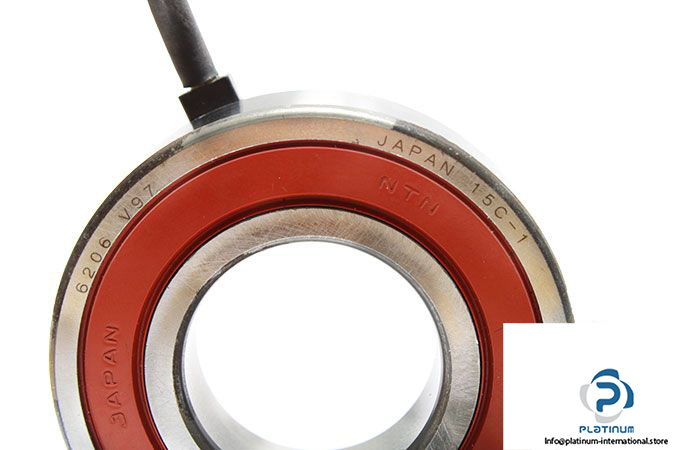

Model: 6206 V97 15C-1

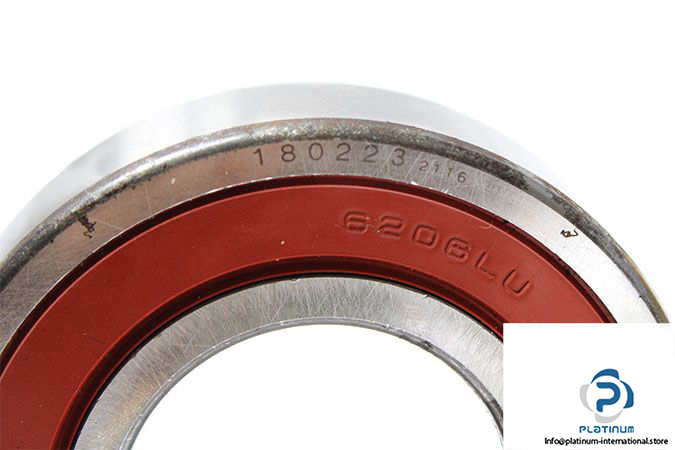

Part No.: 180223

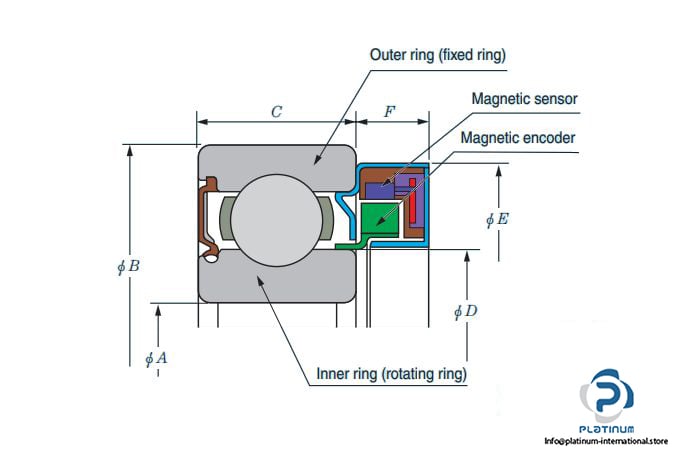

Bearing Unit Specifications
- Bore Diameter A: 30 mm
- Outer Diameter B: 62 mm
- Width C: 16 mm
- Basic Load Dynamic Rating: 19.5 kN
- Basic Load Static Rating: 11.3 kN
- Allowed Axial Load (Static): 5.81 kN
Sensor Unit Specifications
- Bore Diameter D: 40.6 mm
- Outer Diameter E: 58 mm
- Width F: 7.5 mm
- Number of Output Pulses: 64
- Adjacent Period Error: 5% or less
- Phase Shift: 90 ±45°
- Duty Cycle: 50 ±15%
- Cable Length: 500 mm
- Ambient Operating Temperature: -25 to 120 °C
