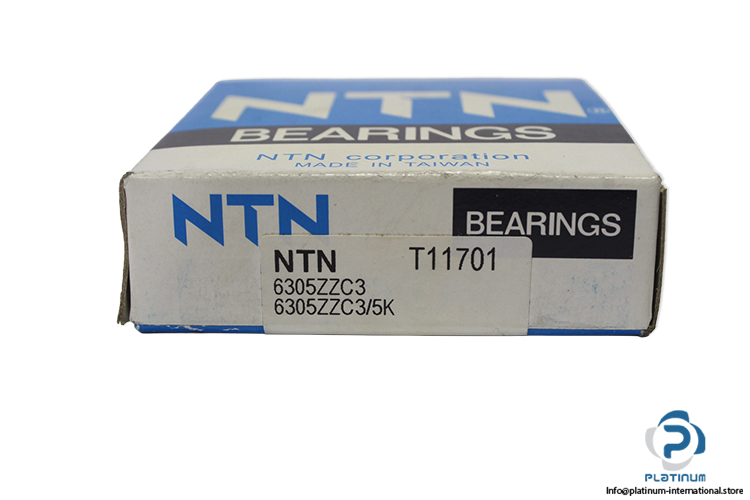

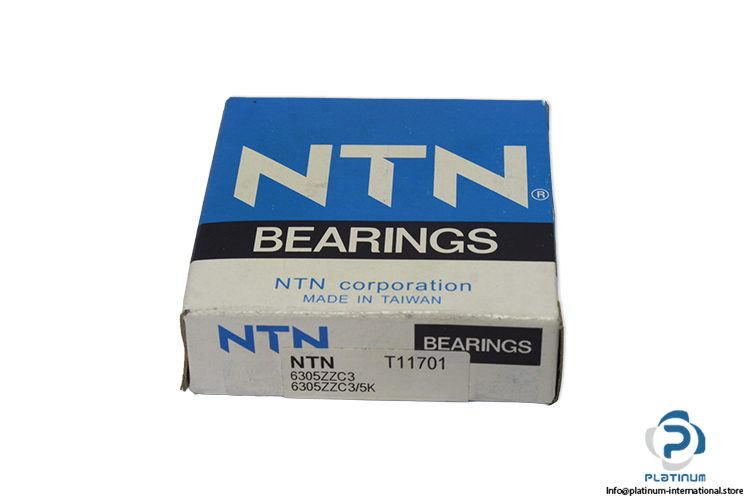

NTN 6305ZZC3/5K Deep Groove Ball Bearing

In stock1 unitReady to ship

Deep Groove Ball Bearing NTN single-row deep groove ball bearing with C3 radial clearance, 25 mm bore, 62 mm outer diameter and 17 mm width for industrial applications.

Manufacturer
NTN?
SKU
1101126
Category
Deep Groove
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
CodeT11701
Bore diameter d25 mm
Outer diameter D62 mm
Width B17 mm
Min fillet radius1,1 mm
Radial clearance classC3
Dynamic Load Capacity C23,5 kN
Static Load Capacity C010,9 kN
Cu - Fatigue limit load0,855 kN
f0 – Coefficient12.6
N lim - Grease lubrication limit speed12000 tr/min
Tmin - Min operating temperature-40 °C
Tmax - Max operating temperature150 °C
da min - Min shoulder diameter IR31,5 mm
Da max - Max shoulder diameter OR55,5 mm
ra max - Max shaft & housing fillet radius1 mm
Stock keyCON003
ConditionNew
SKU1101126
Weight0,25
