NTN 7207 Angular Contact Ball Bearing
New
In stock3 unitsReady to ship
Angular Contact Ball Bearing
NTN 7207 matched pair angular contact ball bearing with 30° contact angle, high load capacity, and pressed steel cage for precision industrial applications.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

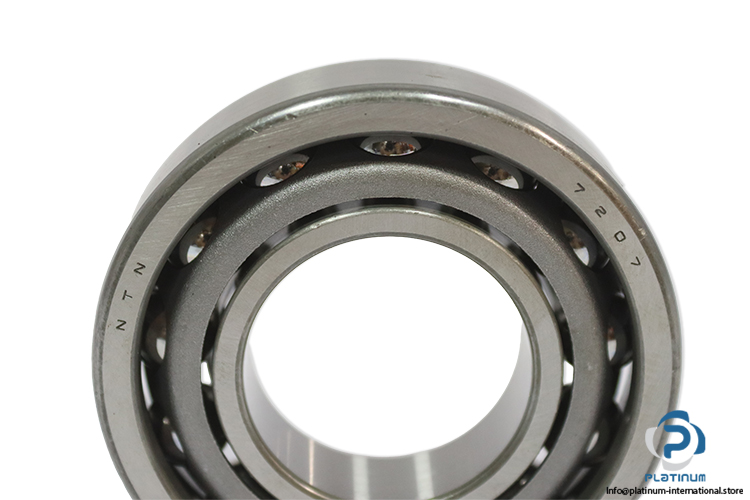

NTN 7207 Angular Contact Ball Bearing (Matched Pair)
The NTN 7207 angular contact ball bearing matched pair is designed to support combined radial and axial loads with high precision and stability. Its optimized contact angle and pressed steel cage ensure reliable performance in demanding industrial applications.
Manufacturer: NTN
Type: Matched Pairs Of Angular Contact Ball Bearing
Model: 7207
| Bore Diameter (d) | 35 mm |
| Outer Diameter (D) | 72 mm |
| Width (B) | 17 mm |
| Contact Angle | 30° |
| Dynamic Load Rating (Cr) | 33 kN |
| Static Load Rating (C0r) | 20.1 kN |
| Fatigue Load Limit | 1.57 kN |
| Limiting Speed (Oil) | 14,000 rpm |
| Limiting Speed (Grease) | 11,000 rpm |
| Cage Material | Pressed Steel |
| Operating Temperature | -40 to +120 °C |
