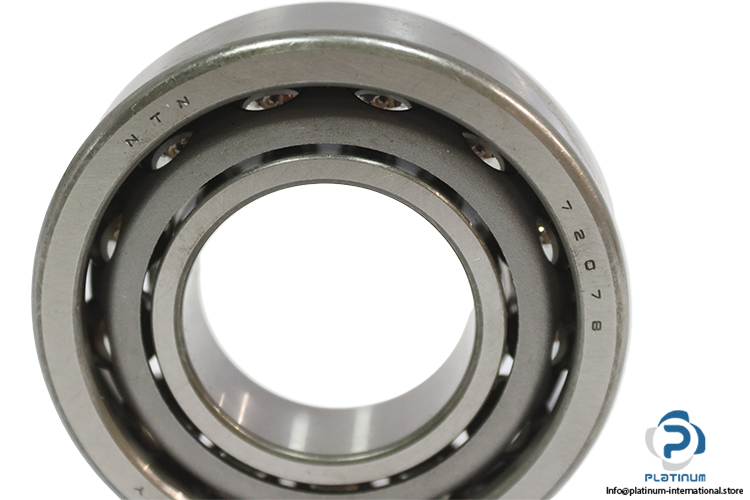

NTN 7207B Angular Contact Ball Bearing
New
In stock3 unitsReady to ship
Angular Contact Ball Bearing
NTN 7207B matched pair angular contact ball bearing with 40° contact angle, high load capacity, and pressed steel cage for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
NTN 7207B Angular Contact Ball Bearing
The NTN 7207B is a high-performance angular contact ball bearing supplied as a matched pair, designed to support combined radial and axial loads with high precision and operational stability in industrial applications.
Manufacturer: NTN
Type: Matched Pairs Of Angular Contact Ball Bearing
Model: 7207B
| Bore Diameter (d) | 35 mm |
| Outer Diameter (D) | 72 mm |
| Width (B) | 17 mm |
| Contact Angle | 40° |
| Dynamic Load Rating (Cr) | 30 kN |
| Static Load Rating (C0r) | 18.4 kN |
| Fatigue Load Limit | 1.44 kN |
| Limiting Speed (Oil) | 12,000 rpm |
| Limiting Speed (Grease) | 9,300 rpm |
| Cage Material | Pressed Steel |
| Operating Temperature | -40 to 120 °C |
