NTN M-UCHB205D1 Hanger Unit

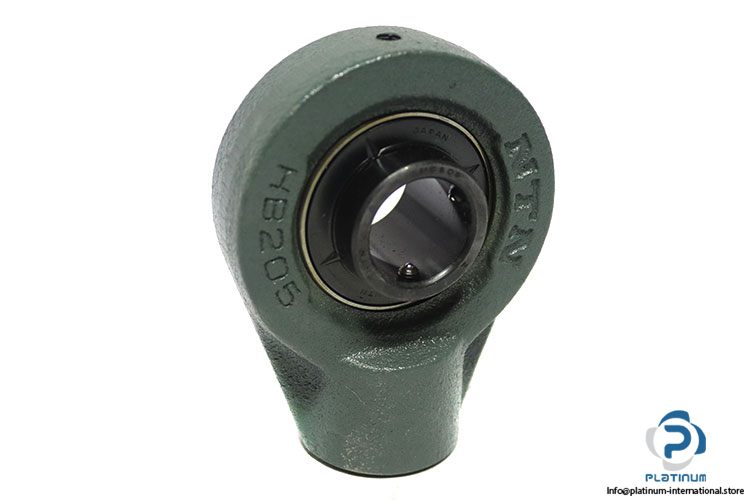

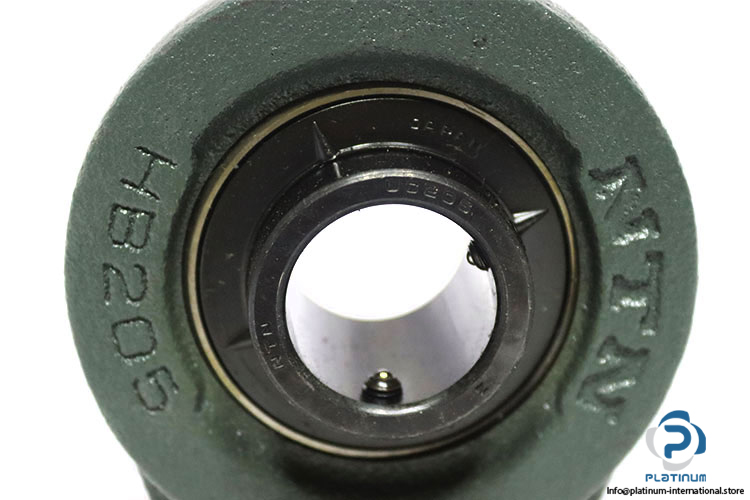

The NTN M-UCHB205D1 hanger unit is a robust bearing housing solution designed for reliable shaft support in industrial applications. It combines a UC205 insert bearing with a durable cast iron housing, ensuring stable operation and long service life.
Manufacturer: NTN
Type: Hanger Unit
Model: M-UCHB205D1

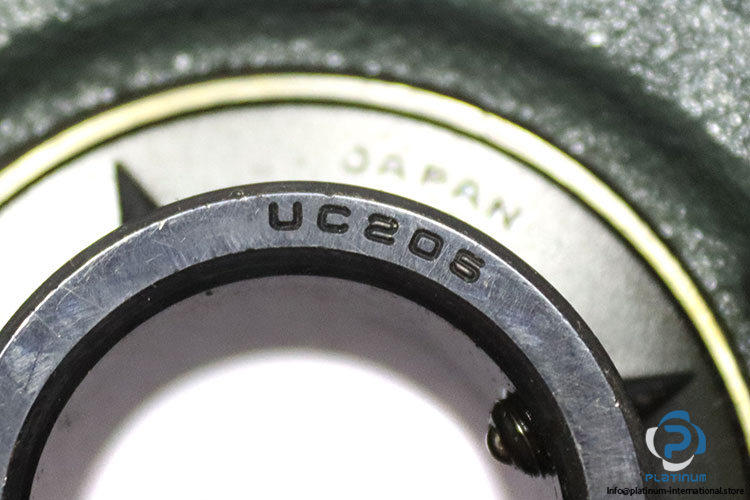

Bearing Number: UC205
Housing Number: HB205

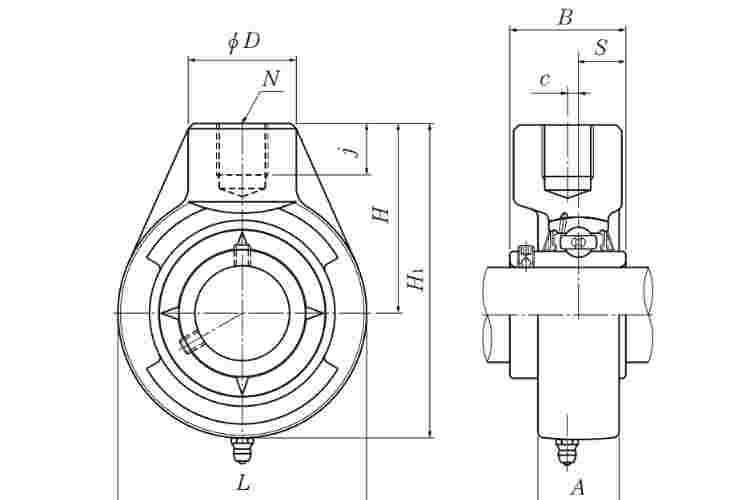

| Bore Diameter (d) | 25 mm |
| Overall Length (L) | 78 mm |
| Overall Height (H1) | 103 mm |
| Width of Inner Ring (B) | 34.10 mm |
| Housing Height (H) | 64 mm |
| Mounting Holes Distance (j) | 19 mm |
| Housing Width (A) | 24 mm |
| Distance Front Side / Bearing Center (S) | 14.300 mm |
| Dynamic Load Rating (Cr) | 14,000 N |
| Static Load Rating (C0r) | 7,850 N |
| Maximum Rotational Speed | 5,900 rpm |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
