OBO V 20-C/1+NPE-385 5094666 Surge Controller ‎

Manufacturer: OBO

Type: Surge arrester

Model: V 20-C/1+NPE-385

Part No.: 5094 666

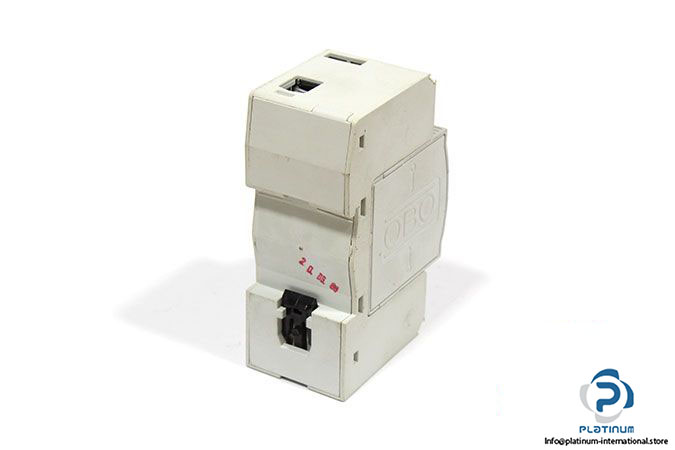

• Complete unit consisting of upper part and base, pre-mounted and ready for connection

• Suitable for TN and TT network systems

• Plug-in upper part; upper part can be separated from base without tools

• Incl. thermal and dynamic cut-off unit

• With visual display of defects

• High current conductivity and long service life

• Labelled connections

Nominal voltage: 230 V AC

Continuous Voltage: 385 V

Nominal discharge current (8/20): 20 kA

Protection Level: < 1,7 kV

Response Time: max. 25 ns

Temperature: -40 … 80 °C

Protection: IP20

Weight: 0.24 kg
