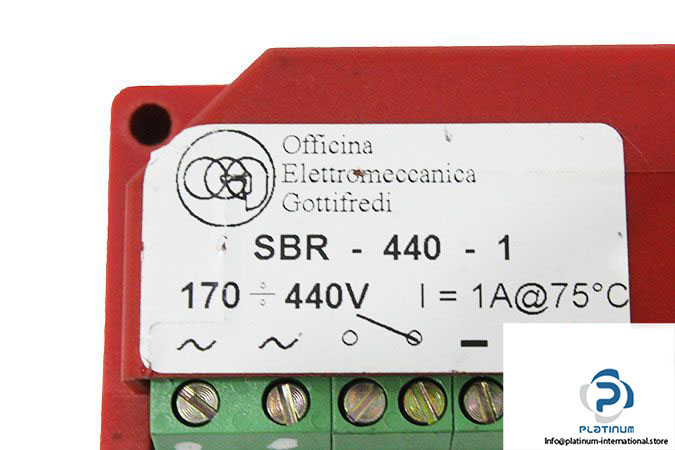

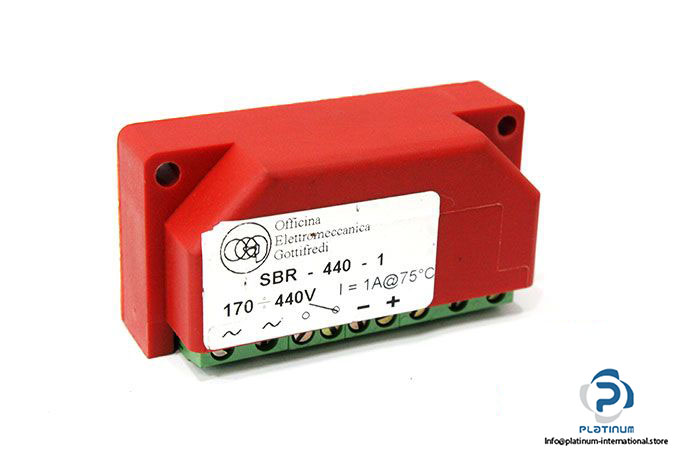

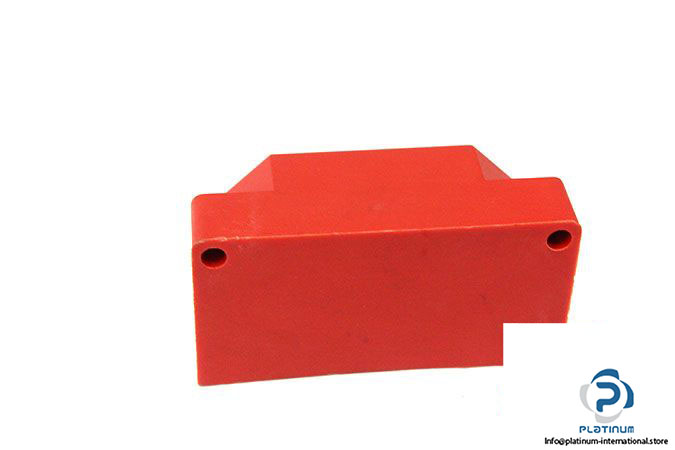

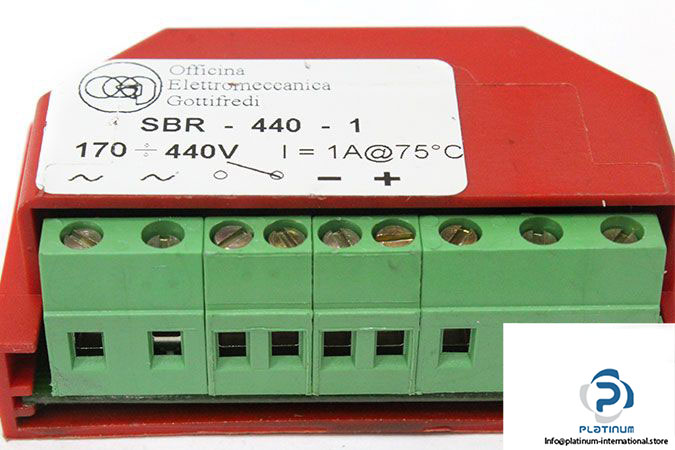

OEG SBR-440-1 Half-Wave Current Rectifier

Manufacturer: OFFICINA ELETTROMECANICA GOTTIFREDI

Type: Half-Wave Current Rectifier

Model: SBR-440-1

SBR 440-1 comply with the EMC directive when a 0.22µF 440VAC Class X1 capacitor is supplied on contacts 1-2 VAC input supplied on request by OEG

Power Supply: (Range) 170…440 V AC

Maximum Continuous Current:  1 A

Ambient Temp.: 75° C

Protection Class: IP65

Weight: 0.08 kg
