Olivibra PS063EB3 Single-Impact Pneumatic Vibrator Hammer
Used
In stock1 unitReady to ship
PNEUMATIC VIBRATOR HAMMER
Single-impact pneumatic vibrator for material flow assistance in hoppers and silos. Operates at 3“6 bar with high energy output and durable steel body. Includes solenoid valve and coil for full electrical integration.6AirbarBodyBSPconnectiondischargeflowG1/4HammerHopperIndustrialmaterialOlivibraPneumaticPS063EB3rigidSingle-ImpactsolenoidValveVibrator
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

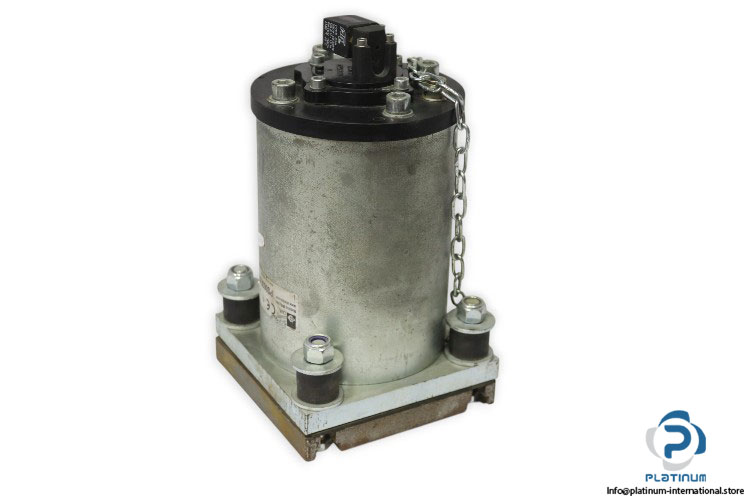

OLIVIBRA PS063EB3 SINGLE-IMPACT PNEUMATIC VIBRATOR HAMMER
High-efficiency single-impact pneumatic vibrator hammer designed for dislodging bulk materials in silos, hoppers, and chutes. The PS063EB3 from Olivibra offers powerful impact force with low air consumption and is built to withstand tough industrial environments.
Manufacturer: Olivibra (OLI)
Type: Single-Impact Pneumatic Vibrator Hammer

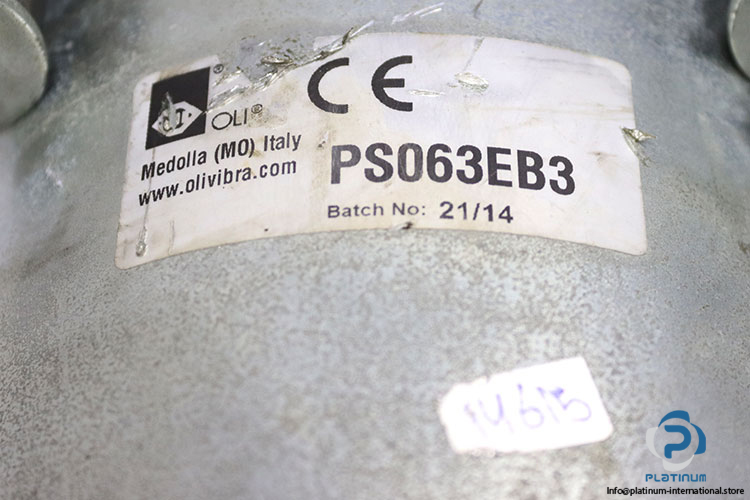

Model: PS063EB3
Batch No.: 21/14
Electrical Attachments
| Operating Pressure | 3 to 6¯bar (44 to 87¯PSI) |
| Force at 3¯bar | 589¯N |
| Energy per Stroke at 3¯bar | 28.8¯J |
| Force at 6¯bar | 1268¯N |
| Energy per Stroke at 6¯bar | 62¯J |
| Air Consumption at 3¯bar | 6.4¯Nl/min |
| Air Consumption at 6¯bar | 11.6¯Nl/min |
| Pipe Connection | G1/4 BSP (8¯mm) |
| Duty Cycle | Intermittent |
| Body Material | Galvanized steel & steel plate |

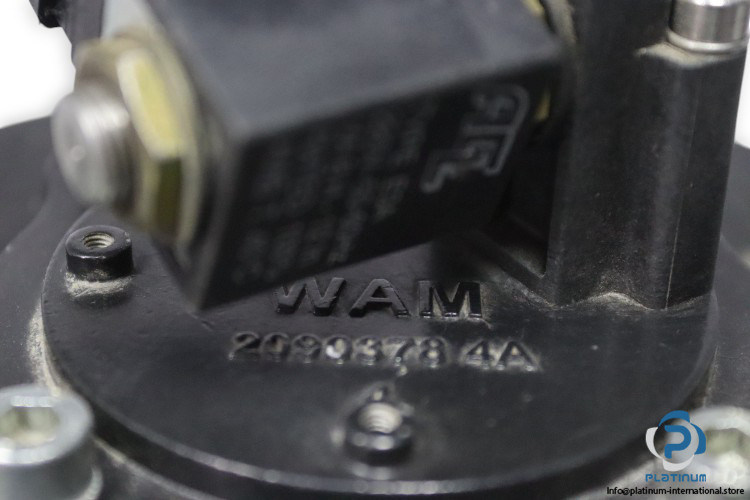

| Solenoid Valve | WAM 2090378 4A |

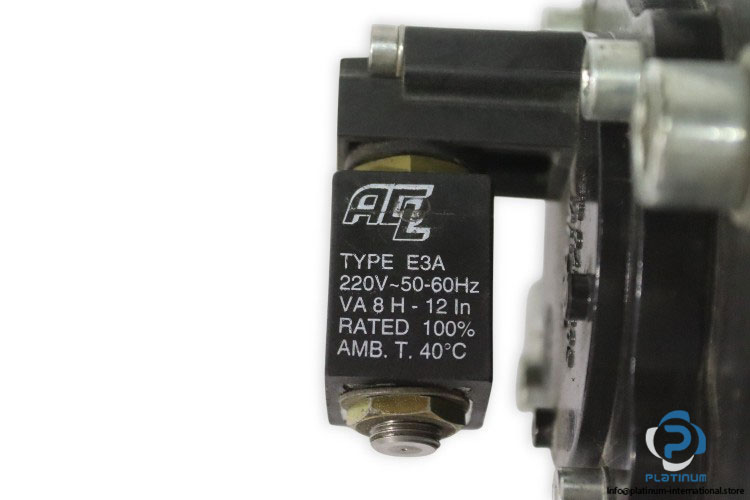

| Solenoid Coil | ACL E3A |
| Voltage | 220 V AC, 50/60 Hz |
| Power Consumption | 8 VA |
| Duty Cycle | 100% |
| Ambient Temperature | 40°C |
