Omal SR30 F03-F05 Pneumatic Actuator
Pneumatic Actuator

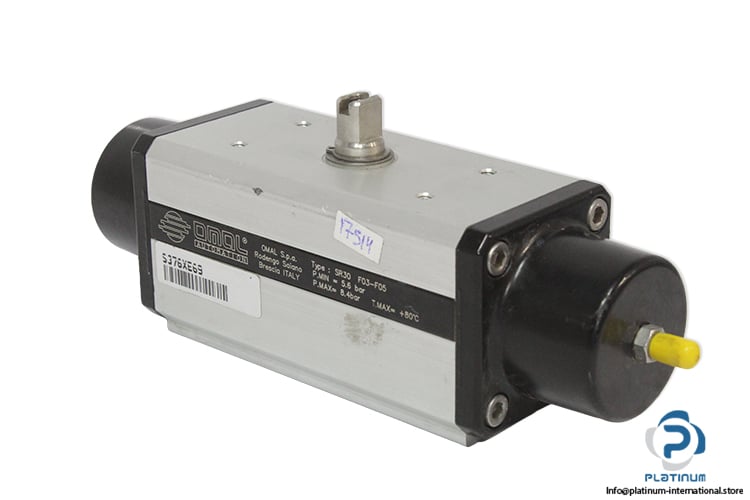

Omal SR30F03-F05 spring return pneumatic actuator designed for 90-degree rotary motion in industrial automation applications.Omal SR30F03-F05 Pneumatic Actuator
A robust pneumatic actuator manufactured by Omal, designed for industrial automation applications where reliable rotary motion is required. This actuator operates with spring return functionality and is suitable for use without an aseptic valve, providing controlled 90-degree rotation for valve actuation and mechanical movement systems.
Manufacturer: Omal
Type: Pneumatic Actuator Without Aseptic Valve

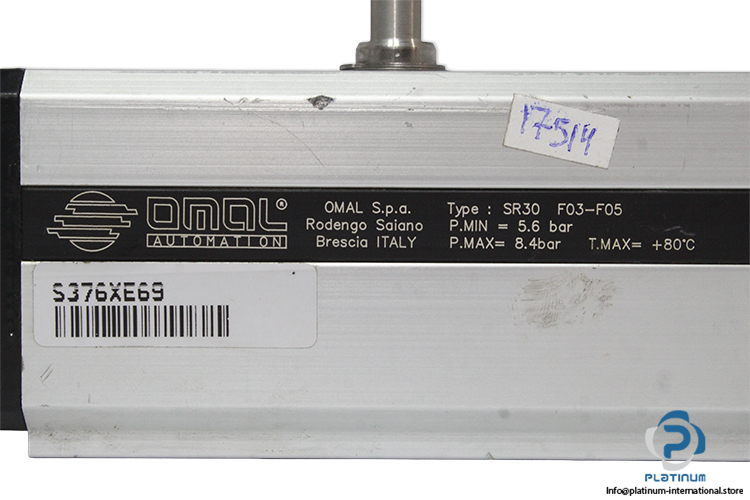

Model: SR30F03-F05
Code: S376XE69
Application:
Pneumatic actuation of industrial valves and rotary mechanisms in automation systems, process control installations, and mechanical drive assemblies
Recommendation:
This Omal pneumatic actuator is suitable for systems requiring reliable spring return operation and standardized mounting interfaces. For optimal performance and system integration, it is recommended to use this actuator with compatible pneumatic valves and appropriate Sensors for position feedback and monitoring, available from Platinum International.
| Operating Media | Compressed filtered air, not necessarily lubricated |
| Actuation Type | Spring Return |

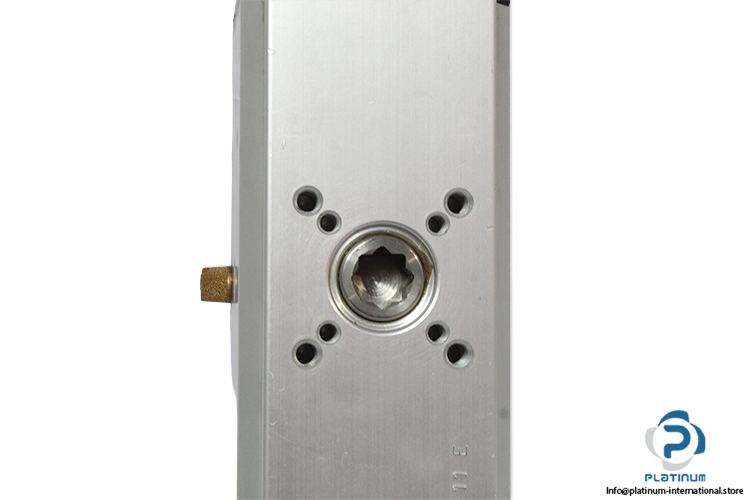

| Mounting Flange | According to DIN/ISO 5211 DIN 3337 F03 “ F05 |
| Pressure Rating | Max 8.4 bar |
| Nominal Pressure | 5.6 bar |
| Temperature Range | -20 to 80 °C |
| Torque | From 15 Nm to 1920 Nm |
| Rotation Angle | 90° |
| Body Material | Aluminum housing |
| Connection | G 1/8 |
