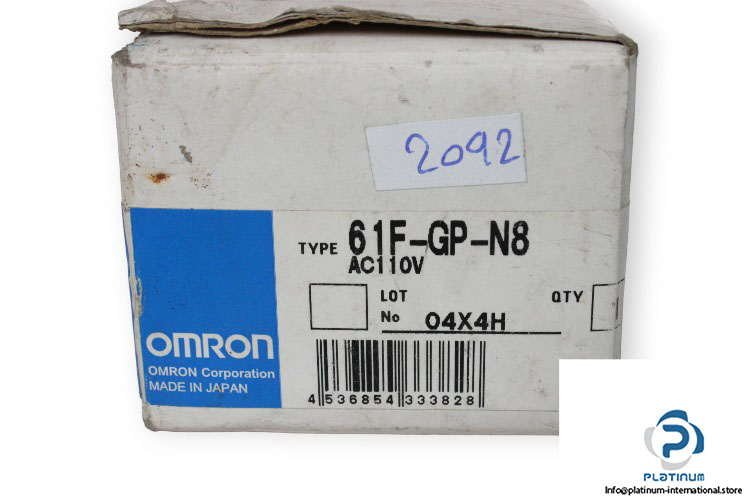

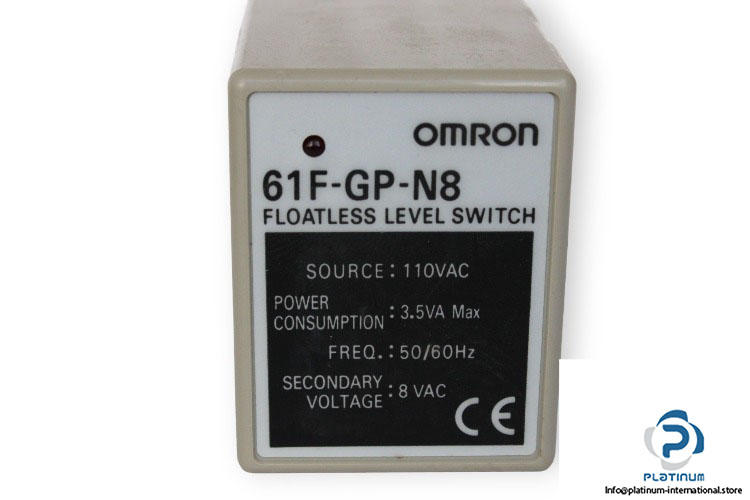

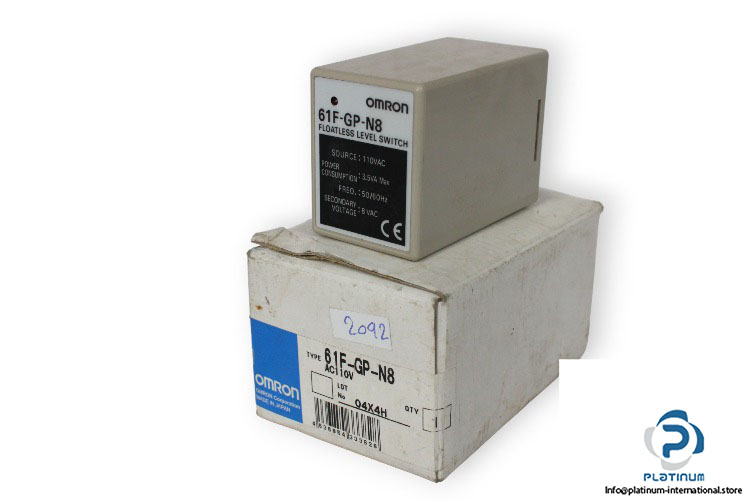

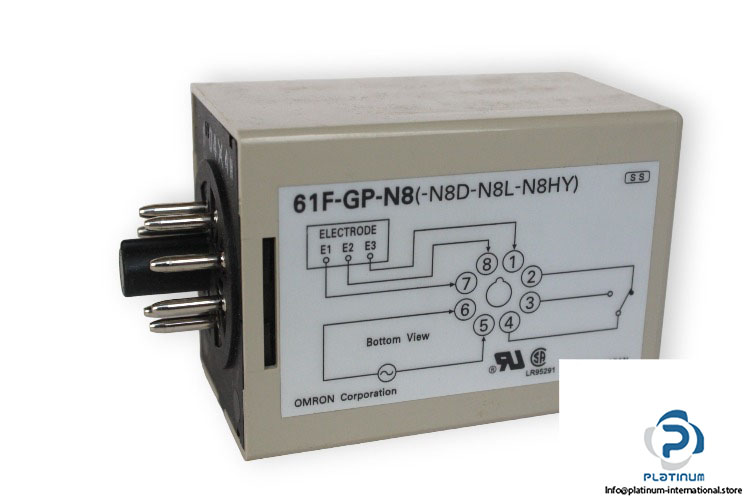

Omron 61F-GP-N8 Conductive Level Controller

Manufacturer: Omron

Type: Conductive Level Controller

Model: 61F-GP-N8

Supply voltage: 110 V AC, 50/60 Hz

Interelectrode voltage: 8 V AC

Interelectrode current: Approx. 1 mA AC max.

Power consumption: Approx. 3.5 VA max.

Response time: Operate: 80 ms max., Release: 160 ms max.

Control output: 1 A, 250 VAC (Inductive load: cosφ = 0.4) / 3 A, 250 VAC (Resistive load)

Cable length: 1 km max.

Operating Temperature: -10°C … +55 °C
