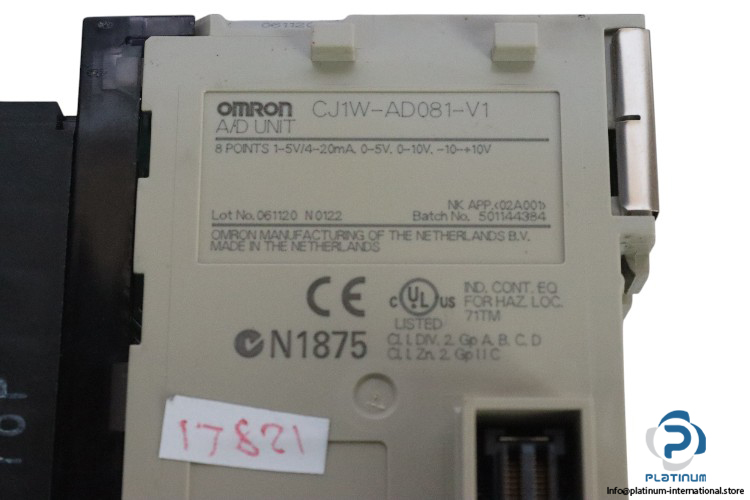

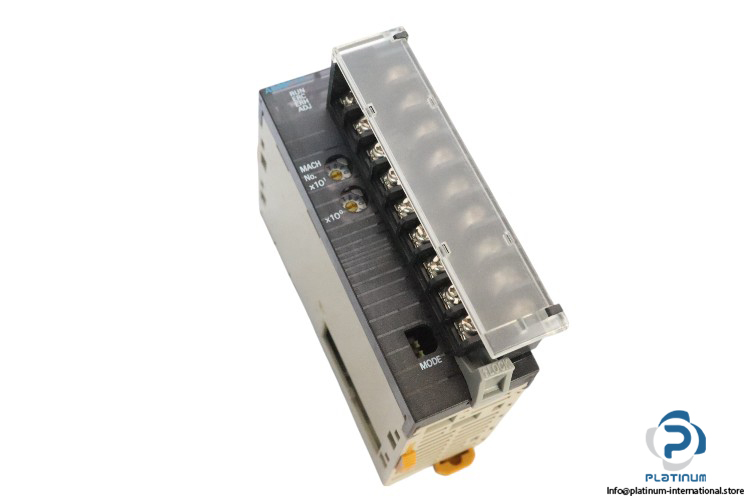

Omron CJ1W-AD081-V1 Analog I/O Unit
The Omron CJ1W-AD081-V1 Analog I/O Unit offers 8 analog inputs, supporting multiple signal ranges such as 1 to 5 V, 0 to 10 V, and 4 to 20 mA, providing precise data exchange for industrial control systems.
Omron CJ1W-AD081-V1 Analog I/O Unit
The Omron CJ1W-AD081-V1 Analog I/O Unit is a high-performance unit designed for precise analog signal input and output management in industrial automation systems. It features 8 analog inputs with a wide range of signal options, providing reliable and flexible communication between various devices in your control system.
- Manufacturer: Omron
- Type: Analog I/O Unit
- Model: CJ1W-AD081-V1
Technical Specifications:
- External Terminals: 18-point detachable terminal block (M3 screws)
- Signal Range: 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA
- Power Consumption: 420 mA max. at 5 VDC
- Maximum Rated Input: Voltage Input: ±15 V, Current Input: ±30 mA
- Number of Analog Inputs: 8
- Dimensions (W × H × D): 31 × 90 × 65 mm
The Omron CJ1W-AD081-V1 Analog I/O Unit is ideal for applications that require multiple analog inputs with a broad range of signals. Its detachable terminal block design and low power consumption make it easy to integrate into existing systems, providing reliable and accurate data exchange for industrial control processes.
