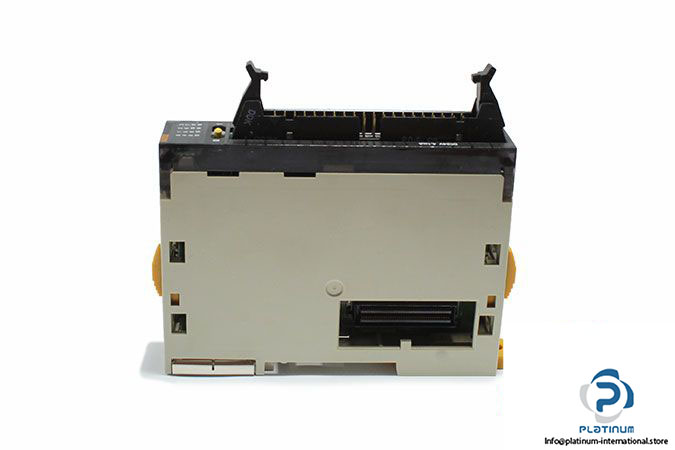

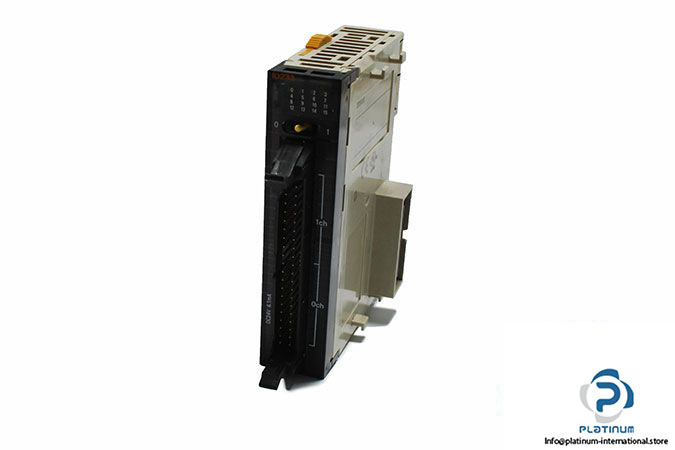

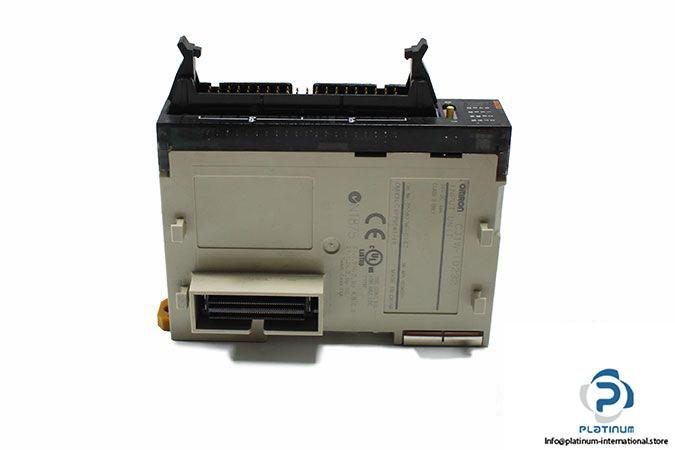

Omron CJ1W-ID232 32-POINT DC Input Unit
New
In stock1 unitReady to ship
PLC Input Unit Omron CJ1W-ID232 32-point DC input unit designed for industrial PLC systems, featuring 24 VDC operation, PNP/NPN compatibility, and reliable digital input processing.
24VDC32AutomationCJ1WCJ1W-ID232ControldcDigitalIndustrialInputModuleNPNOmronPLCPNPPointSeriesSystemUnit
Used
Available on request
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Lot No. | 050827H |
| Code | 0147 |
| Rated Input Voltage | 24 VDC |
| No. of digital inputs (DI) | 32 |
| Rated Input Voltage Range | 20.4 … 26.4 VDC |
| Input Impedance | 5.6 kohm |
| Input Current | 4.1 mA typical (at 24 VDC) |
| Digital input type | PNP/NPN |
| No. of I/O connectors | 1 |
| No. of COM terminals | 4 |
| ON Voltage/ON Current | 19.0 VDC min./3 mA min. |
| OFF Voltage/OFF Current | 5 VDC max./1 mA max. |
| OFF/ON delay | 0-32 ms max. |
| Number of Circuits | 32 (16 points/common, 2 circuits) |
| Insulation Resistance | 20 MO min. |
| Internal Current Consumption | 90 mA max. |
| Dimensions | 90 X 20 X 83.6 mm |
| Condition | New |
| SKU | 975357 |
| Weight | 0,07 |
