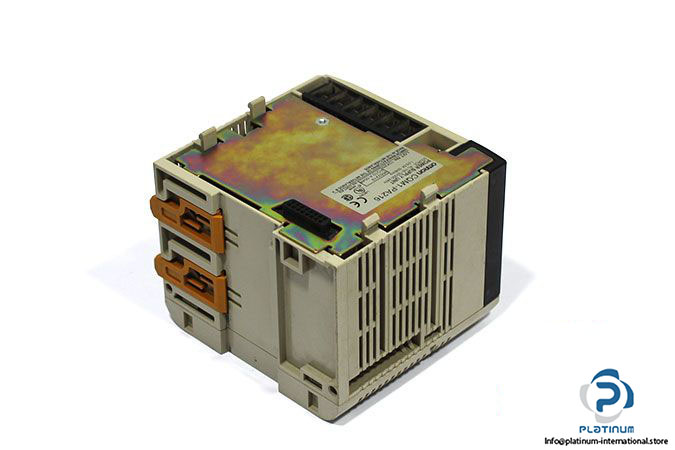

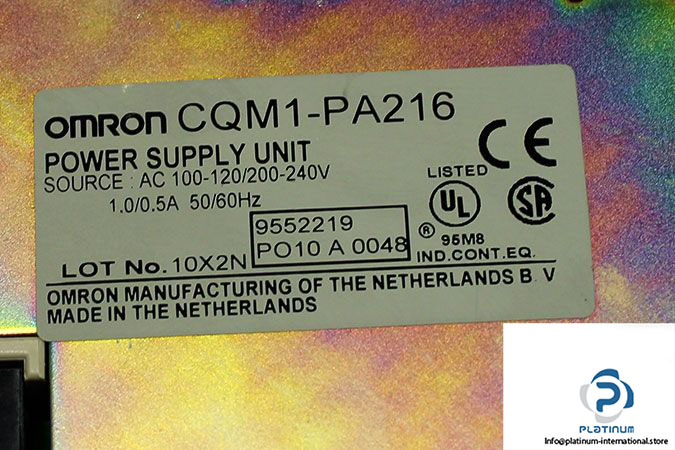

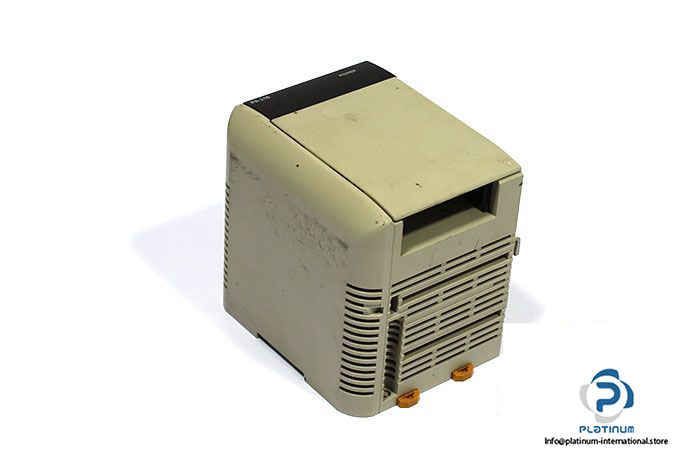

Omron CQM1-PA216 Power Supply Unit

Manufacturer: Omron

Type: Power Supply Unit

Model: CQM1-PA216

Supply Voltage: 100 or 230 VAC (selectable), 50/60 Hz

Operating Voltage Range: 85…132 VAC / 170…264 VAC

Max. Inrush Current: 30 A

Output Capacity: 24 VDC: 0.5 A (30 W)

Operating Frequency Range: 47…63 Hz

Max. Power Consumption: 120 VA

Insulation Resistance: 20 MΩ min.

Noise Immunity: 1,500 Vp-p, pulse width: 100 ns to 1 μs, rise time: 1 ns (via noise simulation)

Humidity: 10% to 90% (with no condensation)

Atmosphere: Must Be Free from Corrosive Gasses

Grounding: Less than 100 Ω

Enclosure Rating: Mounted in a Panel

Ambient Temperature: 0…55 °C

Dimensions: 85 x 110 x 107 mm

Weight: 0.60 kg
