Omron D2SW-P01L1M Sealed Subminiature Basic Switch

Omron D2SW-P01L1M Sealed Subminiature Basic Switch

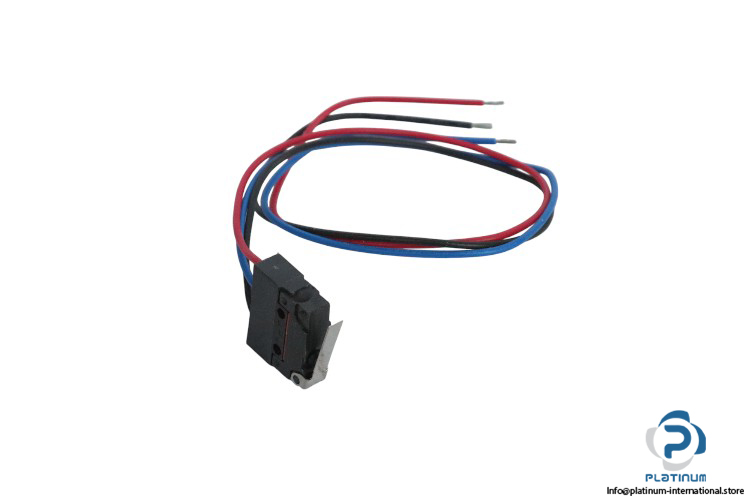

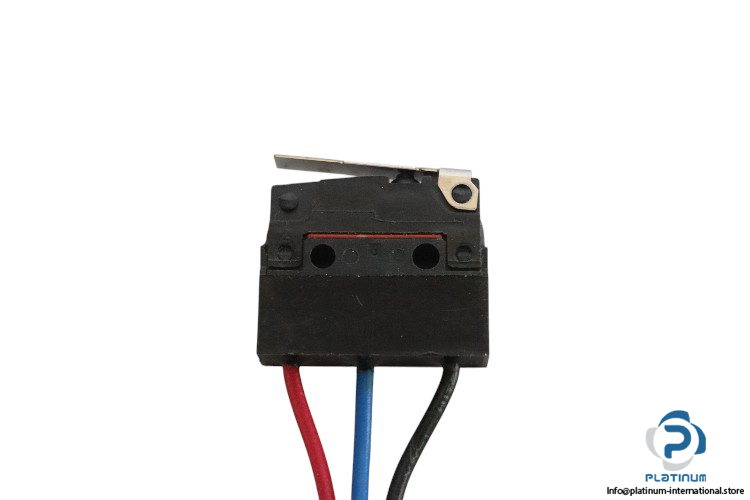

The Omron D2SW-P01L1M Sealed Subminiature Basic Switch is a reliable, high-performance switch designed for various applications requiring precision and durability. With a hinge lever actuator, it operates at a rated voltage of 30 V DC and 125 V AC. The switch is capable of handling a resistive load of up to 0.1 A and offers molded lead wire terminals for easy integration into circuits. With an operating speed range of 0.1 mm to 500 mm/s, the switch provides fast response times in a variety of systems. Its gold alloy contacts ensure low contact resistance, and the switch has a gap of 0.5 mm (standard value) for precise actuation. The D2SW-P01L1M is rated with a degree of protection of IP67, providing excellent resistance to dust and water, making it ideal for harsh environments. It is designed for use in a temperature range of -20 to 70°C, offering reliable performance across a broad range of operating conditions.

• Manufacturer: Omron
• Type: Sealed Subminiature Basic Switch
• Model: D2SW-P01L1M

Technical Specifications:

• Actuator: Hinge lever
• Rated Voltage: 30 V DC, 125 V AC
• Resistive Load: 0.1 A
• Terminals: Molded lead wires
• Operating Speed: 0.1 mm to 500 mm/s (pin plunger models)
• Material: Gold alloy
• Insulation Resistance: 100 MΩ min at 500 VDC
• Contact Resistance: 100 mΩ max (terminal models), 150 mΩ max (molded lead wire models)
• Gap (Standard Value): 0.5 mm
• Degree of Protection: IP67
• Ambient Temperature: -20 to 70°C

The Omron D2SW-P01L1M Sealed Subminiature Basic Switch is ideal for applications where compactness, reliability, and durability are essential. Its gold alloy contacts, sealed construction, and wide operating temperature range make it suitable for demanding environments in industrial and automation systems.
