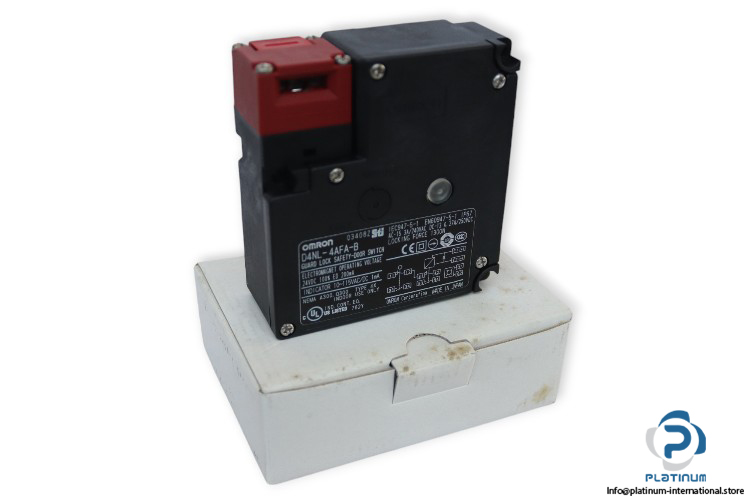

Omron D4NL-4AFA-B Guard Lock Safety Door Switch

Manufacturer: OMRON
Type: Guard Lock Safety Door Switch
Model: D4NL4AFAB
Part No.: 03408Z

Series: D4NL
Rated Operating Voltage: 24 V DC
Current Consumption: 200 mA
Built-in Switch Contact (with Door Open/Closed Detection Switch and Lock Monitor Switch Contacts): 1 Normally Open (NO) / 1 Normally Closed (NC) + 1 Normally Open (NO) / 1 Normally Closed (NC)
Contact Ratings:
AC-15: 240 V, 3 A
DC-13: 250 V, 0.27 A
Indicator: 10 … 115 V AC/DC (Orange LED Indicator)
Door Lock and Release: Mechanical Lock/24 V DC Solenoid Release
Locking Force: 1300 N
Head Mounting Direction: Four Mounting Directions Possible
Release Key Type: Standard (Resin)
Release Key Position: Bottom
Conduit Outlet: M20
Material: Plastic
Protection Class: IP67
Ambient Temperature: -10 … 55 °C
Dimensions: 95 x 88.5 x 35.5 mm
