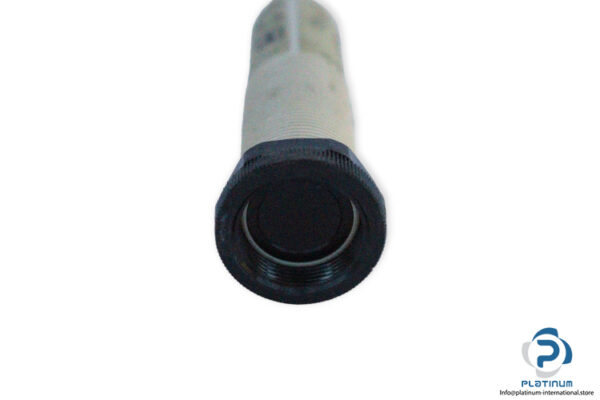

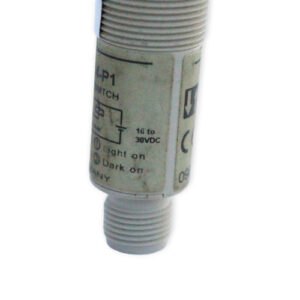

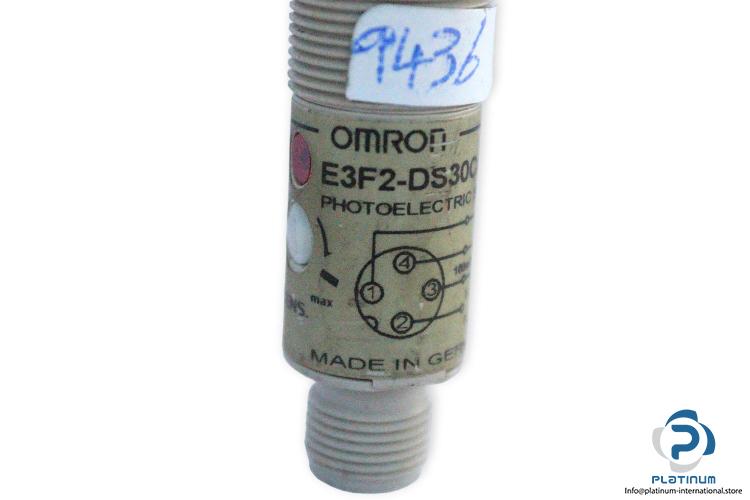

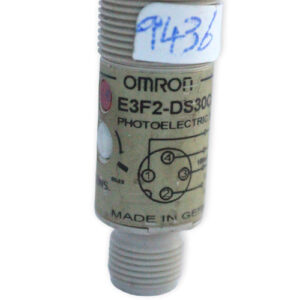

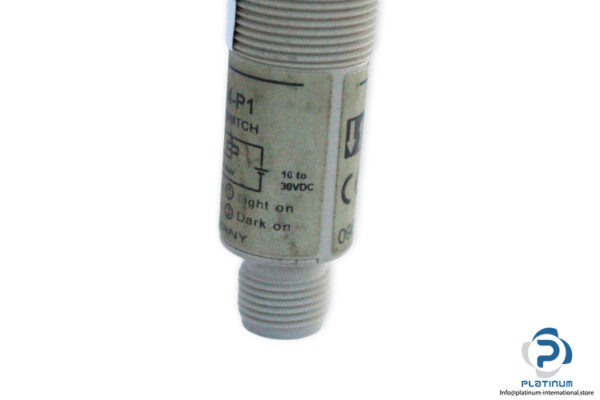

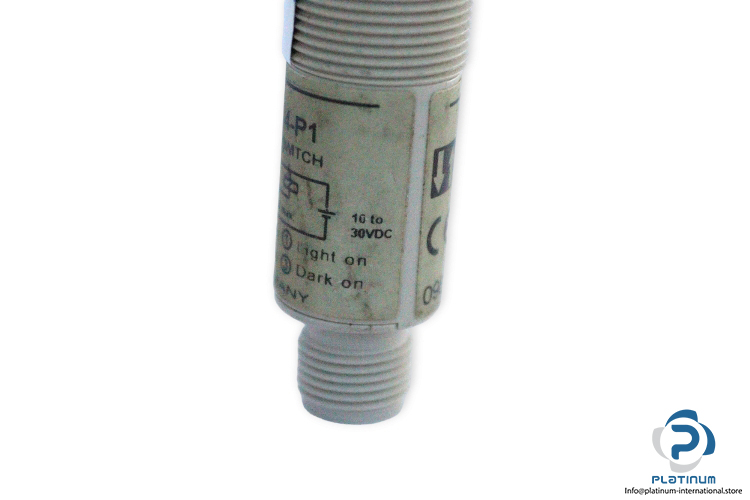

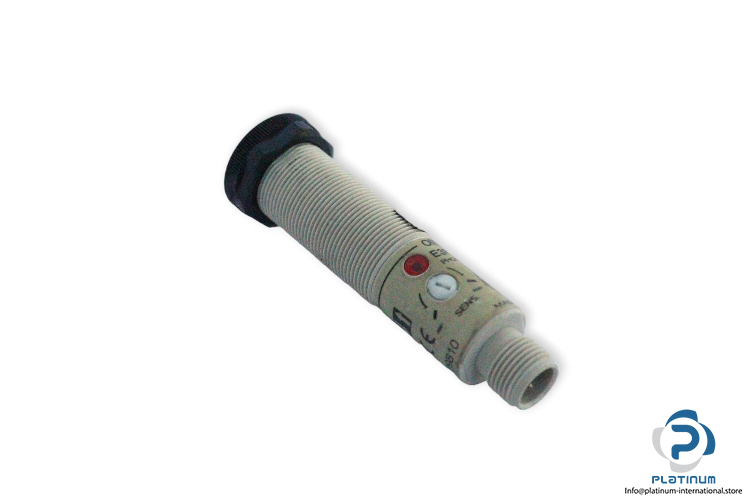

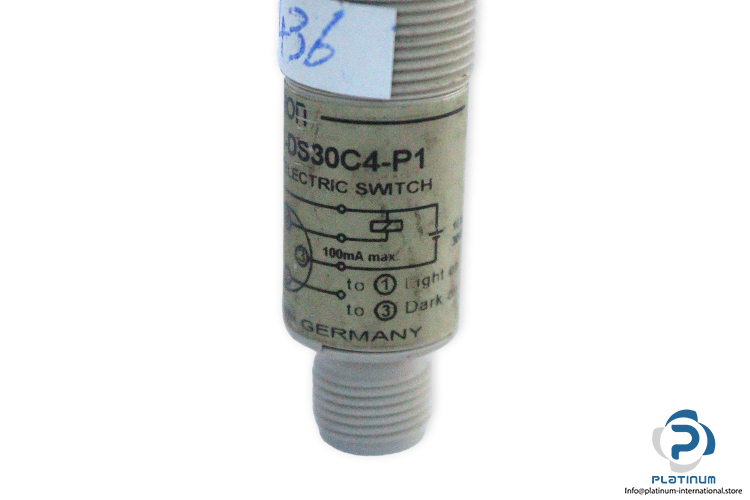

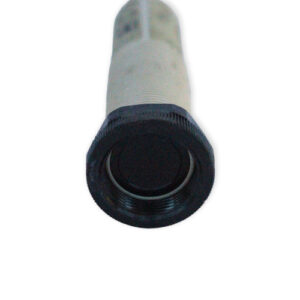

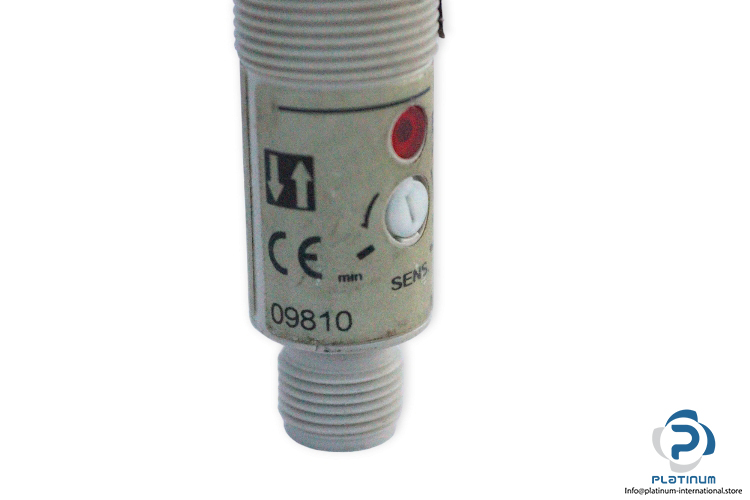

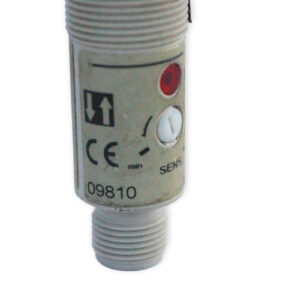

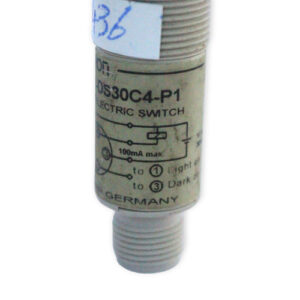

Omron E3F2-DS30C4-P1 Diffuse Reflective Sensor
Manufacturer: OMRON
Type: Diffuse Reflective Sensor
Model: E3F2DS30C4P1
Series: E3F2
Sensing Range: 300 mm
Sensing Method: Diffuse-Reflective
Light Source: Infrared LED
Wave Length: 880 nm
Rated Voltage: 10 … 30 V DC
Current Consumption: 30 mA
Switching Output: NPN
Switching Output Current: 100 mA
Operation Mode: Light-ON / Dark-ON (Selectable)
Indicators: Light Incident / Power Indicator for Light Source (Red)
Connection: Connector M18, 4-Pin
Material: Plastic
Protection Class: IP67
Temperature: -25 … 55 °C
Length, Diameter: 73, 18 mm
