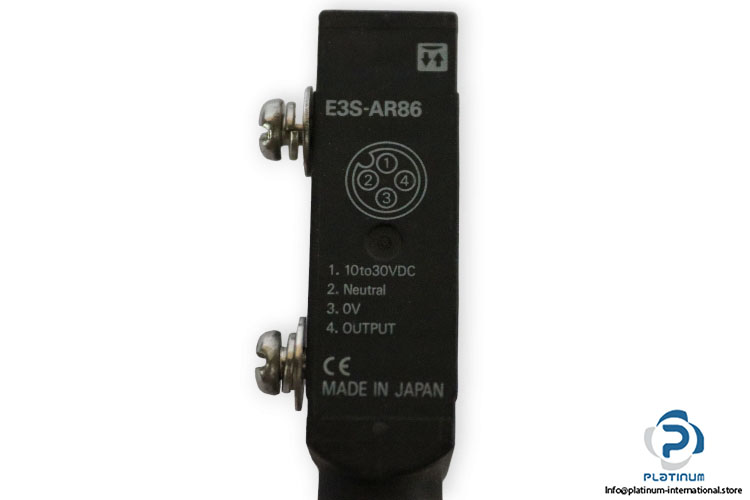

Omron E3S-AR86 Photoelectric Sensor

Manufacture: Omron
Type: Retro-Reflective Photoelectric Sensor
Model: E3S-AR86

Supply voltage: 10 … 30 V DC
Method of detection: Retroreflective
Current consumption: 30 mA max
Response time: 0.5 ms max. ON, 0.5 ms max. OFF
Connections: M12 threaded connector, 4 pin
Mounting: Vertical
Operation mode: Light-ON/Dark-ON operation, switch selectable
Light source: Pulse modulated red LED (700 nm)
Sensing range: 0.1 … 2m
Output: PNP
Enclosure rating IEC: IP67; NEMA 4X, 6
Ambient operating temperature: -25 … 55°C
Dimensions: 21 x 50 x 3.6 mm
