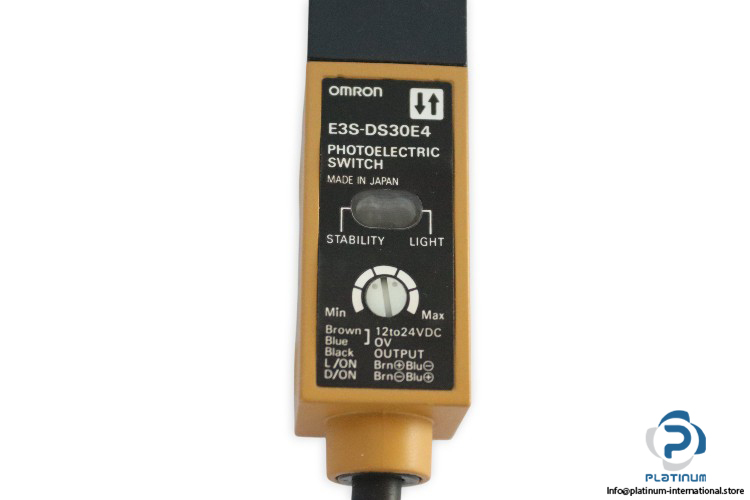

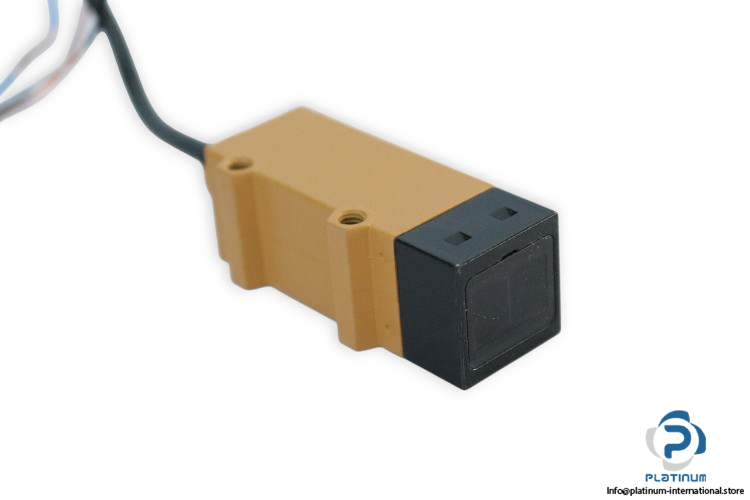

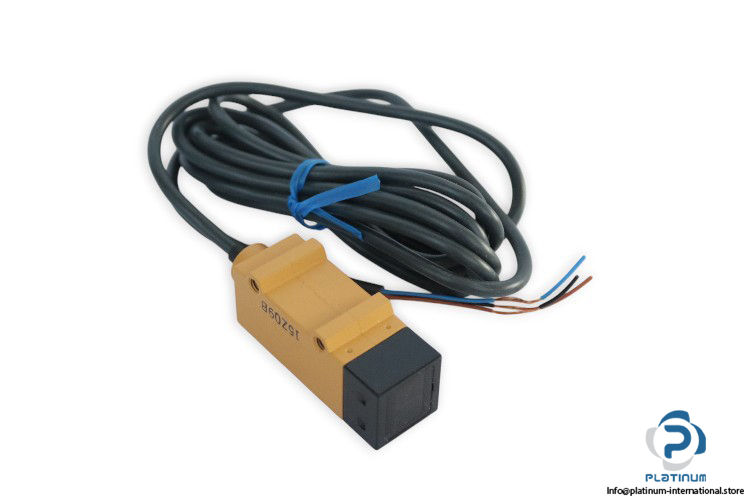

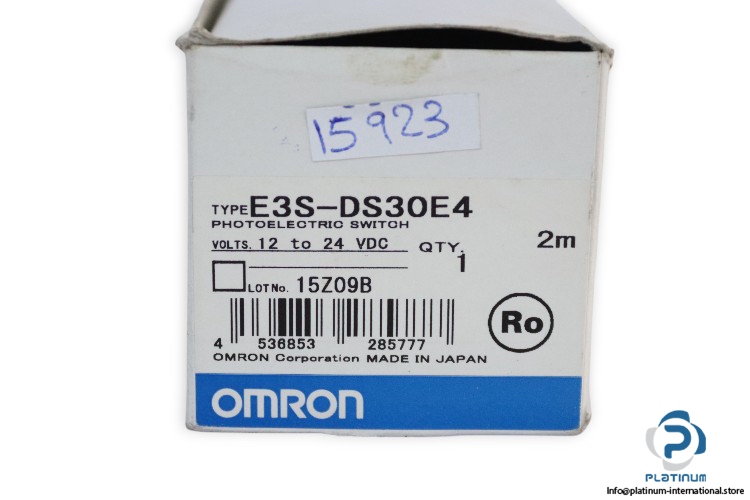

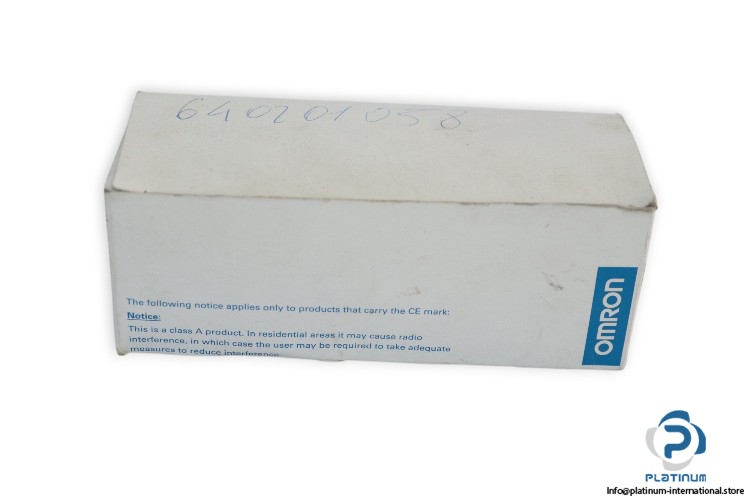

Omron E3S-DS30E4 Diffuse Reflective Sensor
New
In stock1 unitReady to ship
Diffuse Reflective Sensor OMRON diffuse reflective sensor with 300 mm sensing range, infrared LED, NPN output, and IP67 protection, designed for industrial object detection and automation.
Used
In stock 45,00$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 15Z09B |
| Series | E3S |
| Sensing Range | 300 mm |
| Light Source | Infrared LED |
| Operating Voltage | 12 … 24 V DC |
| Rated Load Current | 40 mA |
| Switching Output | NPN |
| Operation Mode | Light-ON/Dark-ON (Selectable) |
| Connection Type | Cable 3-Wires, 2 m |
| Housing Material | Zinc Die-Cast |
| Protection Class | IP67 |
| Operating Temperature | -25 … 55 °C |
| Dimensions | 67 x 20 x 23 mm |
| Condition | New |
| SKU | 1034895 |
| Weight | 0,13 |
