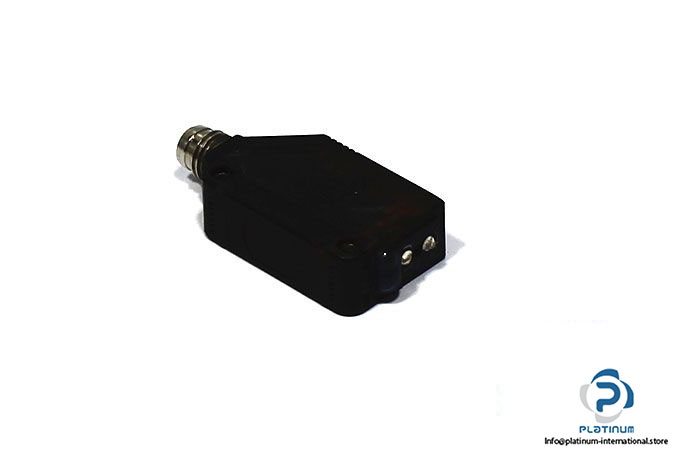

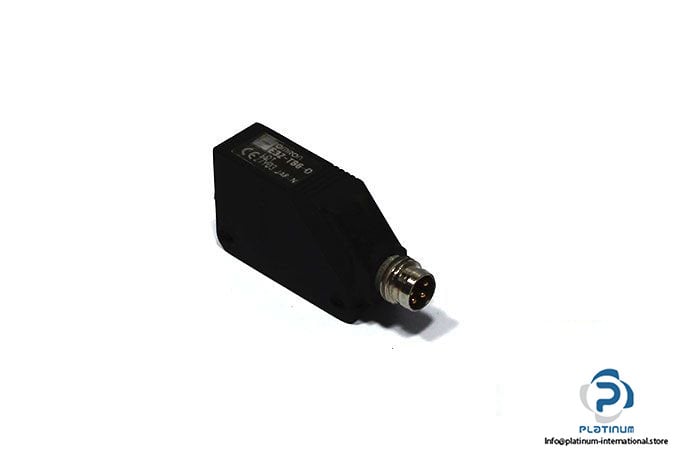

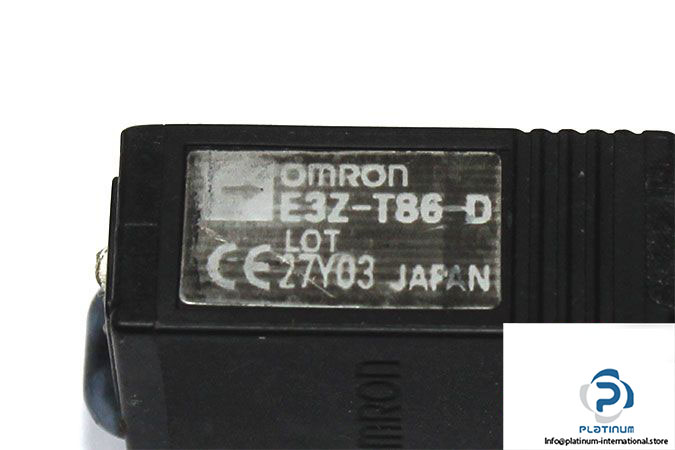

Omron E3Z-T86-D Photoelectric Sensor

Manufacturer: Omron

Type: Photoelectric Sensor

Model: E3Z-T86-D

Power Supply Voltage: 12…24 VDC

Max. Current Consumption: 20 mA

Max. Response Time: 1 ms

Directional Angle: 3…15°

Sensing Method: Through-Beam

Sensing Distance: 15 m

Sensitivity Adjustment: One-Turn Adjustment

Electrical Design: PNP

Connection Method: M8 Connector Models / 4-pin

Light Source: Infrared LED (870 nm)

Operation Mode: Light-ON/Dark-ON selectable

Protection Class: IP67

Operating Temperature: -25 … 55°C

Material: Polybutylene Terephthalate

Weight: 10 g
