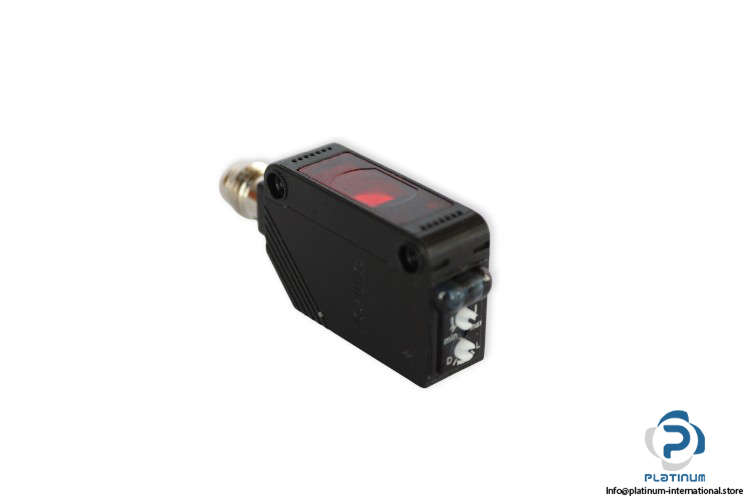

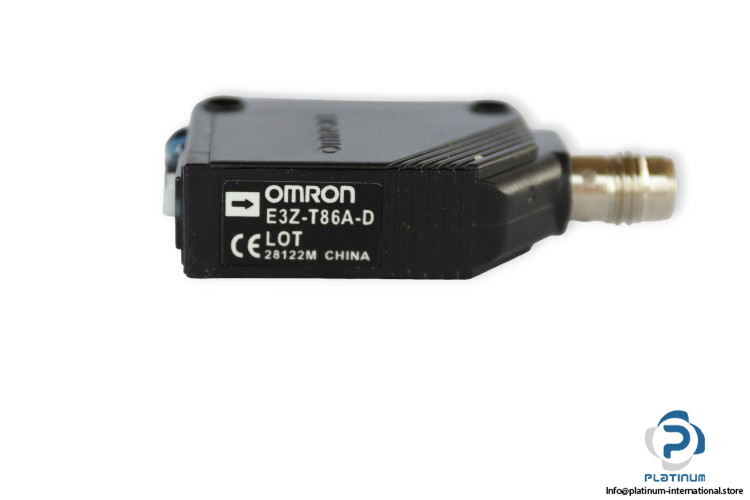

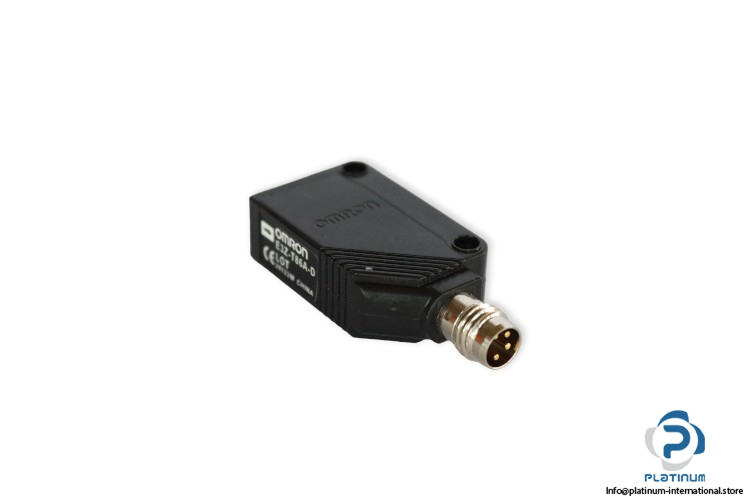

Omron E3Z-T86A-D Receiver Photoelectric Sensor

Manufacture: Omron
Type: Receiver Photoelectric Sensor
Model: E3ZT86AD
Part No.: 28122M
Series: E3Z

Power Supply Voltage: 12 … 24 V DC
Max. Current Consumption: 20 mA max
Max. Response Time: 1 ms
Sensing Method: Through-Beam
Sensing Distance: 10 m
Electrical Design: PNP
Connection Method: Connector (M8, 4 pins)
Light Source: Red LED (660 nm)
Operation Mode: Light-ON/Dark-ON selectable
Protection Class: IP67
Operating Temperature: -40 … 55°C
Material: Case: Polybutylene terephthalate (PBT), Lens: Modified polyacrylate
Dimensions: 10.8 x 20 x 31 mm
