Omron E6B2-CWZ1X Rotary Encoder
New
In stock1 unitReady to ship
ROTARY ENCODER
Omron E6B2-CWZ1X rotary encoder provides 2000 P/R resolution with 5 VDC input, line driver output, and robust IP50-rated construction. Ideal for precision industrial feedback systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

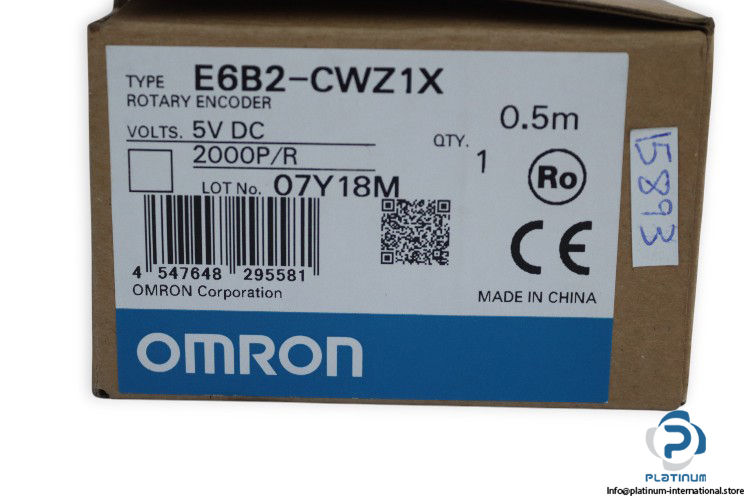

OMRON E6B2-CWZ1X ROTARY ENCODER
Designed for precision motion detection, the Omron E6B2-CWZ1X rotary encoder offers high-resolution feedback and reliable performance in industrial automation environments. With its 2000 P/R resolution and incremental shaft encoding, it ensures accurate position control in compact systems.
Manufacturer: OMRON
Type: Rotary Encoder
Model: E6B2-CWZ1X
Marking Code: 07Y18M
| External Diameter | 40 mm |
| Power Supply Voltage | 5 VDC |
| Max. Current Consumption | 130 mA |
| Encoding Method | Incremental Shaft Model |

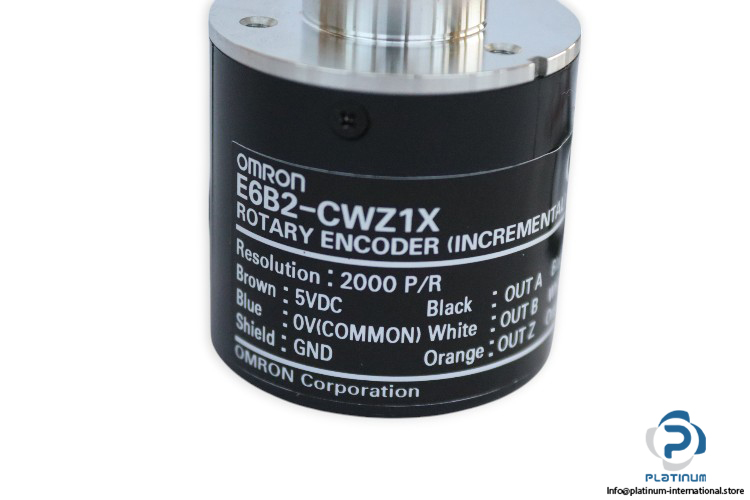

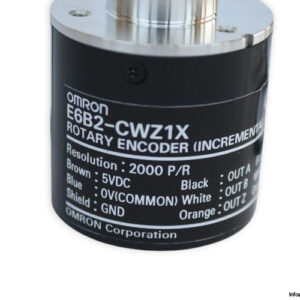

| Resolution | 2000 P/R |

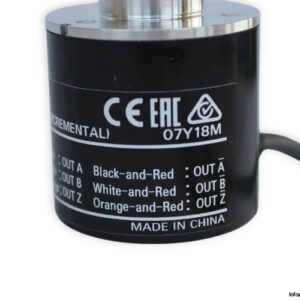

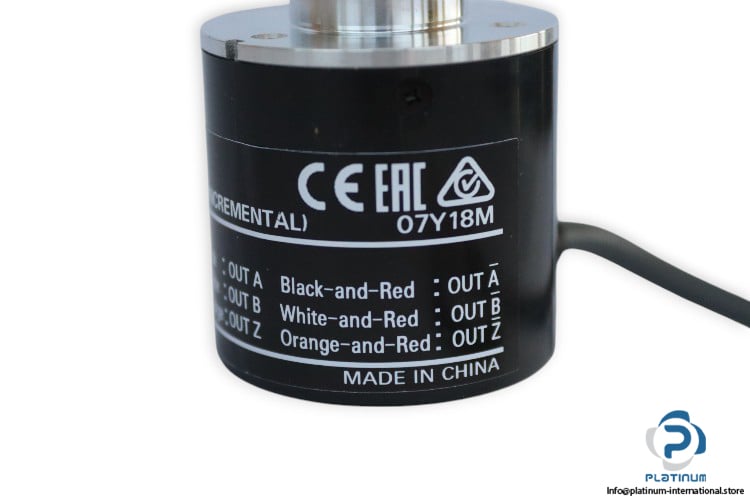

| Output Phases | A, -A, B, -B, Z, -Z |
| Control Output | Line Driver Output |
| Output Current | ±20 mA (High), 20 mA (Low) |
| Output Voltage | 2.5 V min. (High), 0.5 V max. (Low) |
| Max. Response Frequency | 100 kHz |
| Max. Permissible Revolution | 6,000 rpm |
| Rise and Fall Time | 0.1 s max. |

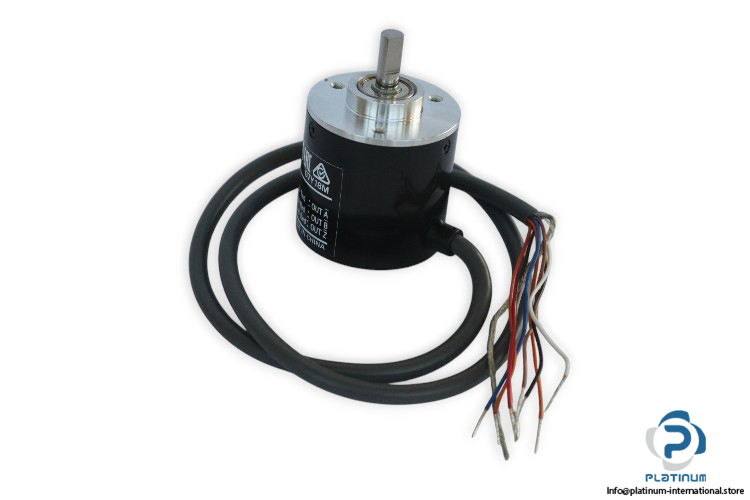

| Connection Method | Pre-wired (2 m Cable) |
| Degree of Protection | IEC60529 IP50 |
| Operating Temperature | 10°C to 70°C |
