Motion Control Rotary Encoders

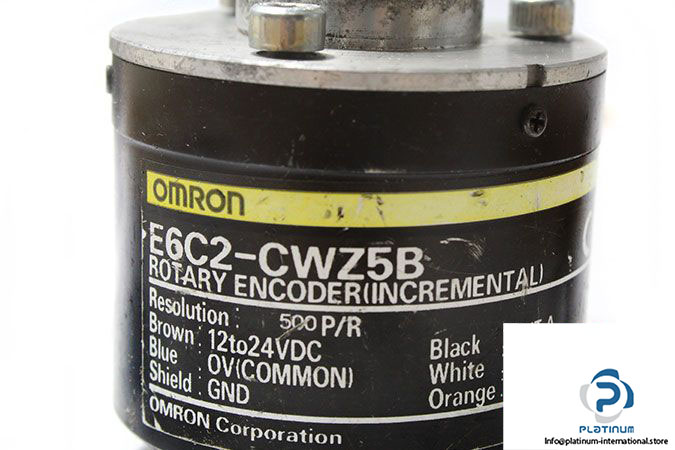

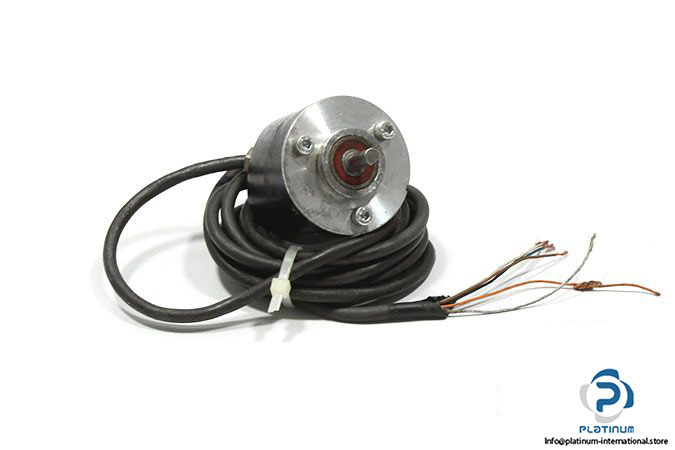

Omron E6C2-CWZ5B Incremental Encoder

Name: OMRON E6C2-CWZ5B INCREMENTAL ENCODER
Brand: OMRON
SKU: 981789
Availability: LimitedAvailability

Used

In stock1 unitReady to ship

INCREMENTAL ENCODER

Omron E6C2-CWZ5B is a durable, high-resolution encoder offering 500 PPR, 12“24 VDC input, and open-collector PNP output. Designed for automation systems with speeds up to 6000 rpm.

Manufacturer

OMRON

SKU

981789

Category

Rotary Encoders

Condition

Used

12“24 500 Automation E6C2-CWZ5B Encoder High-Speed Incremental Industrial Omron Output PNP PPR Rotary Sensor shaft VDC

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

OMRON E6C2-CWZ5B INCREMENTAL ENCODER

The Omron E6C2-CWZ5B is a high-precision incremental encoder built for reliable feedback control in automation systems. With 500 pulses per revolution and durable construction, it's ideal for robust industrial use.

Manufacturer: Omron

Type: Incremental Encoder

Model: E6C2-CWZ5B

Output Capacity:

Shaft Diameter	6 mm
Power Supply Voltage	12 / 24 V DC
Output Configuration	Open-collector output (PNP)
Resolution	500 PPR
Current Consumption	100 mA max.
Applied Voltage	30 VDC max.
Source Current	35 mA max.
Response Frequency	50 kHz
Phase Difference	90°±45° between A and B (1/4 T ± 1/8 T)
Permissible Speed	6000 rpm
Residual Voltage	0.4 V max. (at source current of 35 mA)
Material	Case: Zinc alloy, Main unit: Aluminum, Shaft: SUS420J2
